Nickel 200 Crucible (Ni-200 / CW027) - High Temperature Nickel Crucible

Origin: Baoji, Shaanxi, China
Brand: FRL Metal
Material: pure nickel material (nickel 200)
Density: 8.90 g/cm³
Grade: Ni-200 (CW027 / 2.4066 / UNS N02200)
Purity: 99.6% Min (Ni)
Maximum operating temperature: about 1300 degrees Celsius
Thermal conductivity: Approx. 90.9 W/m Kelvin
Tensile strength: about 380 MPa
Melting point: about 1455 degrees Celsius
Yield strength: about 105 MPa
Coefficient of thermal expansion: 13.3 x 10^-6/degree Celsius
Delivery Time: 7-15 days for stock items; 15-30 days for customized orders
Express: Fedex, TNT, DHL and EMS shipping
Packaging: Standard export packaging: wooden case / carton / pallet, waterproof wrapped
Product Description

Product Introduction

FRL Metal is a professional manufacturer of Nickel 200 (Ni-200 / CW027) crucibles, offering high-quality nickel crucibles for laboratory, industrial, and research applications. Our Nickel 200 crucibles are made from pure nickel material (minimum 99.6% Ni) and are designed to withstand high temperatures up to 1300°C while maintaining excellent chemical stability and corrosion resistance.

Nickel 200 is a commercially pure nickel alloy known for its outstanding resistance to caustic chemicals, excellent formability, and reliable performance at elevated temperatures. Our crucibles are manufactured under strict quality control procedures and comply with international standards to ensure consistent quality and performance.

Product applications

1. High temperature experiment and reactor: Because of its excellent high temperature stability, nickel 200 crucible is often used for experiments and reactions at high temperature, such as metal melting and high temperature synthesis.

2. Chemical corrosion environment: Due to the corrosion resistance of nickel 200, it is widely used in the chemical industry for storing and handling corrosive substances.

3. Electronics industry: Nickel 200 crucible can be used as a container for the preparation of electronic components and semiconductor materials, because its stability at high temperature is very important for some processes.

4. Material research: Nickel 200 crucible can be used for material research and testing at high temperature, which is helpful to understand the performance of materials under extreme conditions.

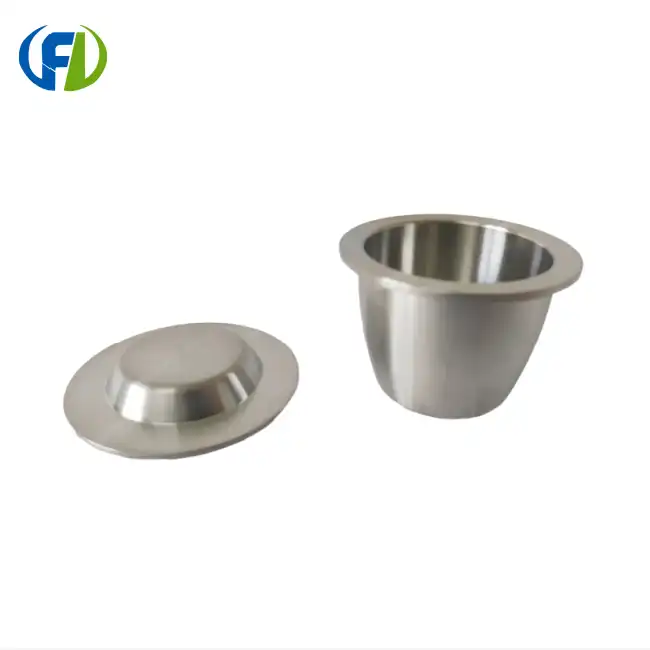

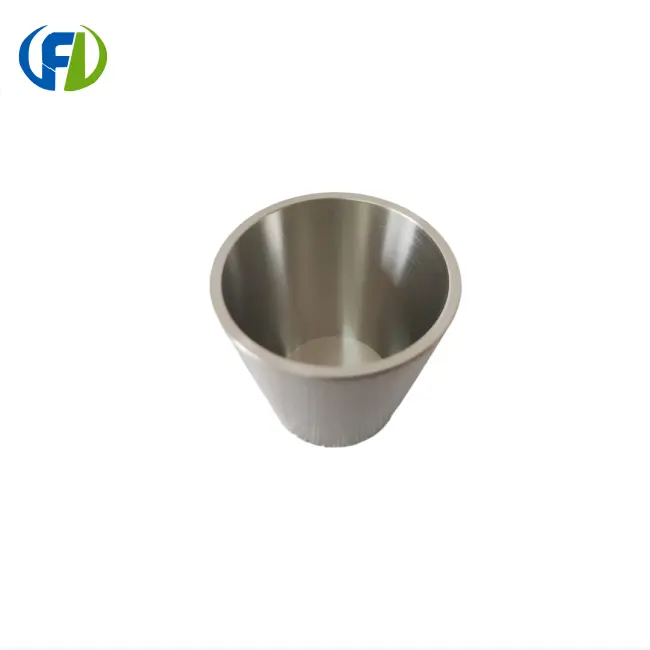

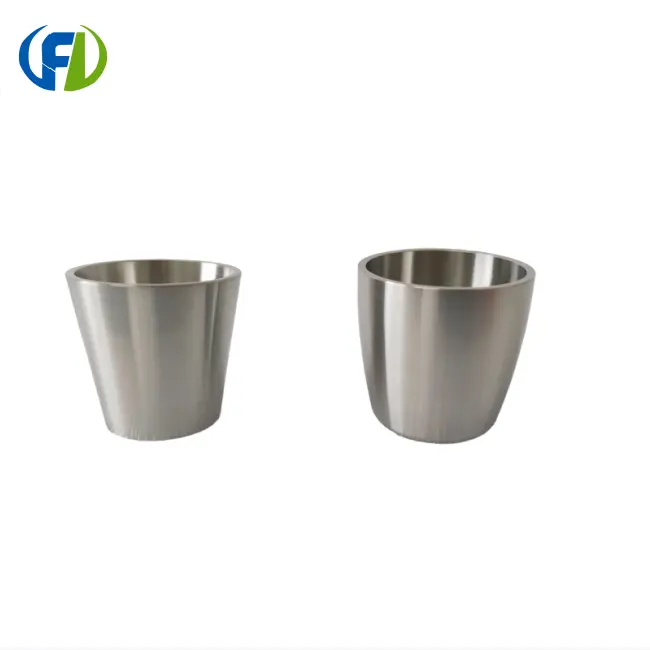

Nickel 200 Crucible Picture display

Ni-200 Nickel Crucible for Laboratory Use​​​​​​​ Nickel 200 Crucible - High Temperature Nickel Crucible Product Ni-200 Nickel Crucible for Laboratory Use



Nickel 200 (Ni-200 / CW027 / UNS N02200) Chemical Composition

Element Symbol   Composition (%)
Nickel Ni   99.6 Min
Iron Fe   0.2 Max
Copper Cu   0.2 Max
Manganese Mn   0.1 Max
Silicon Si   0.1 Max
Sulfur S   0.01 Max
Carbon C   0.01 Max
Total   99.6 Min Ni

Note: Chemical composition may vary slightly depending on the applicable standard (ASTM, EN, JIS, etc.). Please contact us for specific standard requirements.



Advantages of nickel 200 crucible:

1. Corrosion resistance: Nickel 200 crucible has excellent resistance to a variety of chemical corrosive substances.

2. High temperature stability: At high temperature, nickel 200 material remains stable and is not prone to oxidation, deformation or embrittlement.

3. Thermal conductivity: Nickel 200 has good thermal conductivity, which helps to keep the temperature evenly distributed in the crucible.



Why Choose FRL Metal for Nickel 200 Crucibles?

1. 20+ Years Manufacturing Experience

With over a decade of experience in non-ferrous metal processing, FRL Metal has developed deep expertise in manufacturing high-quality nickel crucibles. Our state-of-the-art production facility in Baoji, Shaanxi is equipped with advanced forging, machining, and heat treatment equipment to produce crucibles that meet the most demanding specifications.

2. Strict Quality Control

Every Nickel 200 crucible undergoes rigorous quality inspection including chemical composition analysis, dimensional verification, surface quality check, and performance testing before shipment. We maintain full traceability from raw material to finished product, ensuring consistent quality batch after batch.

3. Customization Capability

We offer full OEM/ODM services for Nickel 200 crucibles. Whether you need custom dimensions, specific shapes, special coatings, or particular purity levels, our engineering team can work with your drawings and specifications to deliver exactly what you need.

4. Competitive Factory Price

As a direct manufacturer (not a trading company), we eliminate middleman markups and offer you the most competitive factory-direct pricing. Combined with our efficient production processes, you get premium quality nickel crucibles at the best value.

5. Global Service & Fast Delivery

We export to over 30 countries worldwide and maintain stock of popular sizes for immediate shipment. Our experienced export team handles all documentation, customs clearance, and logistics to ensure your order arrives on time and in perfect condition.



FAQ

Q1: What is the difference between Nickel 200 and Nickel 201 crucibles?

A: Both Nickel 200 and Nickel 201 are commercially pure nickel grades. The main difference is carbon content: Nickel 200 has a maximum carbon content of 0.15%, while Nickel 201 has a maximum of 0.05% (ultra-low carbon). Nickel 201 is preferred for high-temperature applications where carbide precipitation could be problematic. Both grades offer excellent corrosion resistance and are suitable for crucible applications.

Q2: What is the maximum operating temperature for a Nickel 200 crucible?

A: Nickel 200 crucibles can operate continuously at temperatures up to approximately 1300°C (2372°F) in air. However, prolonged exposure above 800°C may cause oxidation and grain growth, which can affect the crucible's lifespan. For optimal performance and extended service life, we recommend operating below 1100°C when possible.

Q3: Is Nickel 200 crucible compatible with molten glass?

A: Nickel 200 has good resistance to many molten metals and alloys, but it is not recommended for direct contact with molten glass containing significant amounts of iron or copper oxides, as nickel can dissolve in certain glass melts. For glass processing applications, we recommend consulting our technical team to determine the most suitable crucible material.

Q4: Can you customize the size and shape of Nickel 200 crucibles?

A: Yes, we offer full customization services. We can manufacture Nickel 200 crucibles in various sizes, shapes (round, square, rectangular, etc.), and specifications according to your drawings or samples. Our minimum order quantity for customized products is flexible - please contact us for details.

Q5: Do you provide quality certificates with each shipment?

A: Yes, every shipment includes a Mill Test Certificate (MTC) / Certificate of Analysis (COA) confirming the chemical composition and mechanical properties, along with our ISO 9001:2015 quality certification.

Q6: What is your sample policy for Nickel 200 crucibles?

A: We can provide samples for evaluation. Sample availability depends on the specific size and specification requested. Please contact our sales team for sample pricing and availability. Bulk orders placed within 3 months of sample approval may be eligible for sample cost credit.
