Nitinol Wire 0.1mm Nickel Titanium Shape Memory Alloy Wire

Origin: Baoji, Shaanxi, China
Brand: FRL Metal
Density: 6.45 g/cm³
Diameter: 0.1 mm (customizable from 0.025 mm to 10 mm)
Certification: ISO 9001:2015
Delivery time: 7-15 days
Payment terms: T/T
Export port: Any port in China
Express: Fedex, TNT, DHL and EMS shipping
Product Description

Detailed Product Description

Nitinol Wire 0.1mm – High-Performance Nickel Titanium Alloy Wire

Nitinol wire 0.1mm is a precision-engineered nickel titanium (NiTi) shape memory alloy wire manufactured by FRL Metal. Composed of approximately 55–56% nickel and the balance titanium, this ultrafine wire exhibits two extraordinary properties: the shape memory effect and superelasticity. When deformed at low temperature, Nitinol wire returns to its original shape upon heating above its transformation temperature. In its superelastic state, it can withstand strains of up to 8% without permanent deformation, making it ideal for demanding medical, aerospace, and industrial applications.

Produced in accordance with ASTM F2063 and GB/T 24627 standards, FRL Metal’s 0.1mm Nitinol wire is available in multiple surface finishes including black oxide, light oxide, polished, and pickled conditions. The wire can be supplied in superelastic (SE), cold drawn (CW), or annealed temper, with customizable Austenite Finish (Af) temperatures ranging from -10°C to 90°C to suit specific application requirements.

With a diameter tolerance of ±0.01 mm to ±0.05 mm, excellent corrosion resistance superior to medical-grade stainless steel, and a fatigue life exceeding 10⁷ cycles, our 0.1mm Nitinol wire delivers consistent performance in critical applications such as cardiovascular stents, orthodontic archwires, micro-actuators, and precision sensors.

Field New Value
Product name Nitinol Wire 0.1mm
Density 6.45 g/cm³
Diameter 0.1 mm (customizable from 0.025 mm to 10 mm)
Surface Black oxide / Light oxide / Polished / Bright / Pickled (customizable)
Material Nickel Titanium Alloy (NiTi)
Temper/Condition Superelastic (SE) / Cold Drawn (CW) / Annealed / Shape Memory
Tolerance ±0.01 mm to ±0.05 mm (or per customer requirement)
Standard ASTM F2063, GB/T 24627, GB/T 39989, Q/XB1516
Af Temperature -10°C to 90°C (customizable per application)
Length Customizable (straight, coil, or on spool)

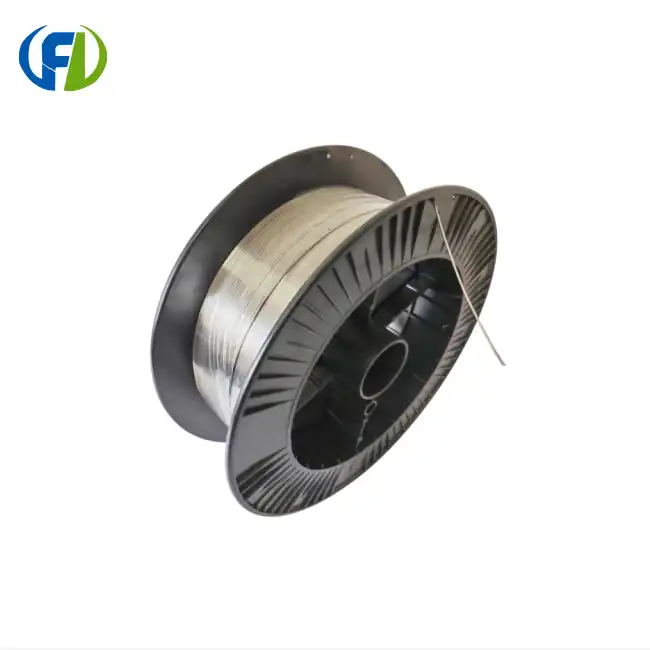

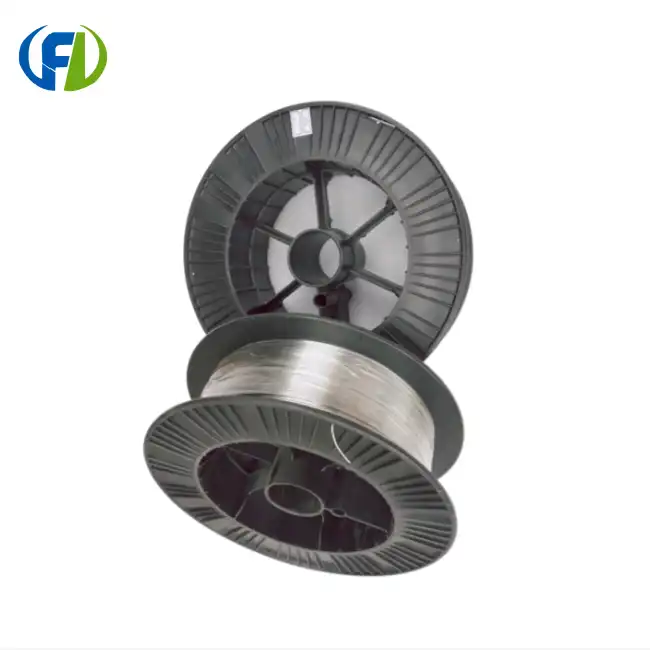

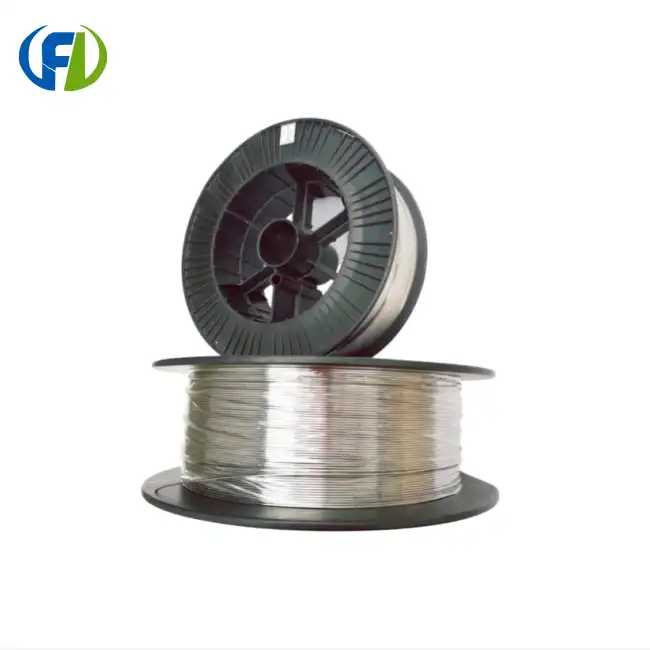

Nitinol Wire 0.1 Mm Picture display

Nitinol Wire 0.1 Mm price Nitinol Wire 0.1 Mm suppliers Nitinol Wire 0.1 Mm factory shape memory Nitinol Wire 0.1mm

Chemical Composition Table

Element Nickel (Ni) Titanium (Ti) Carbon (C) Hydrogen (H) Oxygen (O) Nitrogen (N)
Content (wt%) 55.4% – 56.2% Balance ≤ 0.05% ≤ 0.005% ≤ 0.05% ≤ 0.05%

Advantages / Features Section

Why Choose Freelong Nitinol Wire 0.1mm?

• Shape Memory Effect: Returns to its pre-set shape when heated above the transformation temperature, enabling smart actuation and self-deploying mechanisms.

• Superelasticity: Withstands up to 8% recoverable strain without permanent deformation, ideal for flexible medical devices and dynamic applications.

• Biocompatibility: Non-toxic and tissue-compatible, suitable for surgical implants, orthodontic wires, and cardiovascular devices.

• Corrosion Resistance: Superior to medical-grade stainless steel in harsh environments including bodily fluids, seawater, and chemical media.

• High Fatigue Life: Endures over 10⁷ loading cycles, ensuring long-term reliability in cyclic applications.

• High Damping Capacity: Damping characteristics up to 10 times higher than conventional springs, reducing vibration and noise.

• Customizable Af Temperature: Transformation temperature adjustable from -10°C to 90°C to match specific operating conditions.

• Precision Manufacturing: Diameter tolerance as tight as ±0.01 mm, with multiple surface finish options available.



Applications of Nitinol Wire 0.1mm

Medical & Biomedical - Cardiovascular stents and stent frames - Orthodontic archwires and endodontic files - Minimally invasive surgical instruments and guidewires - Embolic filters, clot retrievers, and heart valve frames - Orthopedic implants and bone healing devices

Electronics & Robotics - Thermal and electrical micro-actuators - Micro-switch components and relays - Temperature sensors and responsive control devices - MRI-compatible actuator mechanisms

Aerospace & Automotive - Vibration dampers and structural damping systems - Adaptive aerodynamic surfaces and morphing structures - Lightweight couplings and energy-absorbing connectors

Consumer & Industrial - Eyeglass frames and mobile phone antennas - Smart textiles and shape-adaptive components - Precision springs and damping elements - Research prototypes and experimental materials



FAQ Section

1. What is Nitinol wire 0.1mm?

Nitinol wire 0.1mm is an ultrafine nickel titanium (NiTi) shape memory alloy wire with a diameter of 0.1 millimeters. It exhibits unique shape memory and superelastic properties, allowing it to return to its original shape after deformation when heated or unloaded.

2. What are the main properties of 0.1mm Nitinol wire?

Key properties include the shape memory effect, superelasticity (up to 8% recoverable strain), excellent corrosion resistance, biocompatibility, high fatigue life (up to 10⁷ cycles), and high damping capacity.

3. What standards does your Nitinol wire comply with?

Our Nitinol wire conforms to ASTM F2063, GB/T 24627, GB/T 39989, and Q/XB1516 standards. Custom specifications are also available upon request.

4. What surface finishes are available for 0.1mm Nitinol wire?

Available surface finishes include black oxide, light oxide (golden to brown), polished, bright, and pickled. Custom surface treatments can be arranged per customer requirements.

5. Can the transformation temperature (Af) be customized?

Yes. The Austenite Finish (Af) temperature can be customized within a range of -10°C to 90°C (or wider depending on alloy modification) to suit specific application needs.

6. What is the typical tolerance for 0.1mm Nitinol wire?

Standard diameter tolerance is ±0.01 mm to ±0.05 mm. Tighter tolerances can be achieved upon request for precision applications.

7. What are the common applications of 0.1mm Nitinol wire?

Common applications include cardiovascular stents, orthodontic archwires, surgical guidewires, micro-actuators, temperature sensors, vibration dampers, eyeglass frames, and research prototypes.



About FRL Metal

Baoji FRL New Material Technology Development Co., Ltd is headquartered in Baoji City — known as "China's Titanium Valley." As a professional manufacturer and exporter, we specialize in the production, OEM processing, and global sales of zirconium, titanium, nickel, niobium, tantalum and their alloys.

With years of industry experience, we have earned the trust of numerous clients and strategic partners worldwide. Our products have been authorized by leading enterprises across Australia, Korea, Germany, the United States, the United Kingdom, Malaysia, Central Asia, the Middle East, Taiwan and other regions.

At FRL Metal, quality and service are not just commitments — they are our core values. We strictly adhere to international standards (ASTM, AMS, etc.) and maintain ISO 9001 certification throughout our production process. Every batch undergoes rigorous testing to ensure it meets or exceeds customer specifications.

Whether you need standard products or custom solutions, our experienced team is ready to provide professional support from inquiry to delivery. We look forward to building a successful partnership with you.
