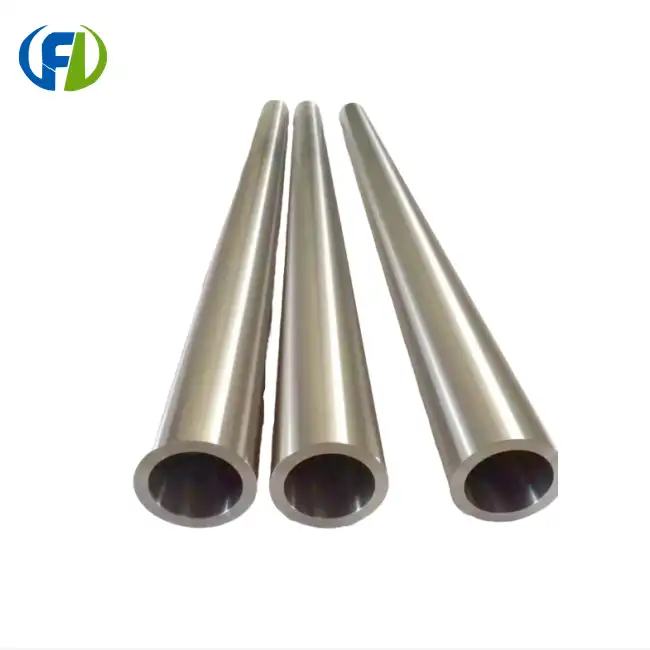

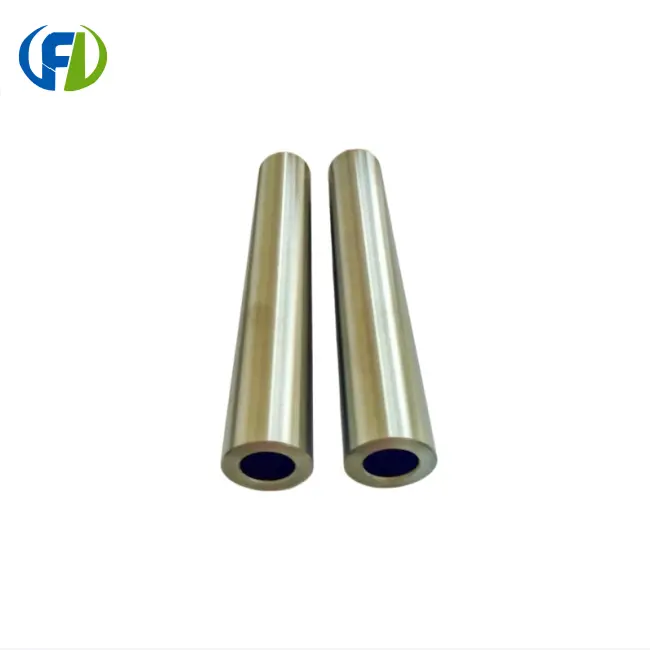

Niobium tube (Nb1 / RO4200) is a high-purity refractory metal tube product manufactured by FRL Metal. With a purity of ≥99.95% niobium content, our tubes meet ASTM B394 standard specifications and are produced in both seamless and welded forms.
Niobium is a soft, ductile refractory metal with a melting point of 2,468°C, making it suitable for extreme high-temperature applications. It exhibits excellent corrosion resistance, outstanding ductility at room and elevated temperatures, and a low thermal neutron absorption cross-section. Niobium is also widely used as a superconductor material, particularly in the fabrication of superconducting radio-frequency (SRF) cavities for particle accelerators.
FRL Metal produces niobium tubes in outer diameters from 1mm to 200mm, with wall thicknesses starting at 0.4mm and lengths up to 3,000mm. Each tube undergoes 100% dimensional inspection, chemical composition verification by OES spectrometry, and surface defect examination. Full mill test certificates (EN 10204 3.1) are provided with every shipment.
| Parameter | Detail |
| Origin | Baoji, Shaanxi, China |
| Brand | FRL Metal |
| Product Name | Niobium Tube / Niobium Pipe |
| Material Grade | Nb1 / RO4200-1 (UNS R04200) |
| Standard | ASTM B394 |
| Purity | ≥ 99.95% Nb |
| Density | 8.57 g/cm³ |
| Outer Diameter (OD) | 1mm – 200mm (custom available) |
| Wall Thickness (WT) | 0.4mm – 10mm (custom available) |
| Length | Up to 3,000mm (custom cut-to-length) |
| Manufacturing Type | Seamless tube / Welded tube |
| Surface Finish | Pickled, polished, bright annealed |
| Temper | Annealed (soft) / Stress-relieved |
| Certification | ISO9001 |
| MOQ | 1 kg (negotiable) |
| Delivery Time | 5–7 days (stock), 15–20 days (custom) |
| Packaging | Plywood case (export standard) |
| Price Terms | FOB, CIF, EXW (negotiable) |
![]() |
![]() |
![]() |
| Parameter | Standard Range | Tolerance |
| Outer Diameter (OD) | 1mm – 200mm | ±0.05mm – ±0.5mm |
| Wall Thickness (WT) | 0.4mm – 10mm | ±10% of WT |
| Length | Up to 3,000mm | ±2mm |
| Straightness | / | ≤ 1.5mm/m |
| Out-of-Roundness | / | ≤ 50% of OD tol. |
| Inner Surface Roughness | / | Ra ≤ 1.6 μm |
| Outer Surface Roughness | / | Ra ≤ 0.8 μm |
Available Tube Types:
- Seamless niobium tube (extruded + drawn)
- Welded niobium tube (strip rolled + TIG welded)
- Capillary tube (OD 1mm–6mm, WT 0.15mm–0.5mm)
- Square / rectangular niobium tube (custom)
- Coiled niobium tube (for continuous applications)
Standard Stock Sizes (OD × WT, mm):
6×1, 8×1, 10×1, 12×1.5, 16×2, 20×2, 25×2.5, 32×3, 38×3, 50×3, 60×4, 76×4, 89×5, 108×5, 133×6, 159×6
Superconductors & Particle Accelerators: High-purity niobium tubes are the primary material for superconducting radio-frequency (SRF) cavities used in particle accelerators (e.g., LCLS, CEBAF, ILC). Nb1 grade niobium with ultra-low impurity levels is essential for achieving maximum superconducting performance at cryogenic temperatures.
Nuclear Industry: Niobium tubes are used in nuclear reactor components and control rod assemblies due to niobium's low thermal neutron absorption cross-section (1.15 barns) and excellent radiation damage resistance. They maintain structural integrity under long-term neutron irradiation.
Aerospace & Defense: High-temperature furnace components, rocket nozzle throats, missile heat shields, and propulsion system parts that require thermal stability above 2,000°C. Niobium maintains mechanical strength at temperatures where most other metals fail.
Chemical Processing: Corrosion-resistant tubing and piping for handling aggressive media including hot acids, alkalis, and salt solutions. Niobium resists corrosion in environments that degrade stainless steel and nickel alloys.
Medical & Healthcare: Surgical implants, dental prosthetics, pacemaker leads, and MRI-compatible components. Niobium's biocompatibility, corrosion resistance, and MRI safety make it ideal for long-term implantable devices.
Electronics & Lighting: Cathode support tubes for high-intensity discharge (HID) lamps, vacuum tube components, and anode/support structures for X-ray tubes. Niobium's high temperature stability and electron emission properties are critical in these applications.
Steel & Metallurgy: As a microalloying element, niobium improves the strength, toughness, and weldability of steel. Niobium tubes serve as feedstock for alloy additions and as crucibles for specialty melting operations.
Jewelry & Consumer Products: High-end spectacle frames, watch cases, and body jewelry. Niobium is hypoallergenic and can be anodized to produce a spectrum of vibrant surface colors without dyes or coatings.
|
Chemistry Composition (%) |
||||||||||||
|
Designation |
Chief component |
Impurities less than |
||||||||||
|
Nb |
Fe |
Si |
Ni |
W |
Mo |
Ti |
Ta |
O |
C |
H |
N |
|
|
Nb1 |
Remainder |
0.004 |
0.002 |
0.002 |
0.004 |
0.004 |
0.002 |
0.07 |
0.015 |
0.005 |
0.0015 |
0.003 |
|
Nb2 |
Remainder |
0.02 |
0.02 |
0.005 |
0.02 |
0.02 |
0.005 |
0.15 |
0.03 |
0.01 |
0.0015 |
0.01 |
|
Grade |
Tensile strength δbpsi (MPa), ≥ |
Yield strength δ0.2, psi (MPa),≥ |
Elongation in 1"/2" gage length, %, ≥ |
|
RO4200-1 RO4210-2 |
18000 (125) |
12000 (85) |
25
|
Every niobium tube order from FRL Metal is packaged with care to ensure safe international delivery:
Step 1: Each tube is individually wrapped in moisture-proof anti-corrosion paper to prevent oxidation and surface contamination during transit.
Step 2: Tubes are then wrapped in heavy-duty kraft paper for additional physical protection against scratches and impact damage.
Step 3: Foam padding and shock-absorbing inserts are placed on all sides inside the plywood case to prevent movement and absorb vibration during shipping.
Step 4: Tubes are securely positioned inside the export-grade plywood case with steel banding and desiccant packets to maintain a dry environment.
Step 5: The sealed plywood case is labeled with product specifications, quantity, weight, handling instructions, and all required export documentation.
For capillary tubes and thin-wall tubes, additional plastic end caps are installed to protect tube ends from deformation. Custom packaging requirements can be accommodated upon request.
Direct Manufacturer in Baoji: Located in Baoji, China's non-ferrous metal hub. We control every production step from raw niobium ingot to finished tube, ensuring consistent quality and competitive factory-direct pricing with no middleman markup.
Ultra-High Purity Material: Our niobium tubes achieve ≥99.95% purity, with tightly controlled impurity levels (Ta, Fe, Si, O, C, H, N) meeting ASTM B394 requirements. For superconductor-grade applications, we offer reactor-grade niobium with residual resistivity ratio (RRR) > 300 upon request.
Full Size Range: From capillary tubes (OD 1mm) to large-diameter pipes (OD 200mm), wall thicknesses from 0.4mm to 10mm. Custom sizes, wall thicknesses, and lengths are available with short lead times.
Seamless & Welded Options: We produce both seamless tubes (for maximum pressure resistance and structural integrity) and welded tubes (for larger diameters and cost-sensitive applications). TIG welding is performed in a controlled inert atmosphere to prevent contamination.
Strict Quality Control: Every batch undergoes chemical composition analysis (OES spectrometer), dimensional inspection (precision gauges and CMM), mechanical property testing (universal testing machine), and surface inspection (visual + eddy current). Mill test certificates (EN 10204 3.1/3.2) are provided with every shipment.
ISO9001 Certified Quality System: Our manufacturing and quality management processes meet international ISO9001 standards.
Flexible MOQ: We accept small trial orders starting from 1 kg. Whether you need a sample for prototyping or a production-scale quantity, we accommodate your needs.
Custom Processing: We offer precision cutting to length, beveling, bending, flaring, and threading services. Tubes can be supplied in straight lengths or coiled form per your specification.
Fast Delivery: Standard sizes in stock ship within 5–7 days. Custom production takes 15–20 days depending on dimensions and quantity. Express shipping (DHL, FedEx) available for small orders; sea freight for bulk.
Global Export Experience: We have exported niobium products to over 30 countries including the USA, Germany, Japan, South Korea, Russia, and India. We handle all export documentation and international logistics.
Free Samples Available: Request a free sample of our niobium tube to evaluate quality before placing a bulk order. Samples ship within 3 working days.
Technical Support: Our metallurgical engineers provide material selection guidance, forming and welding recommendations, and custom specification development for specialized applications such as SRF cavities and nuclear components.
Q1: What is the difference between Nb1 and RO4200 niobium?
A: Nb1 is the Chinese designation (GB/T 1483) for commercially pure niobium. RO4200-1 (UNS R04200) is the ASTM B394 designation. They are essentially the same material with equivalent chemical composition and mechanical properties. Both have ≥99.95% niobium purity.
Q2: What sizes of niobium tubes are available?
A: We produce niobium tubes with outer diameters from 1mm to 200mm, wall thicknesses from 0.4mm to 10mm, and lengths up to 3,000mm. Custom dimensions outside these ranges can be produced upon request for specialized applications.
Q3: Do you offer seamless or welded niobium tubes?
A: Both. Seamless tubes are produced by extrusion and drawing, offering superior pressure resistance and structural uniformity. Welded tubes are produced by roll-forming strip and TIG welding in an inert atmosphere, suitable for larger diameters and cost-sensitive applications.
Q4: Can niobium tubes be welded?
A: Yes. Niobium has excellent weldability using TIG (GTAW) welding in a pure argon or vacuum environment. Oxygen, nitrogen, and carbon contamination must be strictly avoided. We recommend using matching Nb1 filler wire and ensuring surfaces are clean and oxide-free before welding.
Q5: What is the maximum operating temperature for niobium tubes?
A: Niobium tubes can operate continuously up to approximately 1,200°C in vacuum or inert gas environments. In air, oxidation begins above 200°C, so protective coatings or atmospheres are required for high-temperature air service. The melting point of niobium is 2,468°C.
Q6: Is niobium tube suitable for superconductor applications?
A: Yes. High-purity niobium (Nb1 / RO4200) is the standard material for superconducting radio-frequency (SRF) cavities. For accelerator-grade applications, we can provide niobium with residual resistivity ratio (RRR) > 300 and ultra-low impurity levels. Please contact us with your specific RRR and grain size requirements.
Q7: How is the niobium tube packaged for export?
A: Each tube is wrapped in moisture-proof anti-corrosion paper, then kraft paper, cushioned with foam padding, and packed in export-grade plywood cases with desiccant packets. Thin-wall and capillary tubes receive additional end caps and protective sleeves.
Q8: Do you provide mill test certificates (MTC)?
A: Yes. Every shipment includes a full MTC compliant with EN 10204 3.1, detailing chemical composition, mechanical properties, dimensions, and heat number. EN 10204 3.2 certificates with third-party inspection (SGS, BV, TUV) are available upon request.
Q9: What is the minimum order quantity (MOQ)?
A: The standard MOQ is 1 kg for tube products. We also provide free sample pieces (100–200mm length) for quality evaluation. Volume discounts apply for orders above 50 kg.
Q10: Can you produce niobium capillary tubes?
A: Yes. We manufacture niobium capillary tubes with outer diameters from 1mm to 6mm and wall thicknesses from 0.15mm to 0.5mm. These are used in medical devices, analytical instruments, and precision fluid handling systems.
Q11: How quickly can you ship my order?
A: Standard stock sizes ship within 5–7 days. Custom dimensions require 15–20 days depending on size and quantity. We offer DHL/FedEx express shipping for small orders and sea freight for bulk quantities.
Q12: Is niobium tube compatible with MRI environments?
A: Yes. Niobium is non-ferromagnetic and MRI-safe, making it suitable for medical devices and implants used in MRI environments. It does not produce artifacts in MRI imaging.
