TA9 Gr7 Titanium Bar Rod (Ti-0.2Pd)

Origin: Baoji, Shaanxi, China
Brand: FRL metal
Density: 4.51g/cm³
Grade: TA9 Gr7
Standard: ASTM B348 ASTM B381 ASTM F136
Advantages: High strength and corrosion resistance
Certification: ISO9001
Payment Terms: Wire Transfer (T/T)
Delivery time: 7-15 days
Minimum order quantity: 5 kg
Packaging Details: Plywood case
Product Description

TA9 Gr7 Titanium Bar Rod (Ti-0.2Pd) stands out from many materials and has the following significant advantages:

1. Excellent corrosion resistance: TA9 Titanium bar has an extremely high strength-to-weight ratio, which makes it very popular in fields that require lightweight and high-strength materials.

2. Excellent corrosion resistance: Titanium has excellent corrosion resistance, especially in seawater, acidic and alkaline environments.

3. Good biocompatibility: Titanium is non-toxic and harmless to the human body, so it is widely used in the medical field.

4. Excellent high temperature performance: TA9 Titanium bar can still maintain good mechanical properties and stability in high temperature environments.

5. Good processability: Titanium alloy has good processability and can be formed and processed by conventional machining methods.



TA9 Gr7 Titanium Bar Rod (Ti-0.2Pd) Brief Introduction

Property Performance Notes
Corrosion Resistance Exceptional ⭐⭐⭐⭐⭐ Superior to pure titanium and stainless steel; specifically effective against reducing acids, boiling hydrochloric acid, and high-concentration chlorides.
Biocompatibility Excellent ⭐⭐⭐⭐⭐ Non-toxic, non-magnetic, and rejection-free; complies with ASTM B348 ASTM B381 standards.
Mechanical Properties Moderate ⭐⭐⭐ Tensile strength ≥ 40-50 ksi, elongation ≥ 27%; excellent plastic formability.
Physical Properties Lightweight, Low Modulus Density approx. 0.163 lb/in³; non-magnetic and MRI compatible.
Operating Temperature Wide Range Suitable for long-term operation from -300°F to 932°F.

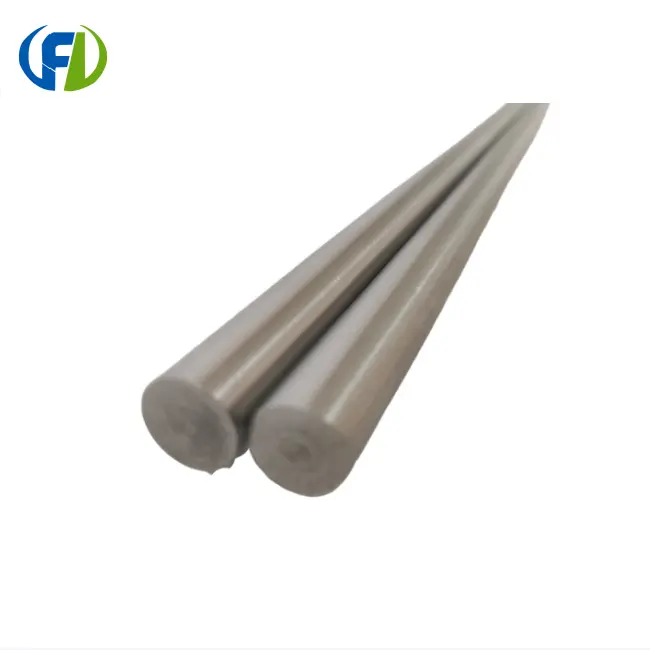

TA9 Gr7 Titanium Bar Rod (Ti-0.2Pd)picture display



Customized TA9(Gr7) Titanium Bar product-650-650 Cheap TA9(Gr7) Titanium Bar
Key differences between Gr7 (TA9) and Gr11 (TA9-1)



Comparison Dimension Gr7 (TA9) Gr11 (TA9-1)
Purity Level Standard Higher (Strictly controlled Fe & O content)
Iron (Fe) Limit ≤ 0.30% ≤ 0.20%
Oxygen (O) Limit ≤ 0.25% ≤ 0.18%
Tensile Strength ≥ 345 MPa ≥ 240 MPa
Elongation ≥ 20% ≥ 24%
Core Advantage Balanced corrosion resistance and standard structural strength Excellent ductility and cold forming capability
Typical Applications Chemical anti-corrosion structural parts, reactors, piping Plate heat exchangers, thin sheets, complex cold-formed parts

What are the applications of TA9 (Grade 7) titanium rods?



TA9 (ASTM Grade 7) titanium rod is a titanium-palladium alloy (Ti-0.2Pd). Its key advantage lies in achieving a significant leap in corrosion resistance through the addition of trace amounts of palladium (Pd), while simultaneously retaining the excellent workability and biocompatibility of commercially pure titanium.
TA9 (ASTM Grade 7) titanium rod is primarily suited for applications demanding exceptional corrosion resistance:
Core applications lie in the chemical and metallurgical industries—the primary "heavy-duty" arena for TA9—where it specifically addresses equipment longevity issues in environments characterized by strong acids and severe corrosion:
Strong acid environments: It is particularly suitable for use with boiling hydrochloric acid, sulfuric acid, and phosphoric acid, as well as reducing acid media containing chloride ions (Cl⁻). While standard commercially pure titanium (such as TA2) is prone to corrosion in these environments, TA9 remains stable.
Critical components: It is used to manufacture reactor agitator shafts, autoclaves, heat exchangers, pumps, valves, centrifuges, separators, piping and fittings, electrolytic cell cathode rods, and more.

TA9 (ASTM Grade 7) is also suitable for applications in healthcare, the petroleum and marine engineering sectors, aerospace, and high-end manufacturing.

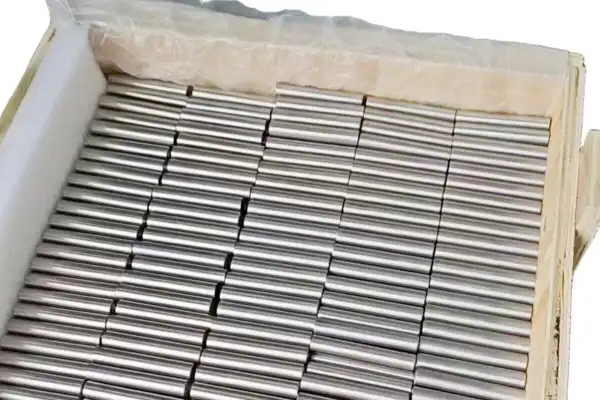

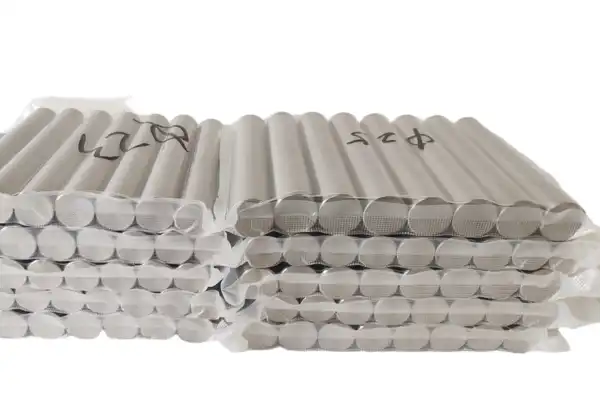

Our Packaging
