TC11 (Ti-6.5Al-3.5Mo-1.5Zr-0.3Si) BT9 Titanium Rod/Bar - High Strength Aerospace Grade

Origin: Baoji, Shaanxi, China
Brand: FRL metal
Density: 4.51 g/cm³
Grade: TC11 Similar to BT9
Diameter: Φ2 mm–Φ60mm Φ30 mm–Φ300 mm
Length: ≤ 12meters or as per request
Standard: ASTM B348, ASTM B381, ASTM F136, ASTM F67
Advantages: High strength and corrosion resistance
Certification: ISO9001
Delivery time: 7-15 days
Packaging Details: Plywood case
Product Description

TC11 Titanium rod Ti-6.5Al-3.5Mo-1.5Zr-0.3Si Introduction

TC11 titanium alloy (Equivalent to BT9/GOST) is a near-alpha Ti-6.5Al-3.5Mo-1.5Zr-0.3Si two-phase titanium alloy developed in China. It combines high strength with 内部技能lent thermal stability, making it one of the most widely used titanium alloys in aerospace engine applications. The alloy offers superior creep resistance, good weldability, and satisfactory formability in the annealed condition.



TC11 Titanium rod Picture display

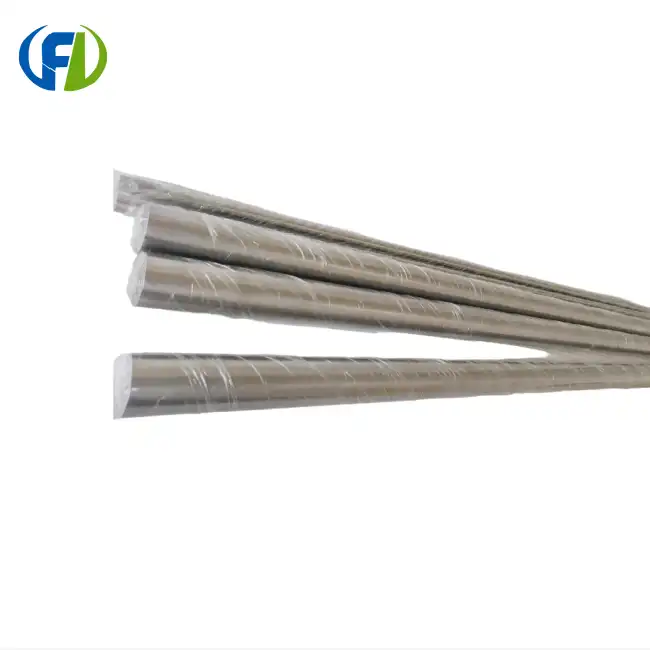

TC11 titanium alloy rod polished surface finish FRL Metal TC11 Ti-6.5Al-3.5Mo-1.5Zr-0.3Si Titanium Rod ASTM B348 FRL Meta TC11 titanium rod end view quality inspection FRL Metal






TC11 Titanium rod Ti-6.5Al-3.5Mo-1.5Zr-0.3Si Chemical Composition

Content

Al

Mo

Zr

Si

Fe

C

N

H

O

Wt%(≤)

5.8~7.0

2.8~3.8

0.8~2.0

0.2~0.35

0.25

0.1

0.05

0.012

0.15


TC11 Titanium Rod Mechanical Properties

Standard

Type

Condition

Dia.

Sampling direction

room temperature



σb/MPa

σp0.2/MPa

δ5/%

ψ/%



GB/T2965

Rod

M

≤90

L

≥1030

900

10

25

GJB494

≤70

L

1030~1225

930

9

30



GJB2218

Rod

M

21~100

L

≥1030

910

9

30

>100~150

L

≥1030

910

8

23




Working conditions of Ti-6.5Al-3.5Mo-1.5Zr-0.3Si TC11 titanium alloy in parts

In the annealed condition, TC11 titanium alloy can be used continuously at temperatures up to 500°C for 500 hours, up to 550°C for 100 hours, and up to 450°C for 1000 hours. In the strengthened (aged) condition, it can be used for components operating up to 500°C for 100 hours or for single-use applications below 700°C. In the strengthened state, it can be used for parts that work for 100h below 500℃ and parts for one-time work below 700℃. In recent years, TC11 titanium alloy is the most used titanium alloy in engines.



Welding  Performance

Ti-6.5Al-3.5Mo-1.5Zr-0.3Si (TC11) titanium alloy has good weldability and can be used in welded structures. Post-weld heat treatment (annealing) is recommended to stabilize the microstructure and mechanical properties of the heat-affected zone.

When Ti-6.5Al-3.5Mo-1.5Zr-0.3Si titanium alloy is welded, some special heat treatment is required to stabilize the microstructure and properties of the metal adjacent to the welded seam. Annealing and air or furnace cooling are generally required after welding.



FAQ

Q1: What is TC11 titanium alloy?
A: TC11 is a near-alpha Ti-6.5Al-3.5Mo-1.5Zr-0.3Si two-phase titanium alloy, equivalent to Russian grade BT9. It offers high strength, thermal stability, and good creep resistance at temperatures up to 500°C.

Q2: What is the difference between TC11 and Ti-6Al-4V (Grade 5)?
A: TC11 contains Mo and Zr as alloying elements in addition to Al, giving it higher strength and better thermal stability than Ti-6Al-4V. TC11 is particularly suited for high-temperature aerospace applications such as engine compressor parts.

Q3: What standards do your TC11 titanium rods comply with?
A: Our TC11 titanium rods are manufactured per ASTM B348 (standard specification for seamless titanium pipes and tubes) and ASTM B381 (specification for titanium and titanium alloy forgings). We can also meet GB/T 2965 and GJB standards upon request.

Q4: What surface finishes are available for TC11 titanium rods?
A: We offer polished, pickled, and black oxide surface finishes for our TC11 titanium rods, depending on the application requirements. Custom surface treatments are also available upon request.
