TC6 (BT3-1) Titanium Bar / Rod

Origin: Baoji, Shaanxi, China
Brand: FRL metal
Density: 4.51g/cm³
Grade: TC6 (BT3-1)
Standard: ASTM B348
Advantages: High strength and corrosion resistance
Certification: ISO9001
Delivery time: 7-15 days
Packaging Details: Plywood case
Product Description

TC6 (BT3-1) Titanium Bar / Rod Ti-6Al-2.5Mo-1.5Cr-0.5Fe-0.3Si Features and Applications

Ti-6Al-2.5Mo-1.5Cr-0.5Fe-0.3Si, commonly known as TC6 titanium alloy (or BT3-1), is a high-performance martensitic alpha-beta titanium alloy. With a beta-stabilizing coefficient of 0.6, it offers an excellent combination of high strength, good thermal stability, and outstanding corrosion resistance. It is widely used in the manufacture of aero-engine compressor discs, blades, aircraft load-bearing structural components, and high-strength fasteners.Our TC6 titanium bars are manufactured per strict aerospace standards. Tensile strength can reach ≥980 MPa, making it highly suitable for demanding applications.

Chemical Composition of TC6 (Ti-6Al-2.5Mo-1.5Cr-0.5Fe-0.3Si )

Element Al Mo Cr Fe Si Ti C N H O
Content (%) 5.5-7.0 2.0-3.0 0.8-2.3 0.2-0.7 0.15-0.40 Balance ≤0.10 ≤0.05 ≤0.015 ≤0.18



TC6 (BT3-1) Titanium Bar / Rod Ti-6Al-2.5Mo-1.5Cr-0.5Fe-0.3Si Hardness



Name d/mm θ/℃ Condition HB
Forged Rod 60 20 Isothermal Annealing 285~340
Double Annealing 340~385

TC6 (BT3-1) Titanium Bar / Rod Ti-6Al-2.5Mo-1.5Cr-0.5Fe-0.3Si Picture display

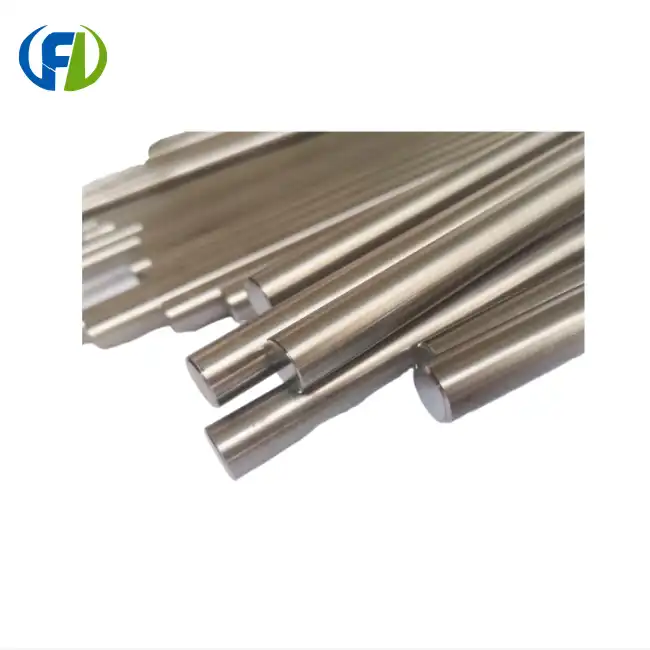

TC6 titanium rod forged surface detail Customized TC6 Titanium rod TC6 Titanium rod ASTM B348



Annealing Specifications for TC6 (BT3-1) Titanium Bar / Rod Ti-6Al-2.5Mo-1.5Cr-0.5Fe-0.3Si

Grade

Stress Relief Annealing

Fully Annealed

Temperature/℃

Holding time/min

Temperature/℃

Holding time/min

TC6 (BT3-1) Titanium Bar / Rod Ti-6Al-2.5Mo-1.5Cr-0.5Fe-0.3Si

550~650

30~120

750~850

60~120



Casting and Smelting Process

Ingots for making Ti-6Al-2.5Mo-1.5Cr-0.5Fe-0.3Si titanium bars and forgings should be smelted in vacuum consumable arc furnaces more than twice. The 0~2 grade small particle titanium sponge should be selected, the oxygen content should not be greater than 0.08%, the molybdenum content of the Al~Mo master alloy should be 50%, the silicon content of the Al-Si master alloy should be 10%, and the industrial grade should be selected. Iron wire or iron pellets.

 In addition to good comprehensive mechanical properties at room temperature and high temperature, Ti-6Al-2.5Mo-1.5Cr-0.5Fe-0.3Si titanium alloy also has excellent cutting and grinding characteristics


Cutting

Ti-6Al-2.5Mo-1.5Cr-0.5Fe-0.3Si alloy can be machined smoothly. However, due to the low thermal conductivity of titanium alloys, less heat is taken away from the parts during cutting, which increases the temperature of the tool head and accelerates the wear of the tool; in addition, the shear angle is relatively large during cutting, and the unit area on the tool tip The increased pressure also promotes tool wear. Therefore, several points must be paid attention to in the cutting process: the cutting speed is low, which is 50% lower than that of ordinary steel; the cutting depth and cutting amount should be appropriately increased; the coolant should be fully used; the tool material and geometric parameters should be reasonably selected, and timely Change the tool.



Grinding

The Ti-6Al-2.5Mo-1.5Cr-0.5Fe-0.3Si alloy can be ground, but due to the strong grinding surface hardening and poor workability, it is easy to burn and crack, and the grinding wheel is easy to wear. The use of Q7S-1 cutting fluid improves the machinability and enables inner hole grinding. The surface roughness R value is 0.8μm.



Our Packaging

Package
Package
Package
Package
Package
Package
Package
Package
Package
Package
Package
Package
Package
Package
Package
Package
Package
Package
Package
Package

About FRL Metal

Baoji Freelong New Material Technology Development Co., Ltd is headquartered in Baoji City — known as "China's Titanium Valley." As a professional manufacturer and exporter, we specialize in the production, OEM processing, and global sales of zirconium, titanium, nickel, niobium, tantalum and their alloys.

With years of industry experience, we have earned the trust of numerous clients and strategic partners worldwide. Our products have been authorized by leading enterprises across Australia, Korea, Germany, the United States, the United Kingdom, Malaysia, Central Asia, the Middle East, Taiwan and other regions.

At FRL Metal, quality and service are not just commitments — they are our core values. We strictly adhere to international standards (ASTM, AMS, etc.) and maintain ISO 9001 certification throughout our production process. Every batch undergoes rigorous testing to ensure it meets or exceeds customer specifications.

Whether you need standard products or custom solutions, our experienced team is ready to provide professional support from inquiry to delivery. We look forward to building a successful partnership with you.

TC6 Titanium rod Certification

Frequently Asked Questions (FAQ)

Q1: What is Ti-6Al-2.5Mo-1.5Cr-0.5Fe-0.3Si  TC6 (BT3-1)titanium alloy?
A: Ti-6Al-2.5Mo-1.5Cr-0.5Fe-0.3Si  TC6 (BT3-1)titanium alloy is an alpha-beta titanium alloy containing aluminum, molybdenum, chromium, iron, and silicon. It offers high strength, good thermal stability, and  corrosion resistance, making it ideal for aerospace and high-temperature applications.​

​​​​​​
Q2: What standards do your Ti-6Al-2.5Mo-1.5Cr-0.5Fe-0.3Si  TC6 (BT3-1)titanium alloy rod comply with?
A: Our titanium bars are manufactured per ASTM B348 (standard specification for titanium and titanium alloy bars and billet). We can also meet GB/T, JIS, and other international standards upon request.


Q3: What diameter sizes are available?
A: We offer Ti-6Al-2.5Mo-1.5Cr-0.5Fe-0.3Si TC6 (BT3-1)titanium alloy rod in various diameters. Standard sizes are available in stock, and custom dimensions can be manufactured per your requirements. Please contact us for specific size availability.


Q4: What are the main applications of Ti-6Al-2.5Mo-1.5Cr-0.5Fe-0.3Si TC6 (BT3-1)titanium alloy bars?
A: They are widely used in aerospace (engine compressor discs, blades, aircraft structures), automotive racing components, medical implants, chemical processing equipment, and high-performance sports equipment due to their high strength-to-weight ratio and corrosion resistance.


Q5: Can you provide Mill Test Certificates?
A: Yes, every batch comes with a comprehensive MTC (EN 10204 3.1) detailing chemical composition and mechanical properties to ensure compliance with ASTM and AMS standards.
Q6: What surface treatments are available?
A: We offer pickling, passivation, sandblasting, and polishing as surface treatments for our titanium bars, depending on the application requirements.
