Product Description

Product Description

Gr2/TA2 Seamless Pure Titanium Tube

FRL Metal offers high-quality Grade 2 (Gr2/TA2) seamless pure titanium tubes manufactured in accordance with ASTM B338, ASTM F67, ASTM F136, ASTM B337, and ASTM B862 standards. Our Gr2 titanium tubes are made from commercial pure titanium with a minimum titanium content of 99.6%, offering excellent corrosion resistance, good formability, and reliable performance in demanding environments.

Product Specifications:

Product name: Gr2 seamless pure titanium tube
Material: Commercial Pure Titanium (Grade 2 / TA2)
Main component: titanium
Outer diameter: ≤114mm
Wall thickness: ≥0.5mm
Length: 1000~12000mm (standard size), custom lengths available
Surface Treatment: Polished / Pickled / Mill Finish
Manufacturing Method: Cold Rolling / Cold Drawing / Welded (for larger diameters)
Standard: ASTM B338, ASTM F67, ASTM F136, STM B337, ASTM B862

Gr2 seamless pure titanium tube Specifications

Brand
Supply Status
Manufacturing method
Outer diameter (mm )
Wall thickness (mm )

0.5
0.6
0.8
1.0
1.25
1.5
2.0
2.5
3.0
3.5
4.0
4.5
Gr2/TA2
Annealed state (M )
Cold rolling (cold drawing)
10-15
○
○
○
○
○
○
○
-
-
-
-
-
﹥15-20
-
○
○
○
○
○
○
○
-
-
-
-
﹥20-30
-
○
○
○
○
○
○
○
-
-
-
-
﹥30-40
-
-
-
-
○
○
○
○
-
-
-
-
﹥40-50
-
-

-
-
○
○
○
○
-
-
-
﹥50-60
-
-
-
-
-
○
○
○
○
○
-
-
﹥60-80
-
-
-
-
-
-
○
○
○
○
○
○
welding
16
○
○
○
○
-
-

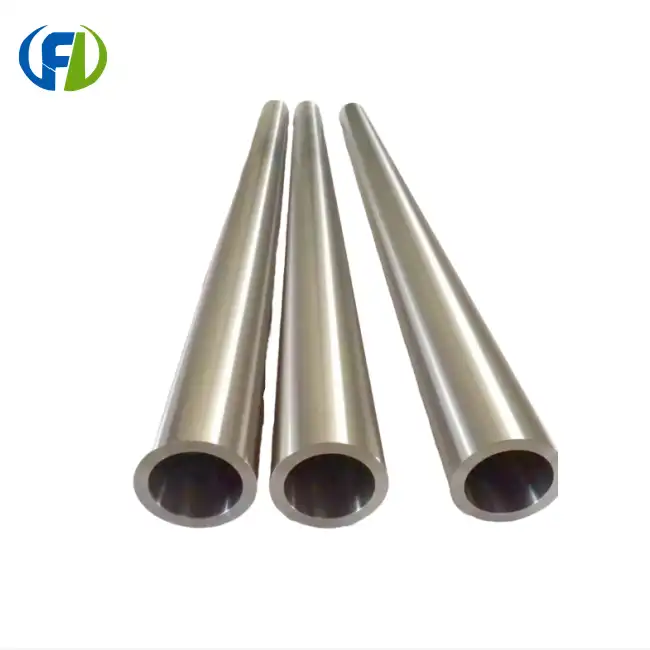

Gr2 seamless pure titanium tube display picture

product-650-650 Gr2 Seamless Pure Titanium Tube price product-650-650



Gr2 Seamless pure titanium tube application range

Chemical equipment (heat exchangers, condensers, reactors).
Marine engineering (seawater desalination, ship cooling).
Aerospace (aircraft fuel, hydraulic system pipelines).
Medical implants (orthopedics, cardiovascular stents).
Energy industry (nuclear power plants, fuel cell systems).
Electroplating equipment (titanium anode tubes, electroplating tanks).

Mechanical Properties of Grade 2 (Gr2/TA2) Titanium Tube

Property Value
Tensile Strength Min. 345 MPa (50,000 psi)
Yield Strength (0.2% Offset) Min. 275 MPa (40,000 psi)
Elongation in 50mm Min. 20%
Hardness (Brinell) Max. 190 HB
Density 4.51 g/cm3

Comparison of titanium brands from different countries

US brand number China grade Main alloy components (balance: titanium)
Gr1 TA1 Pure titanium
Gr2 TA2 Pure titanium
Gr3 TA3 Pure titanium
Gr4 TA4 Pure titanium
Gr5 TC4 6%Al+4%V
Gr6 TA7 5%Al+2.5%Sn
Gr7 TA9 0.12~0.25%Pb
Gr9 TA18 3%Al+2.5%V
Gr11 TA9-1 0.12~0.25%Pb
Gr12 TA10 0.3%Mo+0.8%Ni



Why Choose FRL Metal for Gr2 Seamless Pure Titanium Tubes?

1. Factory Direct Pricing

As a direct manufacturer in Baoji, China's Titanium Valley, we eliminate middlemen costs and offer you the most competitive factory prices without compromising on quality.

2. Strict Quality Control

Every batch of Gr2 titanium tubes undergoes comprehensive testing including chemical composition analysis, mechanical property testing (tensile strength, yield strength, elongation), hardness testing, ultrasonic testing, and hydrostatic pressure testing to ensure full compliance with ASTM standards.

3. Wide Product Range & Customization

We stock and manufacture Gr2 titanium tubes in various outer diameters (10-114mm), wall thicknesses (0.5-4.5mm), and lengths (up to 12000mm). Custom sizes, tolerances, and surface finishes are available upon request.

4. Fast Delivery & Reliable Supply

With large inventory stocks and efficient production lines, we can deliver standard specifications within 5-7 working days. For custom orders, delivery typically takes 15-25 days depending on specifications.

5. Complete Certification & Documentation

All products come with Mill Test Certificate (MTC), ISO 9001:2015 certification.



FAQ

Q1: What is the difference between Gr1 and Gr2 titanium tubes?

A1: Both Gr1 (TA1) and Gr2 (TA2) are commercial pure titanium grades. Gr2 has slightly higher strength (min tensile 345 MPa vs 240 MPa for Gr1) due to slightly higher interstitial element content, while Gr1 offers better formability and corrosion resistance. Gr2 is the most commonly specified grade for general engineering applications.

Q2: What standards do your Gr2 titanium tubes comply with?

A2: Our Gr2 seamless titanium tubes are manufactured to ASTM B338 (standard specification for seamless and welded zirconium and titanium pipes and tubes), ASTM F67 (standard specification for unalloyed titanium for surgical implant applications), ASTM F136 (titanium alloy Ti-6Al-4V ELI for surgical implant applications), ASTM B337 (standard specification for titanium and titanium alloy seamless pipe), and ASTM B862 (standard specification for titanium and titanium alloy welded pipe).

Q3: What is the maximum outer diameter and wall thickness you can produce?

A3: For seamless Gr2 titanium tubes, we offer outer diameters up to 114mm with wall thicknesses from 0.5mm to 4.5mm. For welded tubes, larger diameters are available. Custom specifications can be produced upon request.

Q4: Can you provide titanium tubes for medical implant applications?

A4: Yes, we manufacture Gr2 titanium tubes to ASTM F67/F136 standards which are specifically designed for medical implant applications. These tubes meet strict biocompatibility requirements and come with full traceability documentation.

Q5: What is your MOQ and delivery time?

A5: Our MOQ is flexible, starting from 1 piece for standard specifications. For in-stock items, delivery is typically 5-7 working days. For custom orders, delivery usually takes 15-25 working days depending on the specifications and quantity.

Q6: What surface finishes are available for Gr2 titanium tubes?

A6: We offer mill finish, pickled finish, and polished finish (both external and internal polishing). Surface quality can be customized according to your specific requirements and application needs.

Q7: Do you offer OEM services and custom sizing?

A7: Yes, we provide comprehensive OEM services including custom dimensions, specific tolerances, special surface finishes, and custom packaging. Our engineering team can work with your technical drawings to produce titanium tubes to your exact specifications.

Q8: What packaging do you use for titanium tubes?

A8: Standard packaging includes plywood cases with moisture-proof wrapping to protect against corrosion during transit and storage. We also offer customized packaging solutions based on customer requirements. For long tubes, we can use vacuum packaging or wooden crates with foam protection.
