Gr3 (TA3) Seamless Titanium Tube - Commercial Pure Grade 3

Origin: Baoji, Shaanxi, China
Brand: FRL metal
Density: 4.51 g/cm³
Grade: Gr3
Standard: ASTM B337, ASTM B338, ASTM B861
Size: Customizable
Surface: Polished, pickled
Certification: ISO 9001
Packaging Details: Plywood case
Product Description

Gr3(TA3) seamless Titanium tube introduction

Gr3 seamless titanium tube (TA3) is a commercial pure (CP) titanium tube manufactured per ASTM B337/B338 standards. As a Grade 3 CP titanium alloy, it contains 2.0-3.0% iron and 0.20% max oxygen, giving it higher strength than Grade 1 and Grade 2 while maintaining corrosion resistance and good formability. Our seamless titanium tubes are available in various outer diameters, wall thicknesses, and lengths to meet diverse industrial requirements.

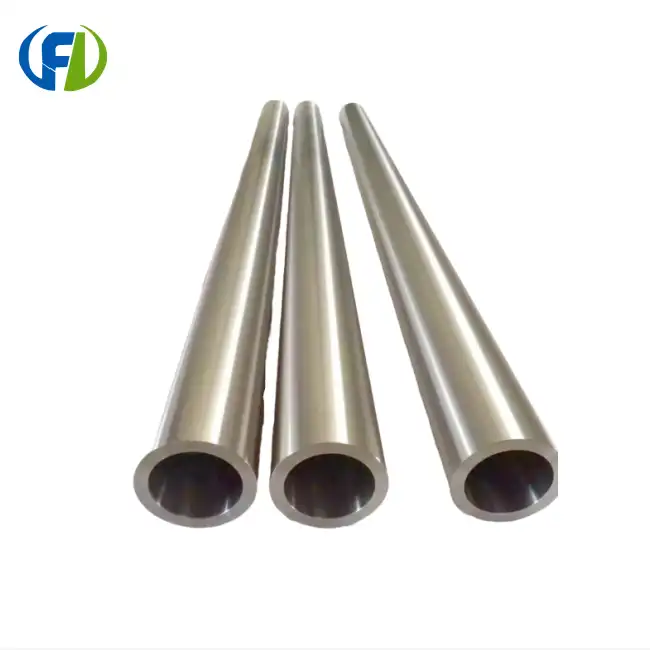

Gr3(TA3) Seamless Titanium tube display picture

Gr3 TA3 seamless titanium tube ASTM B337 FRL Metal Grade 3 commercial pure titanium tube polished surface FRL Metal Gr3 seamless titanium tube end view quality inspection


Chemical composition of titanium

Element Gr1 Gr2 Gr3 Gr4
C ≤0.05 ≤0.05 ≤0.05 ≤0.05
Fe ≤0.20 ≤0.30 2.0-3.0 ≤0.50
O ≤0.16 ≤0.20 ≤0.20 ≤0.30
N ≤0.03 ≤0.03 ≤0.03 ≤0.03
H ≤0.015 ≤0.015 ≤0.015 ≤0.015
Ti balance balance balance balance



Property Tensile Strength (MPa) Yield Strength (MPa) Elongation (%) Hardness (HB)
Grade 3 ≥550 ≥345 ≥15 ≤190



Gr3(TA3) seamless Titanium tube characteristics

  1. High Strength: Gr3 titanium has a minimum tensile strength of 550 MPa, approximately 30% higher than Grade 2, making it ideal for pressure-containing components and structural applications.
  2. Excellent Corrosion Resistance: Gr3 exhibits outstanding resistance to pitting and crevice corrosion in chloride-containing environments, seawater, chlorides, nitric acid, and various oxidizing media.
  3. Good Formability: Gr3 can be cold-formed, bent, and welded with satisfactory results, though formability is slightly reduced compared to Grade 1 and Grade 2 due to higher strength.
  4. Excellent Weldability: Gr3 titanium can be welded by TIG, MIG, laser, and electron beam welding methods without preheating or post-weld heat treatment in most applications.

Applications of Gr3(TA3) Seamless Titanium Tube:

  • Chemical processing: Heat exchangers, condensers, reactors, and pipelines in corrosive environments
  • Aerospace: Hydraulic pipes, structural components, and aircraft engine parts
  • Marine engineering: Seawater desalination plants, offshore platforms, and ship components
  • Medical devices: Surgical implants, medical instruments, and dental equipment
  • Power generation: Condenser tubes in nuclear and thermal power plants
  • Oil & gas: Downhole tools and corrosion-resistant piping systems

Why choose us?

  1. Equipment Advantages — We have advanced seamless tube mills, pickling lines, polishing equipment, and testing instruments to ensure precise manufacturing and surface quality.
  2. Product Advantages — Large inventory of Gr3 titanium tubes in various sizes, can provide samples, and customize per your specifications.
  3. Price Advantages — Direct factory supply, no middlemen, competitive pricing with consistent quality.
  4. Quality Advantages — ISO 9001:2015 certified, every batch comes with Mill Test Certificate (MTC) and third-party inspection is welcome.
  5. Service Advantages — Professional pre-sales consultation, responsive after-sales support, and on-time delivery guarantee.



Our Packaging

Package
Package
Package
Package
Package
Package
Package
Package
Package
Package
Package
Package
Package
Package
Package
Package
Package
Package
Package
Package

Frequently Asked Questions (FAQ)

Q1: What is Gr3 seamless titanium tube?
A: Gr3 seamless titanium tube (TA3) is a commercial pure (CP) titanium tube containing 2.0-3.0% iron, manufactured per ASTM B337/B338 standards. It offers higher strength than Grade 1 and Grade 2 while maintaining corrosion resistance and good formability.

Q2: What is the difference between Gr3 and Gr2 titanium tube?
A: Gr3 contains 2.0-3.0% iron which significantly increases its strength (tensile strength ≥550 MPa vs ≥345 MPa for Gr2). Gr3 is chosen for applications requiring higher mechanical properties, while Gr2 is selected when maximum formability and corrosion resistance are prioritized.

Q3: What standards do your Gr3 titanium tubes comply with?
A: Our Gr3 seamless titanium tubes are manufactured per ASTM B337 (standard specification for seamless and welded zirconium and titanium tubes) and ASTM B338 (specification for seamless titanium pipe). We can also meet EN 10210/10216 and other international standards upon request.

Q4: What size ranges are available for Gr3 titanium tubes?
A: We offer Gr3 seamless titanium tubes in outer diameters from 2mm to 400mm, wall thicknesses from 0.5mm to 20mm, and lengths from 500mm to 12000mm. Custom sizes and dimensions can be manufactured per your requirements.

Q5: Can you provide Mill Test Certificates?
A: Yes, every batch comes with a Mill Test Certificate (MTC) detailing chemical composition and mechanical properties to ensure compliance with ASTM standards. Third-party inspection is also welcome.

Q6: What surface finishes are available?
A: We offer polished and pickled surface finishes for our Gr3 seamless titanium tubes as standard. Other surface treatments are available upon request.



About FRL Metal

Baoji Freelong New Material Technology Development Co., Ltd is headquartered in Baoji City — known as "China's Titanium Valley." As a professional manufacturer and exporter, we specialize in the production, OEM processing, and global sales of zirconium, titanium, nickel, niobium, tantalum and their alloys.

With years of industry experience, we have earned the trust of numerous clients and strategic partners worldwide. Our products have been authorized by leading enterprises across Australia, Korea, Germany, the United States, the United Kingdom, Malaysia, Central Asia, the Middle East, Taiwan and other regions.

At FRL Metal, quality and service are not just commitments — they are our core values. We strictly adhere to international standards (ASTM, AMS, etc.) and maintain ISO 9001 certification throughout our production process. Every batch undergoes rigorous testing to ensure it meets or exceeds customer specifications.

Whether you need standard products or custom solutions, our experienced team is ready to provide professional support from inquiry to delivery. We look forward to building a successful partnership with you.
