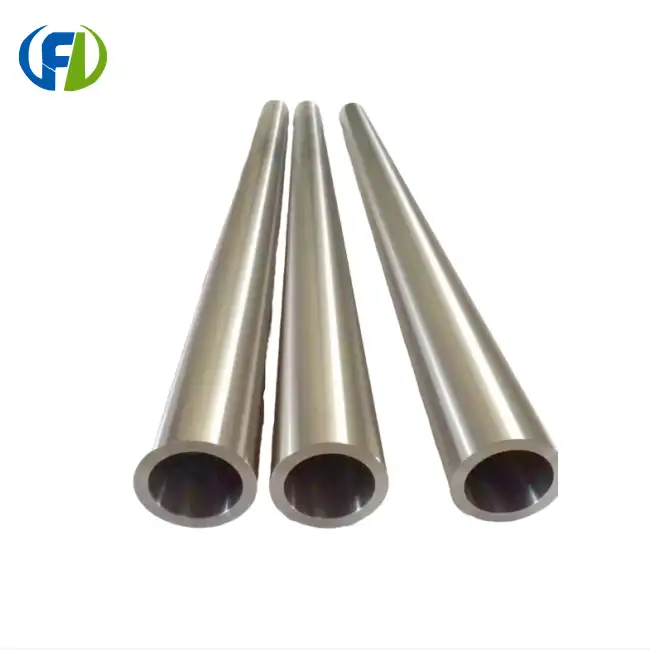

FRL Metal is a leading TA18 (Grade 9) Titanium Pipe manufacturer and supplier based in Baoji, China – the heart of China’s titanium industry. Our TA18 titanium pipes are made from Ti-3Al-2.5V alloy, a near-alpha titanium alloy that combines excellent strength, outstanding corrosion resistance, and superior formability. This grade is particularly valued for its exceptional cold working characteristics and weldability, making it ideal for complex tubing and piping applications where both performance and manufacturability are critical.
Our TA18 titanium pipes are manufactured in strict compliance with international standards including ASTM B337, ASTM B338, and ASTM B861. Each pipe undergoes rigorous quality control processes, including ultrasonic testing, eddy current testing, and hydrostatic testing, to ensure consistent quality and performance. We offer both seamless and welded configurations in various sizes, surface finishes, and temper conditions to meet the diverse requirements of our global clientele.
![]() |
![]() |
![]() |
1. Excellent Cold Formability
TA18 titanium pipe exhibits superior cold working characteristics compared to higher-alpha alloys like TC4 (Gr5). It can be readily cold-drawn, cold-bent, and cold-flared without intermediate annealing, making it the preferred choice for thin-walled tubing and complex geometric shapes in aerospace and medical applications.
2. Outstanding Weldability
TA18 alloy maintains excellent weldability across all common welding methods including TIG, MIG, electron beam, and laser welding. The weld joint strength coefficient exceeds 90%, and post-weld heat treatment is generally unnecessary. This makes TA18 titanium pipe ideal for fabricating complex piping systems and structural components.
3. High Strength-to-Weight Ratio
With a tensile strength of ≥620 MPa in the annealed condition – approximately 20% to 50% higher than commercial pure titanium – TA18 pipe offers an excellent strength-to-weight ratio. Its low density of 4.48 g/cm³ makes it significantly lighter than steel while maintaining superior mechanical properties, ideal for weight-sensitive applications.
4. Superior Corrosion Resistance
TA18 titanium pipe demonstrates corrosion resistance comparable to commercial pure titanium. It performs exceptionally well in seawater, chloride-containing environments, and various chemical media. The alloy shows excellent resistance to stress corrosion cracking, making it suitable for marine engineering and chemical processing applications.
5. Good Fatigue Resistance
The near-alpha microstructure of TA18 titanium pipe provides good fatigue resistance, particularly in the high-cycle fatigue regime. This makes it suitable for dynamic loading applications such as aerospace hydraulic systems, automotive components, and sporting goods where cyclic loading is a concern.
|
Parameter |
Outer Diameter (OD) |
Wall Thickness (WT) |
Length |
Shape |
Surface Finish |
Temper |
End Finish |
|
Specification |
6mm – 200mm |
0.5mm – 15mm |
1000mm – 7000mm (or as required) |
Seamless / Welded |
Pickled, Polished, Mill Finish |
Annealed (ANA), Stress Relieved |
Beveled, Square Cut, Threaded (optional) |
|
Element |
Aluminum (Al) |
Vanadium (V) |
Iron (Fe) |
Carbon (C) |
Nitrogen (N) |
Hydrogen (H) |
Oxygen (O) |
Titanium (Ti) |
|
Composition (%) |
2.5 – 3.5 |
2.0 – 3.0 |
≤ 0.25 |
≤ 0.08 |
≤ 0.03 |
≤ 0.015 |
≤ 0.15 |
Balance |
1.High temperature and high pressure pipelines: Suitable for high temperature and high pressure transmission pipelines in power plants, chemical plants and refineries.
2.Nuclear industry: Used for internal pipes and heat exchangers in nuclear reactors.
3.Medical equipment: Used to manufacture cardiovascular stents, bone implants, etc.
4.Sports equipment: High-end bicycle frames, tennis rackets and golf clubs, etc.
TA18 Titanium Pipe is produced in strict accordance with international quality standards, including ISO 9001 and ASTM B861. During the production process, advanced smelting, rolling and heat treatment processes are used to ensure the purity and performance of the material. Each batch of products undergoes strict non-destructive testing (such as ultrasonic testing, X-ray testing) and mechanical property testing (such as tensile testing, hardness testing) before leaving the factory to ensure that it meets customer requirements and relevant standards.
1. Industry Experience
With over 20 years of experience in the titanium and special alloy industry, FRL Metal has developed deep expertise in manufacturing high-quality titanium pipes that meet the most demanding international standards and customer specifications.
2. Global Export Network
Our products are exported to more than 30 countries and regions worldwide, including North America, Europe, Southeast Asia, the Middle East, and Australia. We understand international quality expectations and delivery requirements.
3. Advanced Manufacturing Capability
We operate our own factory equipped with state-of-the-art production and testing equipment, including vacuum arc remelting (VAR) furnaces, forging presses, rolling mills, precision drawing machines, and comprehensive testing laboratories.
4. Strict Quality Control
Every batch of TA18 titanium pipe undergoes rigorous quality inspection including chemical analysis, mechanical testing, non-destructive testing (ultrasonic, eddy current, hydrostatic), and dimensional verification to ensure full compliance with ASTM standards and customer requirements.
5. Competitive Pricing & On-Time Delivery
As a direct manufacturer, we offer competitive factory prices without middleman markups. Our efficient production planning and inventory management ensure on-time delivery for both standard and custom orders.
Q1: What is the difference between TA18 and Grade 5 (Gr5) titanium pipe?
TA18 (Ti-3Al-2.5V) is a near-alpha titanium alloy with lower aluminum and vanadium content compared to Gr5 (Ti-6Al-4V). This gives TA18 superior cold formability and weldability, while Gr5 offers higher strength. TA18 is preferred for complex formed tubing and welded structures, while Gr5 is chosen for high-strength structural applications.
Q2: What standards does TA18 titanium pipe comply with?
TA18 titanium pipe is manufactured to ASTM B338 (seamless titanium pipe), ASTM B337 (titanium condenser and heat exchanger tubes), and ASTM B861 (titanium and titanium alloy seamless pipe) standards. It also complies with GB/T 3620.1 (Chinese standard) and ISO Ti-3Al-2.5V specifications.
Q3: What is the maximum service temperature for TA18 titanium pipe?
TA18 titanium pipe can be used continuously at temperatures up to 315°C (600°F). For short-term exposure, it can withstand temperatures up to 425°C (797°F). Above these temperatures, other titanium alloys like Ti-6242 or high-temperature titanium aluminides should be considered.
Q4: Can TA18 titanium pipe be welded?
Yes, TA18 titanium pipe has excellent weldability. It can be welded using TIG, MIG, electron beam, and laser welding methods. The weld joint strength typically exceeds 90% of the base metal strength. Post-weld heat treatment is generally not required, though stress relief annealing may be performed depending on the application requirements.
Q5: What surface finishes are available for TA18 titanium pipe?
We offer several surface finish options including pickled (acid-cleaned), polished (mechanical or electrolytic), and mill finish. The choice of surface finish depends on the application requirements, with pickled finish being the most common for industrial applications and polished finish preferred for aesthetic or hygienic applications.
