10ml Zirconium Labware Crucible R60702

Origin: Baoji, Shaanxi, China
Brand: FRL Metal
Surface: Polished surface
Density: 6.51 g/cm³
Grade: R60702, R60705, R60001, R60901
Purity: ≥ 99.2% (R60702) / ≥ 95.5% (R60705)
Minimum Order Quantity: 1pc
Sample: available
Standard: ASTM B551/ASTM B550
Delivery Time: 5-7days
Payment Terms: T/T
Certification: ISO 9001
Packaging Details: Plywood case
Product Description

Product Description

Premium 10ml Zirconium Labware for Precision Laboratory Applications

The 10ml Zirconium Labware, including precision-machined zirconium crucibles, is engineered for demanding laboratory environments where extreme corrosion resistance and high-temperature stability are critical. With a melting point of 1855°C, zirconium offers exceptional performance in aggressive chemical processes, making it a highly cost-effective and durable alternative to traditional platinum labware. FRL Metal’s 10ml zirconium crucibles are meticulously crafted to meet the exacting standards of analytical chemistry, metallurgy, and materials science research.

Parameter Specification
Material Grades R60702 (Zr702), R60705 (Zr705), R60001, R60901
Standard ASTM B551/ASTM B550
Density 6.51 g/cm³
Purity (R60702) Zr+Hf ≥ 99.2%
Purity (R60705) Zr+Hf ≥ 95.5% (Nb 2.0-3.0%)
Surface Finish Polished / Mirror Finish
Available Volumes 5ml, 10ml, 15ml, 20ml, 25ml, 30ml, 35ml, 40ml, 45ml, 50ml
Crucible Types Low Form, Flanged Rim, Straight Wall, Tapered, Cylindrical



Dimensions of Zirconium Crucibles

Capacity (ml) Diameter Top (mm) Diameter bottom (mm) Height (mm)
15 36 32 23
20 35 32 32
25 47 40 23
35 42 32 42
45 47 40 35
50 59 40 43
55 47 40 42
75 51 44 42
100 59 53 46
250 83 72 60
500 102 89 66
1000 152 144 95
1500 152 144 108

Zirconium Crucible dimensions can be customized upon request.

Zirconium Crucible Covers are available for purchase at an additional cost.

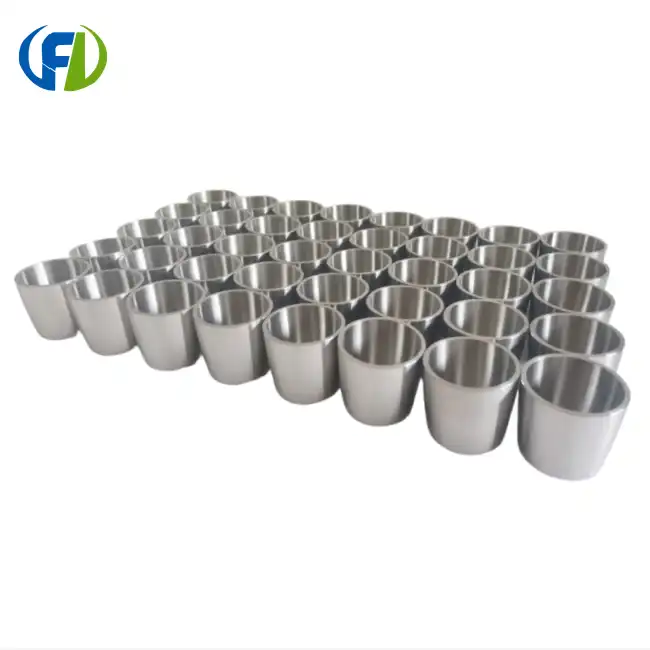

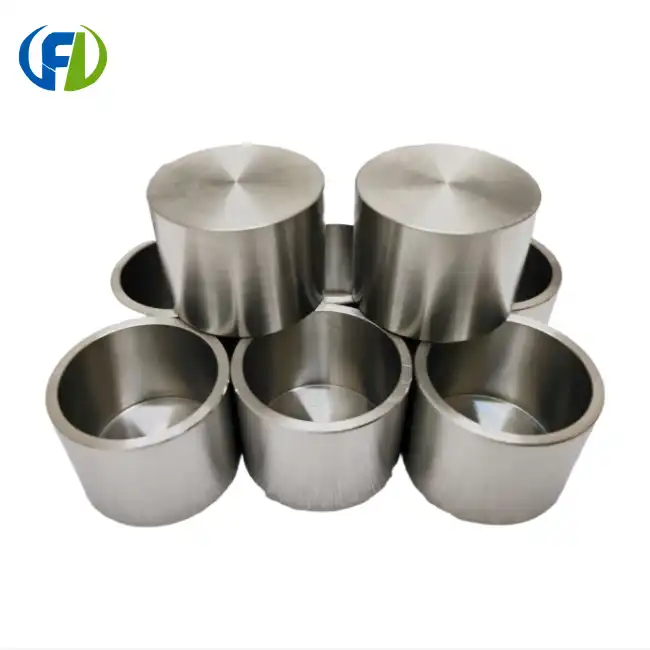

10ml Zirconium Labware picture display

10ml Zirconium Labware Crucible price 10ml Zirconium Labware Crucible factory Customized 10ml Zirconium Labware Crucible Customized Wholesale 10ml Zirconium Labware Crucible R60702



Chemical composition of zirconium crucibles

Grade Element composition(%)<
Zr+Hf Hf Fe Fe+Cr Sn H N C Nb O
R60702 99.2 4.5   0.2 / 0.005 0.025 0.05 / 0.16
R60705 95.5 4.5   0.2 / 0.005 0.025 0.05 2.0~3.0 0.18

Key Features of FRL Metal Zirconium Labware

• Superior Corrosion Resistance: Zirconium exhibits outstanding resistance to most organic and inorganic acids, alkalis, and saline solutions. It is particularly effective against hydrochloric acid, sulfuric acid, and nitric acid, ensuring sample integrity and preventing crucible contamination.

• High-Temperature Stability: While zirconium can withstand extreme heat, our 10ml labware is optimally designed for continuous use at recommended temperatures between 400°C and 500°C. For melting applications, operating temperatures should not exceed 900°C to maintain structural integrity and prolong service life.

• High Purity Grades: We supply labware in standard R60702 (unalloyed zirconium, ≥99.2% purity) and R60705 (zirconium-niobium alloy) grades, compliant with ASTM B551 and ASTM B550 standards. This ensures consistent chemical inertness and mechanical reliability.

• Precision Manufacturing: Each 10ml zirconium crucible features a smooth, polished inner and outer surface to minimize sample adhesion, facilitate easy cleaning, and prevent cross-contamination between batches.

• Cost-Effective Platinum Alternative: Zirconium provides comparable chemical resistance to platinum at a fraction of the cost, offering laboratories significant savings without compromising analytical accuracy.



Wide-Ranging Applications

Our 10ml zirconium labware is widely utilized across various high-tech and research sectors, including: * Analytical Chemistry: Acid digestion, sample preparation, and fusion of refractory materials. * Metallurgy & Materials Science: High-temperature melting, alloy synthesis, and thermal analysis. * Nuclear Industry: Handling of radioactive isotopes and specialized chemical processing. * Pharmaceutical & Semiconductor Research: Ultra-high purity sample processing where metallic contamination must be strictly avoided.



Our Advantage

1. Exceptional Corrosion Resistance

Our zirconium labware offers superior resistance to aggressive acids, alkalis, and molten salts, ensuring zero sample contamination and extended crucible lifespan in harsh chemical environments.

2. Precision High-Temperature Performance

Engineered for optimal stability at recommended operating temperatures of 500-600°C, our 10ml zirconium crucibles provide reliable performance for melting and digestion processes up to 900°C.

3. Certified High-Purity Materials

Manufactured from ASTM-compliant R60702 and R60705 zirconium alloys with verified purity levels, guaranteeing chemical inertness and accurate analytical results for sensitive laboratory applications.

4. Flexible Customization & Low MOQ

We offer fully customized 10ml zirconium labware tailored to your exact specifications. With a Minimum Order Quantity of just 1 piece, we seamlessly support both R&D prototyping and bulk industrial orders.

5. Rigorous Quality Assurance

Every zirconium crucible is produced under ISO 9001 certified processes and undergoes strict dimensional and surface quality inspections before being securely packed in export-grade plywood cases for safe global delivery.



FAQ

1. What grades of zirconium are used for your 10ml labware?

We primarily manufacture 10ml zirconium crucibles and labware using R60702 (unalloyed zirconium, ≥99.2% purity) and R60705 (zirconium-niobium alloy) grades, fully compliant with ASTM B551 and ASTM B550 standards.

2. What is the maximum recommended operating temperature for 10ml zirconium crucibles?

For continuous laboratory use, we recommend operating temperatures between 400°C and 500°C. For specific melting applications, the temperature should not exceed 900°C to maintain the structural integrity and longevity of the crucible.

3. How does zirconium labware compare to platinum labware?

Zirconium offers excellent corrosion resistance against most acids and alkalis, comparable to platinum, but at a significantly lower cost. It is an ideal, cost-effective alternative for laboratories requiring high chemical inertness without the premium price of platinum.

4. How should I clean and maintain my zirconium labware?

Zirconium crucibles can be cleaned using standard acid washing procedures. Avoid using abrasive materials that could scratch the polished surface. Always store in a clean, dry environment to prevent surface contamination.

5. Can I customize the dimensions of the 10ml zirconium labware?

Yes, FRL Metal provides full customization services. We can tailor the dimensions, wall thickness, and surface finish of the 10ml zirconium crucibles to meet your specific laboratory requirements.

6. What is the Minimum Order Quantity (MOQ) for 10ml zirconium labware?

Our MOQ is highly flexible, starting from just 1 piece. This makes our zirconium labware ideal for both small-scale R&D testing and large-scale industrial procurement.

7. What certifications do your zirconium labware products have?

All FRL Metal zirconium labware is manufactured under a strict ISO 9001:2015 quality management system, ensuring consistent product quality, traceability, and reliability for every order.

8. What are the packaging and delivery times for this product?

We pack our 10ml zirconium labware in standard export plywood cases to ensure safe transit. For standard items, the delivery time is typically 5-7 days. Custom orders may require additional lead time, which will be confirmed upon order placement.

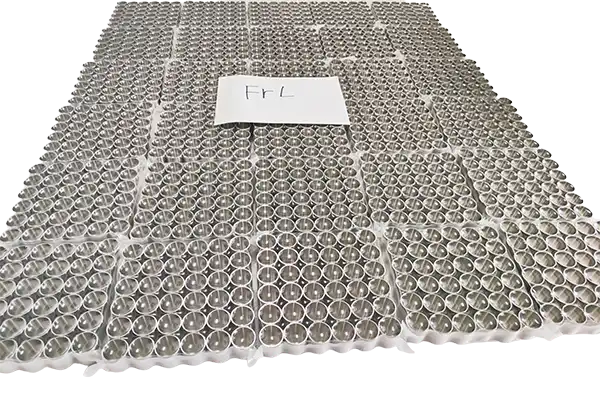

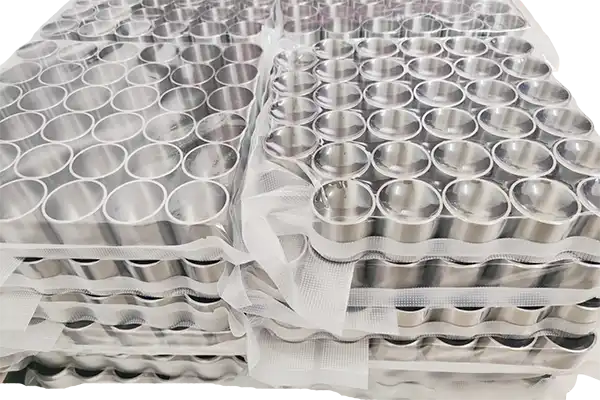

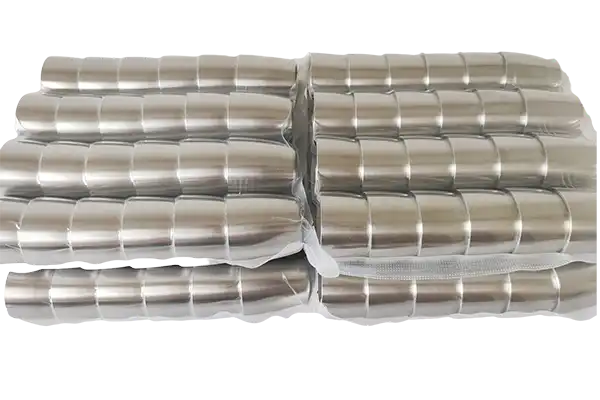

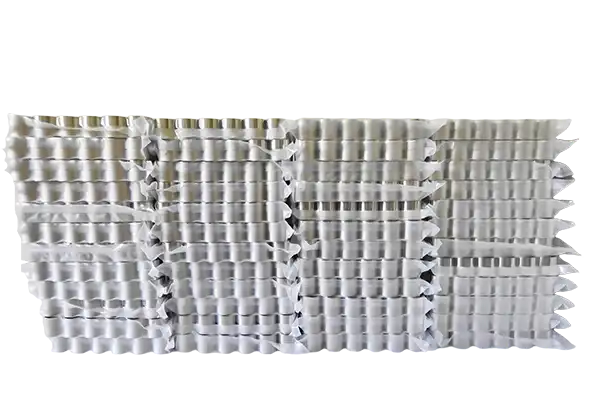

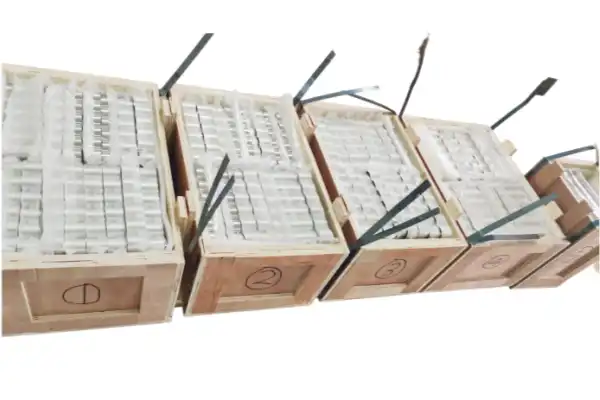

Our Packaging
