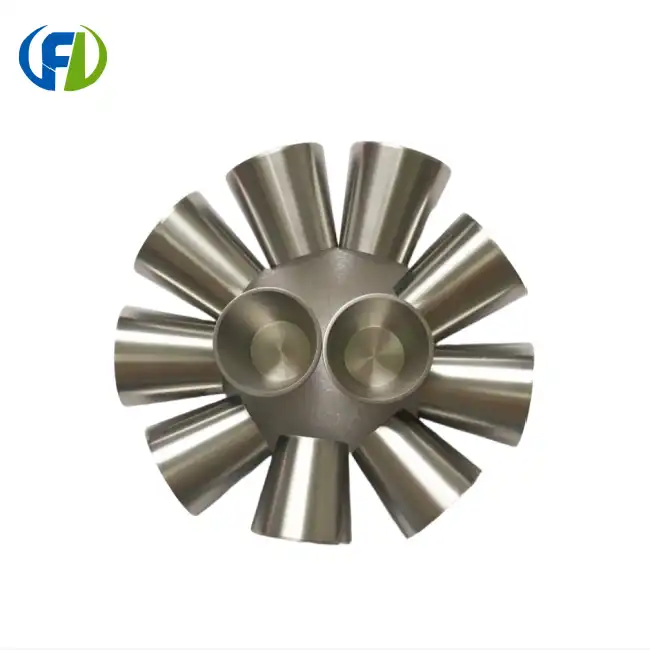

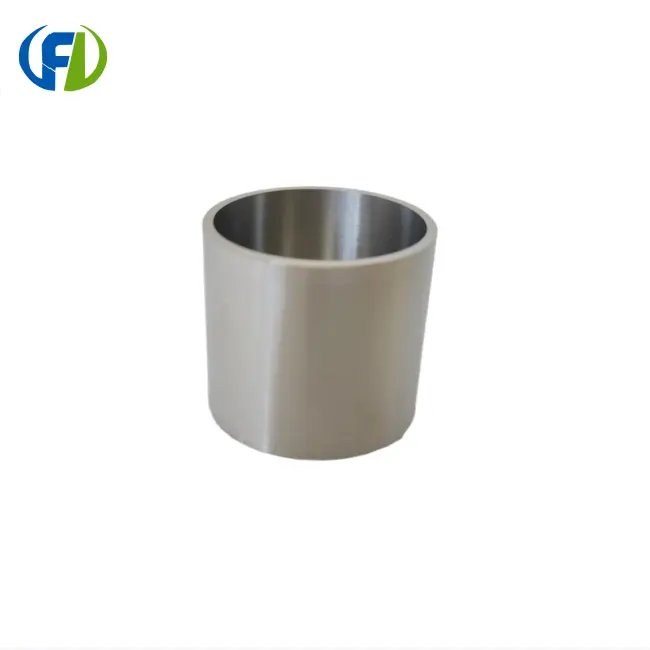

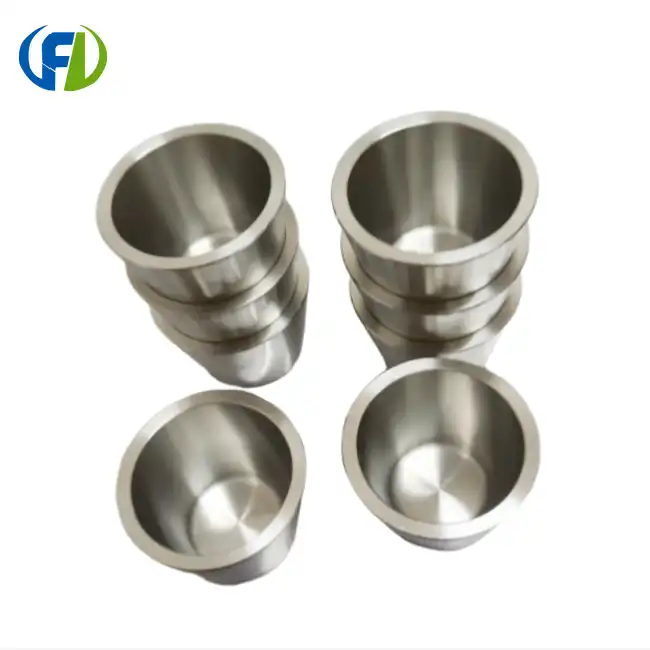

FRL Metal supplies high-purity 2mm thick wall zirconium crucibles manufactured from Zr702 (Grade 2) and Zr705 (Grade 5) commercial pure zirconium. These crucibles offer high-temperature stability up to 1000°C, outstanding corrosion resistance in molten metals and chemicals, and superior mechanical strength for repeated use. Compliant with ASTM B337/B338 standards, our 2mm zirconium crucibles are ideal for nuclear fuel processing, chemical analysis, materials research, and high-purity metal melting applications.. Their high purity and chemical inertness ensure the accuracy and stability of the experimental and production processes. Through strict quality assurance measures, each zirconium crucible can meet the high standards of users, making it widely used in scientific research, industry, aerospace and nuclear energy.
| Parameter | Details |
| Product Name | 2mm Thick Zirconium Crucible (Zr702/Zr705) (Customizable) |
| Material Grade | R60702 R60705(Also available: R60001, R60901) |
| Purity | R60702: (Zr+Hf ≥ 99.2%) R60705: (Zr+Hf ≥ 95.5% + Nb 2.0-3.0%) |
| Origin | Baoji, Shaanxi, China (Titanium Valley) |
| Available Volumes | 5ml, 10ml, 15ml, 20ml, 25ml, 30ml, 35ml, 40ml, 50ml, etc. |

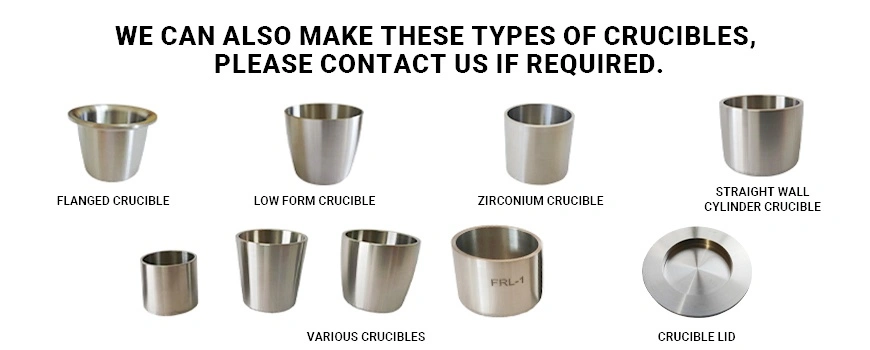

| Crucible Types | Low form, Flanged rim, Straight wall, Tapered, Cylindrical |
| Wall Thickness | Standard: 0.8mm - 2.5mm (Customizable per drawing) |
| Surface Finish | Polished / Pickled (Bright finish available) |
| Service Life | >100 cycles (for 2mm wall thickness in standard fusion) |
| Customization | Yes, we manufacture strictly according to customer drawings. |
![]() |
![]() |
![]() |


| Capacity (ml) | Diameter Top (mm) | Diameter bottom (mm) | Height (mm) |
| 15 | 36 | 32 | 23 |
| 20 | 35 | 32 | 32 |
| 25 | 47 | 40 | 23 |
| 35 | 47 | 40 | 30 |
| 45 | 47 | 40 | 35 |
| 55 | 47 | 40 | 42 |
| 75 | 51 | 44 | 42 |
| 100 | 59 | 53 | 46 |
| 250 | 83 | 72 | 60 |
| 500 | 102 | 89 | 66 |
| 1000 | 152 | 144 | 95 |
| 1500 | 152 | 144 | 108 |
Standard wall thickness: 0.89mm. Custom wall thicknesses (1.5mm, 2.0mm, and others) are available upon request. All dimensions are for reference only; custom sizes can be manufactured per your specifications. Please contact us for detailed quotations.
Q1: Do you have a dedicated R&D team? Can you design a zirconium crucible for us?
A: Yes, we have a dedicated technical team responsible for research and development of zirconium crucibles. We can customize size, shape (straight wall, tapered, low form, flanged rim), and wall thickness according to your requirements. Most of our zirconium crucibles follow ASTM standards, and we can also meet other international standards upon request.
2. Can you provide samples? Is there a fee?
Samples can be provided for a fee.
3. What is your payment method?
We can accept T/T, L/C, Trade Assurance order from alibaba.com. Samples are 100% prepaid. 100% prepayment for mass production orders below $1,000, 30% prepayment for more than $1,000, and 70% cash on delivery.
4. How long is your delivery time?
Stock samples: within 3 working days, bulk order products: 7-15 days under normal conditions.

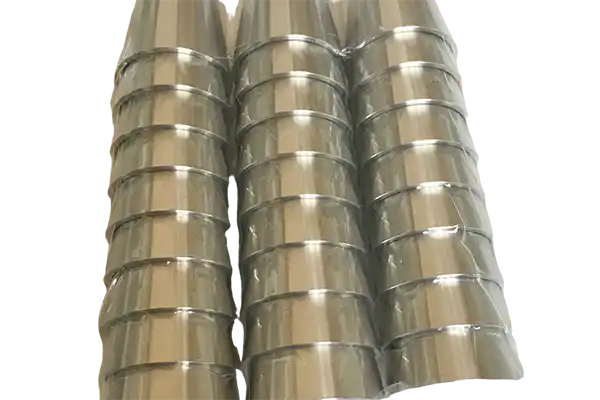

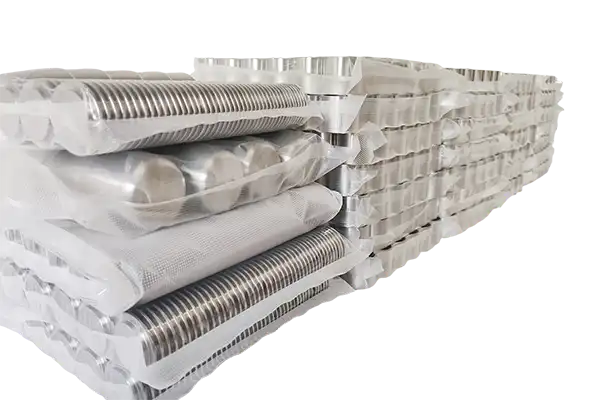

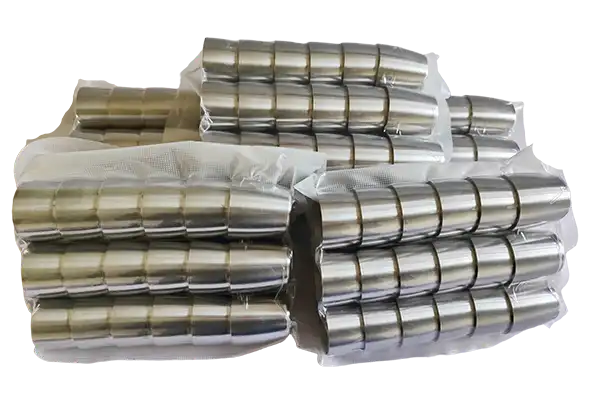

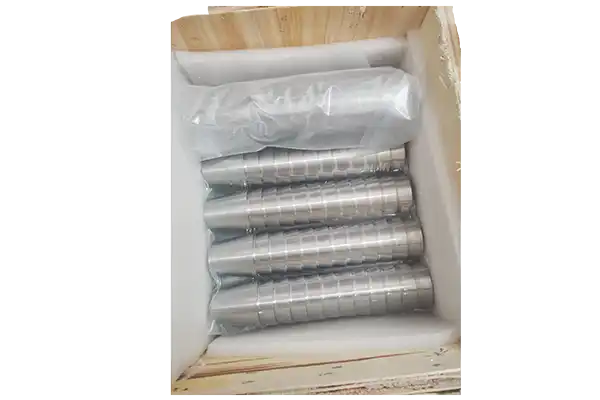

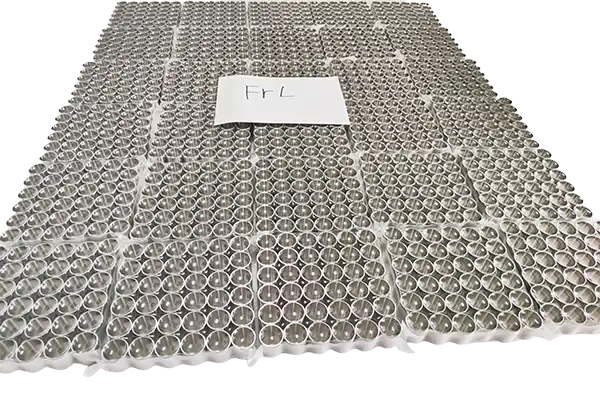

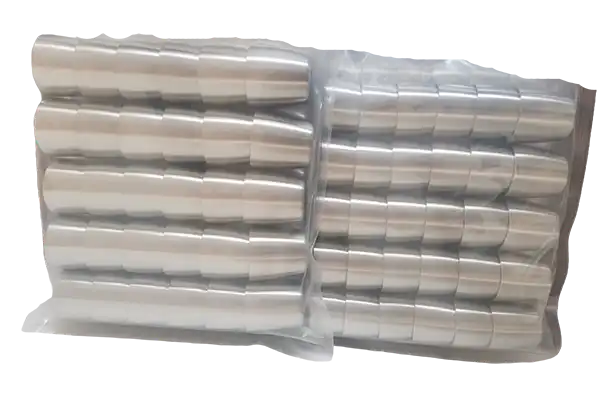

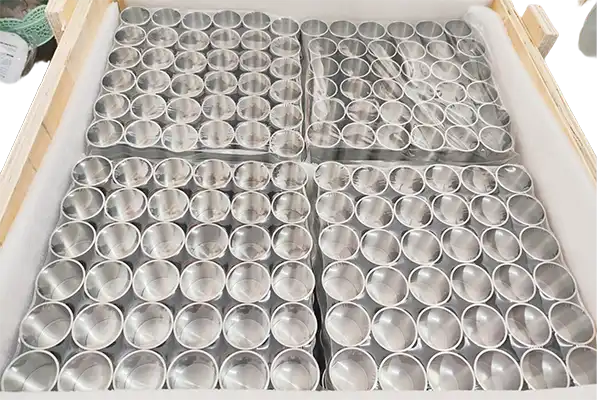

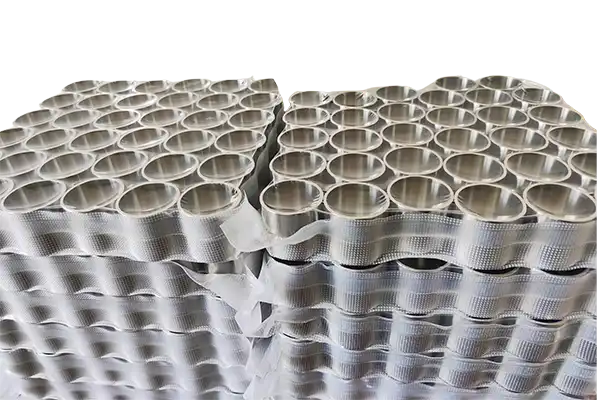

Our Packaging










Baoji Freelong New Material Technology Development Co., Ltd is headquartered in Baoji City — known as "China's Titanium Valley." As a professional manufacturer and exporter, we specialize in the production, OEM processing, and global sales of zirconium, titanium, nickel, niobium, tantalum and their alloys.
With years of industry experience, we have earned the trust of numerous clients and strategic partners worldwide. Our products have been authorized by leading enterprises across Australia, Korea, Germany, the United States, the United Kingdom, Malaysia, Central Asia, the Middle East, Taiwan and other regions.
At FRL Metal, quality and service are not just commitments — they are our core values. We strictly adhere to international standards (ASTM, AMS, etc.) and maintain ISO 9001 certification throughout our production process. Every batch undergoes rigorous testing to ensure it meets or exceeds customer specifications.
Whether you need standard products or custom solutions, our experienced team is ready to provide professional support from inquiry to delivery. We look forward to building a successful partnership with you.

Our Factory
![]() |
![]() |
![]() |
![]() |
![]() |
Production Equipment
