50ml Flanged Zirconium Crucible R60702

Origin: Baoji, Shaanxi, China
Brand: FRL Metal
Density: 6.51 g/cm³
Grade: R60702, R60705, R60001 Minimum Order Quantity: 1pc
Shape: Customizable (Cylindrical, Tapered, Low Form, etc.)
Packaging Details:Plywood case
Delivery Time: 5~7days
Payment Terms: T/T
Certification: ISO9001
Product Description

Product Introduction

The 50ml flanged zirconium crucible is a premium laboratory vessel engineered for high-temperature melting, sintering, and thermal analysis. Manufactured from high-purity zirconium metal (grades R60702, R60705, R60001, ) in strict accordance with ASTM B381 standards, this crucible offers exceptional resistance to corrosive acids, alkalis, and molten salts. The reinforced flanged rim provides structural integrity and ensures secure handling with laboratory tongs, while the ultra-smooth inner surface prevents sample adhesion, facilitating easy cleaning and cross-contamination prevention.

Name 50ml Flanged Zirconium Crucible R60702
Material Zirconium & Zirconium alloy
Grade R60702, R60705, R60001
Purity R60702: ≥99.2% (Zr+Hf)R60705: ≥95.5% (Zr+Hf)R60001/R60901: ≥99.95%
Density 6.51 g/cm³
Type Low form zirconium crucible, flanged rims zirconium crucible,straight wall zirconium crucible, tapered zirconium crucible, Cylindrical zirconium crucible.
Capacity 50ml, We can also produce and design these volume 5ml,10ml,15ml,20ml,25ml,30ml,35ml,40ml,45ml etc.
Wall thickness 1mm,2mm,or custom.
Custom Yes, process as per customer's drawing.

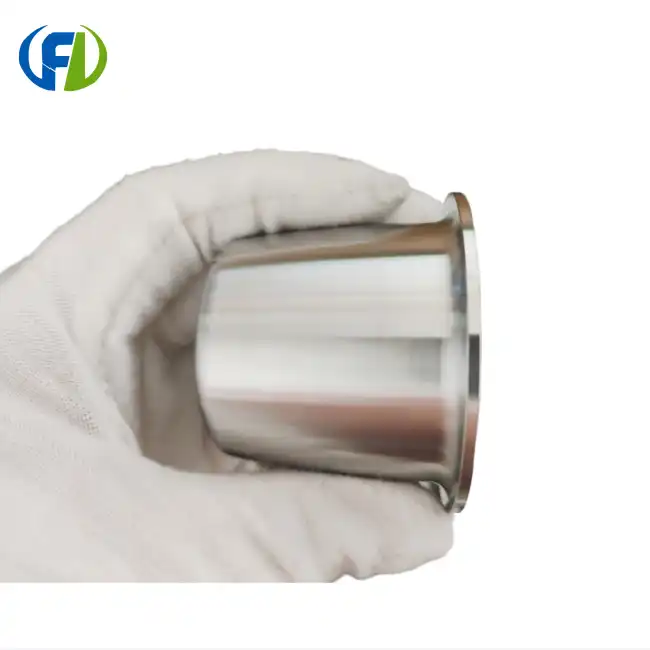

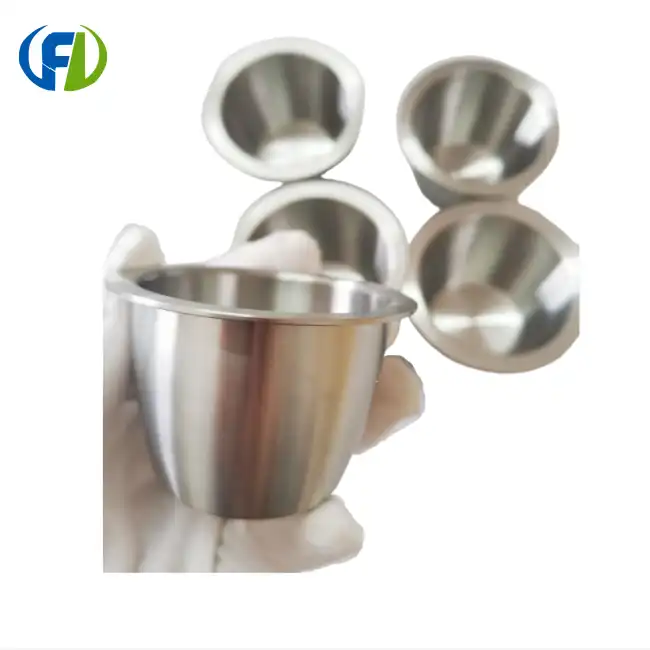

50ml Zirconium Crucible With Flange picture display

50ml Zirconium Crucible With Flange in China 50ml Zirconium Crucible With Flange price Smooth Inner Surface and Reinforced Flange of Zirconium Crucible 50ml Flanged Zirconium Crucible R60702 - FRL Metal

​​​​​

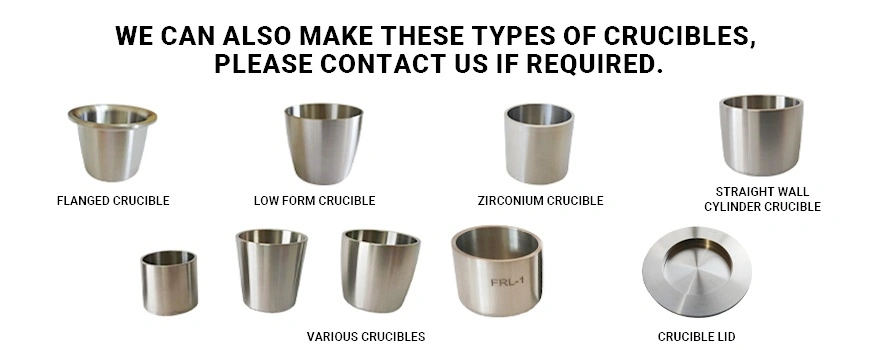

Zirconium crucibles in various shapes

WhatsApp&Wechat: +8613571190943
E-mail: Jenny@bjfreelong.com



Zirconium Crucible contact information

Key Features

• Accurate Temperature Tolerance: Pure zirconium metal has a melting point of approximately 1855°C. It maintains excellent mechanical strength and chemical inertness at high temperatures in vacuum or inert atmospheres (safe continuous use up to 1200°C–1600°C depending on conditions). (Note: Not to be confused with zirconia ceramics).

• Superior Chemical Stability: Highly resistant to attack by most organic and inorganic acids, making it ideal for aggressive chemical processing.

• Precision Flange Design: The extended flange allows for stable placement on furnace supports and safe, secure gripping during high-temperature transfers.

• Customizable Dimensions: Available in 50ml capacity, with wall thicknesses of 1mm, 2mm, or custom specifications based on client drawings.



The advantages of the 50ml flanged zirconium crucible include:

1. High temperature resistance: 50ml zirconium crucible with flange can withstand extreme temperature in high temperature environment, up to 2200℃. This makes it ideal for applications requiring high temperature experiments such as melting experiments, sintering experiments and thermal analysis.

2. Strong chemical stability: Zirconium is a material with excellent chemical stability, and the 50ml flanged zirconium crucible has good corrosion resistance to most acid and alkali solutions and corrosive gases. This allows it to withstand the erosion of a variety of chemical reagents, so it is widely used in chemical reaction vessels.

3. Good thermal conductivity: The 50ml flanged zirconium crucible has good thermal conductivity, which can effectively conduct heat to the sample and achieve uniform temperature distribution. This is very important for experiments that need to keep the sample heated evenly, ensuring the accuracy and repeatability of the experimental results.

4. The inner surface is smooth and flat: the inner surface of the 50ml flanged zirconium crucible is smooth and flat, and it is not easy to attach sample residues. This makes cleaning and re-use easier, saving lab time and costs.

5. Strong wear resistance: The 50ml flanged zirconium crucible has high hardness and wear resistance, and can resist physical and chemical damage. This gives it a long lifespan, capable of withstanding prolonged experimental use.



50ml Zirconium Crucible With Flange Chemical Composition

Grade Element composition(%)<
Zr+Hf Hf Fe Fe+Cr Sn H N C Nb O
R60702 99.2 4.5   0.2 / 0.005 0.025 0.05 / 0.16
R60705 95.5 4.5   0.2 / 0.005 0.025 0.05 2.0~3.0 0.18
R60001 / 0.010  0.150  / 0.0050  0.0025 0.0065 0.027 / /



50ml zirconium crucible with flange scope of use

1. Material research and development: 50ml flanged zirconium crucible can be used for the preparation and research of materials such as molten metal, ceramics and glass. It can withstand the melting process at high temperature, providing a basis for the study of the structure and properties of materials.

2. Sintering experiment: Sintering is a process in which powder materials are compacted at high temperature to form dense blocks. The 50ml flanged zirconium crucible can be used for sintering experiments of ceramic and powder materials at high temperature to promote particle bonding and material densification.

3. Thermal analysis: Thermal analysis experiments such as thermogravimetric analysis and thermal expansion analysis need to be carried out under high temperature conditions. The 50ml zirconium crucible with flange can withstand high temperature and maintain the stability of the sample, providing a reliable experimental container for thermal analysis.

4. Chemical reaction vessel: Since the 50ml flanged zirconium crucible has excellent chemical stability and corrosion resistance, it can carry reagents such as acid and alkali in chemical reactions for reaction. It can be used in catalytic reactions at high temperature, solid phase reactions and other organic or inorganic synthesis reactions.

5. Routine application in the laboratory: The 50ml zirconium crucible with flange can also be used in other routine applications in the laboratory, such as sample heating, melting point determination, storage and transportation of samples, etc.



Zirconium crucibles in various sizes

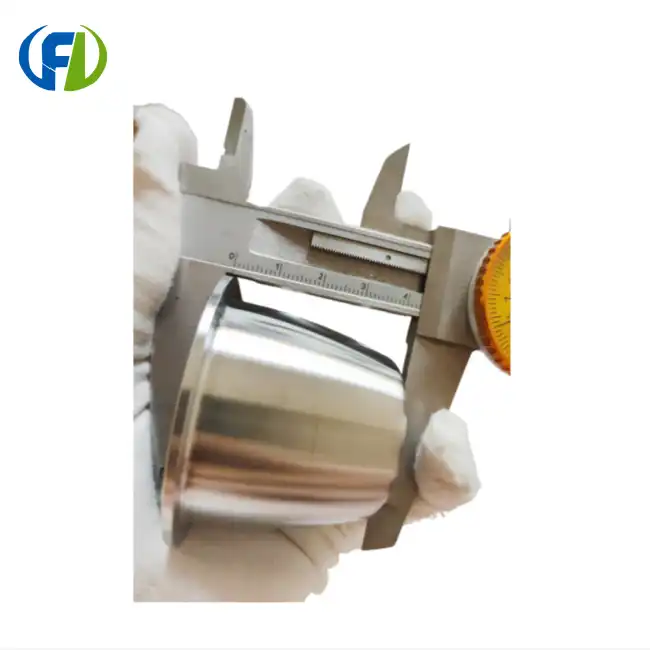

Zirconium Crucible Dimension Test Diagram

FAQ

1. Do you have a dedicated R&D team? Can you design custom zirconium crucibles for us?

A: Yes. FRL Metal has a professional R&D and engineering team specializing in zirconium and titanium labware. We can manufacture custom zirconium crucibles, flanged or unflanged, strictly according to your CAD drawings or specific dimensional requirements.

2. What is the maximum safe operating temperature for zirconium metal crucibles?

A: Pure zirconium metal has a melting point of approximately 1855°C. However, due to oxidation risks in air, the safe continuous operating temperature in an oxidizing atmosphere is typically limited to 400°C–500°C. In vacuum or inert atmospheres (argon), it can safely withstand temperatures up to 900°C–1000°C.

3. What are the benefits of choosing a flanged zirconium crucible over a standard straight-wall crucible?

A: The flanged rim provides a wider bearing surface, ensuring greater stability when placed on furnace supports. It also offers a secure gripping point for laboratory tongs, significantly reducing the risk of dropping the crucible during high-temperature transfers.

4. Can you provide samples? Is there a fee?

A: Yes, we can provide samples for testing. Standard sizes may be available from stock at no cost (shipping collect). For custom-drawn samples, fee may apply, which can often be refunded upon placing a bulk order.

5. What is the Minimum Order Quantity (MOQ)?

A: Our MOQ is highly flexible. For standard sizes, the MOQ is 1 piece. For custom-designed zirconium crucibles, the MOQ is typically 5-10 pieces depending on the complexity of the drawing.

6. What certifications do your zirconium crucibles have?

A: All FRL Metal zirconium labware is manufactured under an ISO9001 quality management system. We also provide Mill Test Certificates (MTC) verifying the chemical composition and mechanical properties of the raw zirconium material used.

7. How long is the delivery time?

A: For standard 50ml flanged crucibles in stock, delivery takes 3-5 days. For custom orders or out-of-stock items, the typical production and delivery time is 5-7 days, depending on the order quantity.

8. What payment methods do you accept?

A: We accept T/T (Telegraphic Transfer) for international orders.

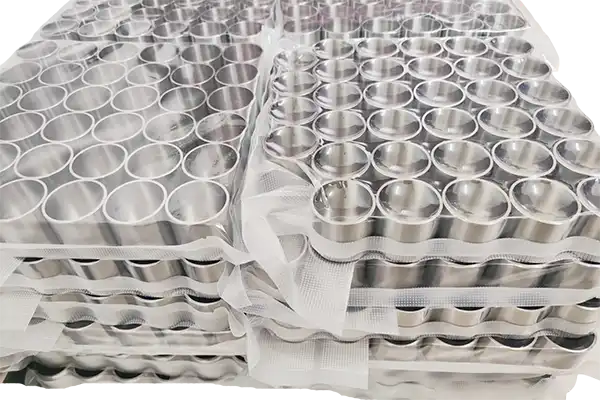

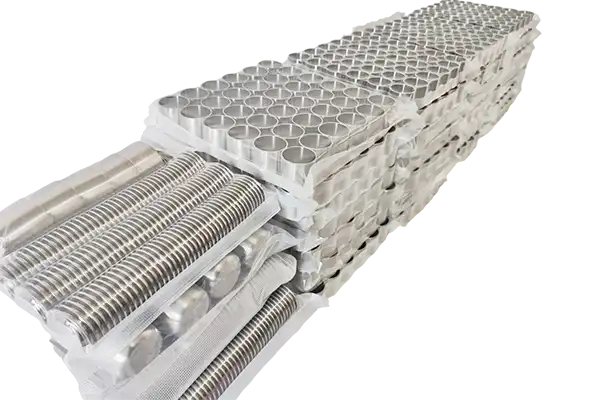

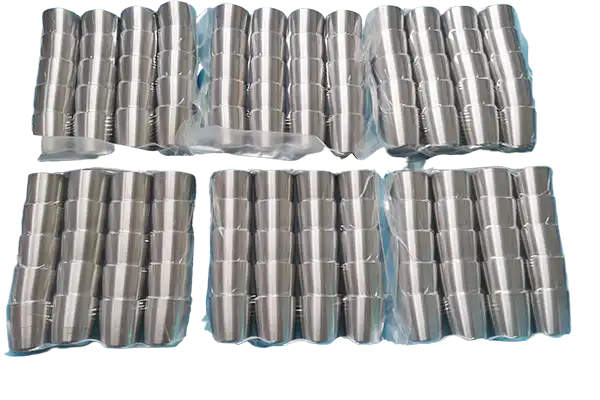

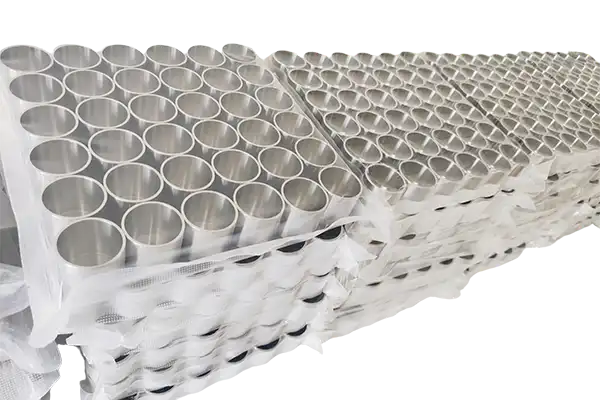

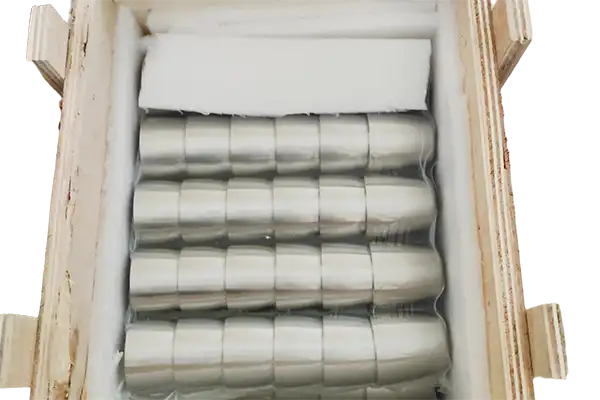

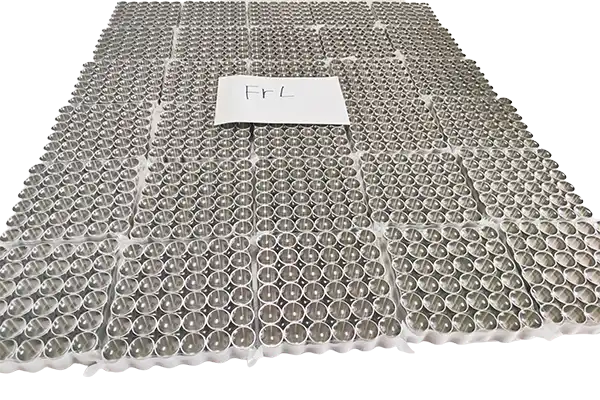

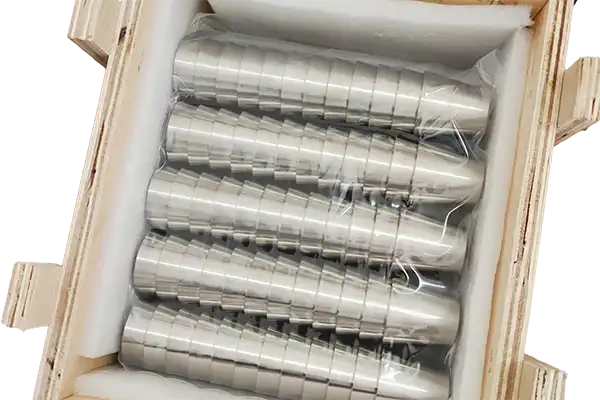

Our Packaging
