High Purity 702 Zirconium Crucible (Zr702) - Custom Sizes Available

Place of Origin: Baoji, Shaanxi, China (Mainland)
Brand: FRL metal
Density: 6.51g/cm3
Grade: R60702
Purity: ≥99.2% (Zr+Hf) Specifications: 5-50ml (Custom sizes available)
Manufacturing Process: Hot rolling, cold rolling, annealing
Surface Treatment: Pickling/Bright finish
Packaging Details:Plywood case
Certification: ISO 9001
Delivery Time:5~7days
Payment Terms: Wire TransferT/T
Product Description

Description

The 702 Zirconium Crucible (Zr702) is a high-performance refractory vessel designed for extreme environments. Manufactured from high-purity Zirconium (Zr+Hf ≥ 99.2%), it offers superior corrosion resistance against molten metals and alkalis compared to standard ceramics.

With a melting point of roughly 1852°C and the ability to withstand operating temperatures up to 2200°C, it is the ideal choice for vacuum induction melting, experimental thermal analysis, and growing high-purity crystals. Our crucibles ensure low contamination, making them perfect for processing precious metals (Gold, Platinum) and rare earth elements.

Product Specifications

Name High Purity 702 Zirconium Crucible
Material Zirconium & Zirconium alloy
Grade R60702, Also available:R60705, R60001
Purity R60702: ≥99.2% (Zr+Hf) Also available R60705: ≥95.5% (Zr+Hf)R60001/R60901: ≥99.95%
Density 6.51 g/cm³
Type Low form zirconium crucible, flanged rims zirconium crucible,straight wall zirconium crucible, tapered zirconium crucible, Cylindrical zirconium crucible.
Capacity 50ml, We can also produce and design these volume 5ml,10ml,15ml,20ml,25ml,30ml,35ml,40ml,45ml etc.
Wall thickness 1mm,2mm,or custom.
Custom Yes, process as per customer's drawing.

Picture display

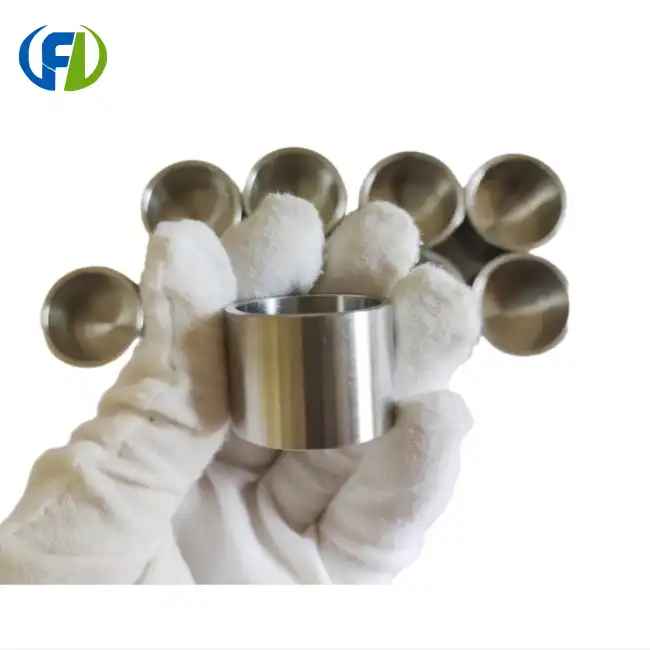

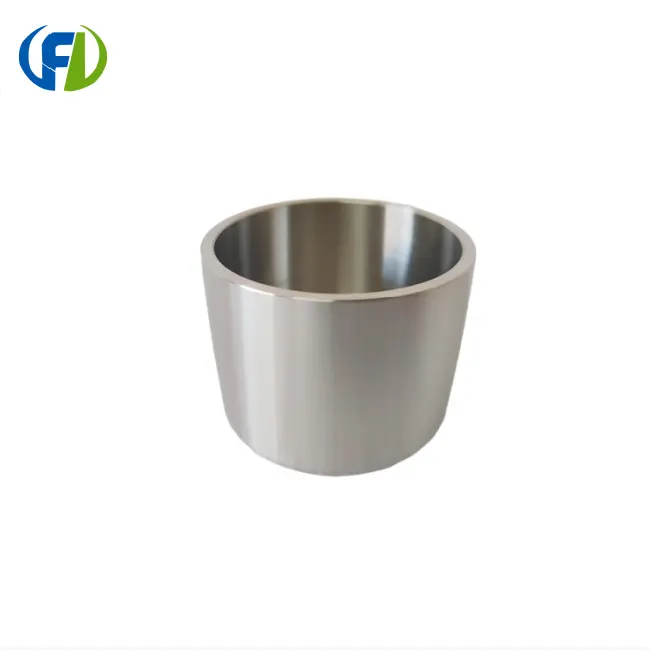

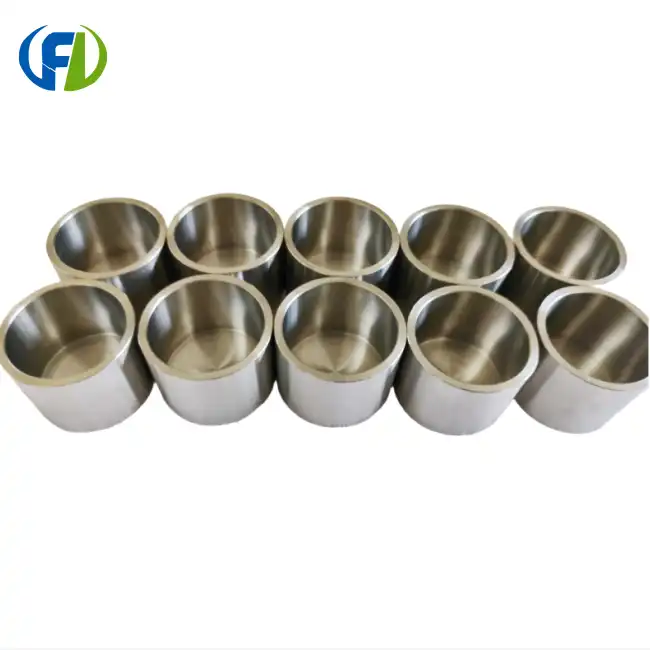

Internal view of Zirconium Crucible for melting gold Customized 702 zirconium crucible Side view of Zr702 Crucible showing smooth surfac

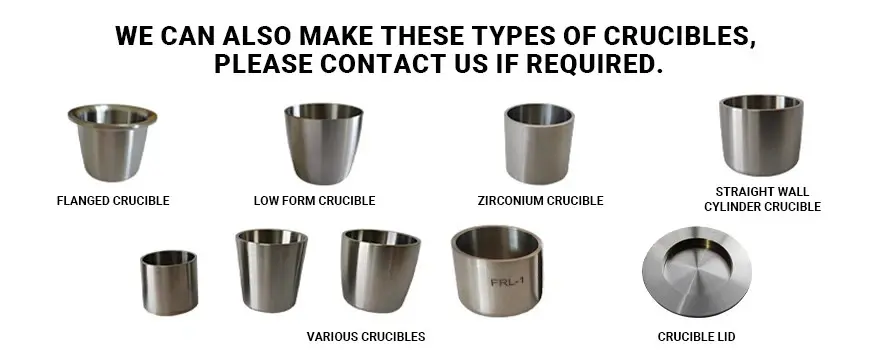

Zirconium crucibles in various shapes



WhatsApp&Wechat: +86 13571190943
E-mail: Jenny@bjfreelong.com
Address: No.188. Gaoxin Ave, Baoji City, Shannxi, China.

High Purity 702 Zirconium Crucible (Zr702) contact information


Comparison of Chemical Composition of R60702/R60705 Zirconium Crucibles



Grade Element composition(%)<
Zr+Hf Hf Fe Fe+Cr Sn H N C Nb O
R60702 99.2 4.5   0.2 / 0.005 0.025 0.05 / 0.16
R60705 95.5 4.5   0.2 / 0.005 0.025 0.05 2.0~3.0 0.18
R60001 / 0.010 0.150 / 0.0050 0.0025 0.0065 0.027 / /



Zirconium Crucible Key Applications

Precious Metal Melting: Gold, Silver, Platinum, Palladium refining.

Laboratory Analysis: X-ray Fluorescence (XRF) fusion, Alkaline fusion.

Crystal Growth: Sapphire, Lithium Niobate crystal growing.

Vacuum Industry: Evaporation boats and high-temp containers.

Zirconium Crucible Key Applications
R60702 Zirconium Crucible Laboratory Application Diagram

zirconium crucible Laboratory Application Diagram



Actual measured dimensions of various zirconium crucibles



zirconium crucible size display

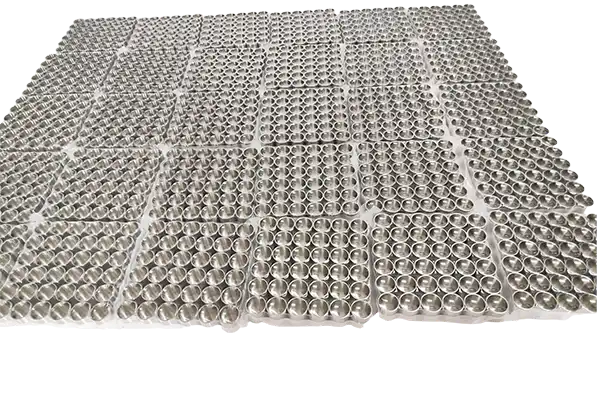

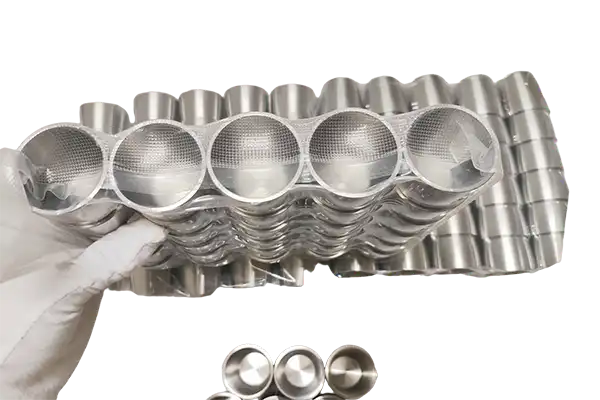

Our Packaging

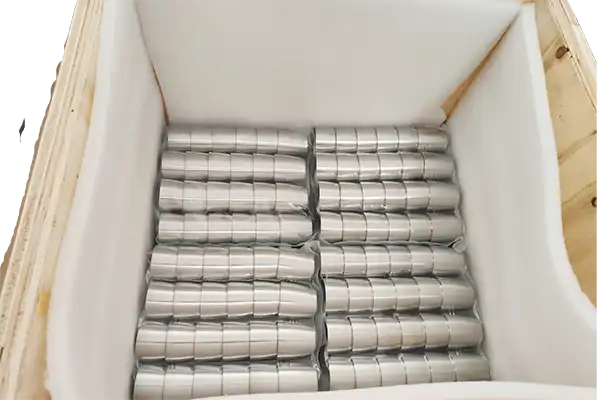

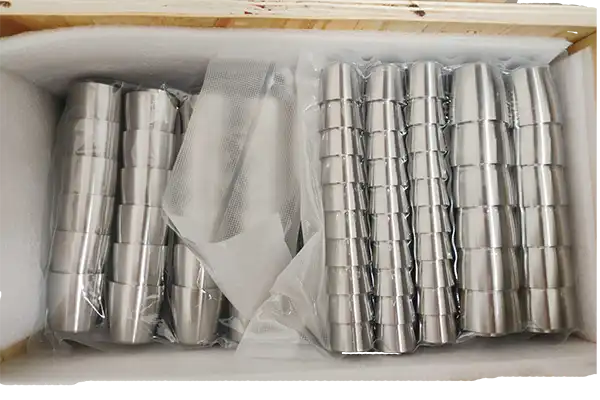

Plywood case packaging for Zirconium Crucible export

Frequently Asked Questions (FAQ)

Q1: What is the purity of your 702 zirconium crucibles?
A: Our 702 (Zr702) zirconium crucibles have a purity of ≥99.6% (Zr+Hf), meeting ASTM B551 standards.

Q2: What sizes are available for the 702 zirconium crucible?
A: We offer standard sizes including 15ml, 25ml, 30ml, 35ml, 40ml, 45ml, 50ml, 55ml, 60ml. Custom sizes are also available upon request.

Q3: What types of zirconium crucibles do you offer?
A: We supply low form zirconium crucibles, flanged rim zirconium crucibles, straight wall zirconium crucibles, tapered zirconium crucibles, and cylindrical zirconium crucibles.

Q4: Can you customize the zirconium crucibles?
A: Yes, we specialize in customization. We can manufacture crucibles according to your specific drawings, including custom wall thickness (1mm, 2mm, or other specifications), size, and shape.

Q5: Do you provide certification with the products?
A: Yes, every batch comes with a Mill Test Certificate (MTC) detailing chemical composition and mechanical properties to ensure compliance with ASTM standards.
