High Purity Zirconium Crucible (R60702/R60705) - ASTM B551 Manufacturer

Origin: Baoji, Shaanxi, China
Brand: FRL Metal
Density: 6.51 g/cm³
Grade: R60702
Standard: ASTM B551
Minimum Order Quantity: 1pc
Shape: Customizable per Drawing
Delivery Time: 3-5 Days (Stock) / 15-20 Days (Custom)
Payment Terms: T/T
Certification: ISO 9001
Packaging Details: Standard Export Plywood Case
Product Description

High Purity Zirconium Crucible

Product Introduction FRL Metal manufactures premium Zirconium Crucibles designed for demanding laboratory and industrial applications. Available in high-purity grades R60702 and R60705, these crucibles offer exceptional resistance to corrosive media and high-temperature stability. Manufactured in strict accordance with ASTM B551 and ASTM B338 standards, our zirconium crucibles are ideal for chemical processing, metallurgical analysis, and crystal growth. We provide both standard sizes and fully customized solutions based on customer drawings.

Name High Purity Zirconium Crucible
Material Zirconium & Zirconium alloy
Grade R60702, also available R60705,R60001
Purity

R60702: (Zr+Hf ≥ 99.2%)

R60705: (Zr+Hf ≥ 95.5% + Nb 2.0-3.0%)

Density 6.51 g/cm³

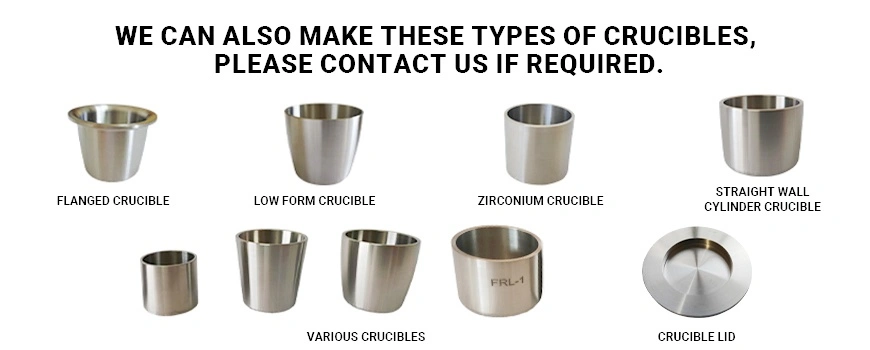

Type Low form zirconium crucible, flanged rims zirconium crucible,straight wall zirconium crucible, tapered zirconium crucible, Cylindrical zirconium crucible.
Capacity 50ml, We can also produce and design these volume 5ml,10ml,15ml,20ml,25ml,30ml,35ml,40ml,45ml etc.
Wall thickness 1mm,2mm,or custom.
Custom Yes, process as per customer's drawing.

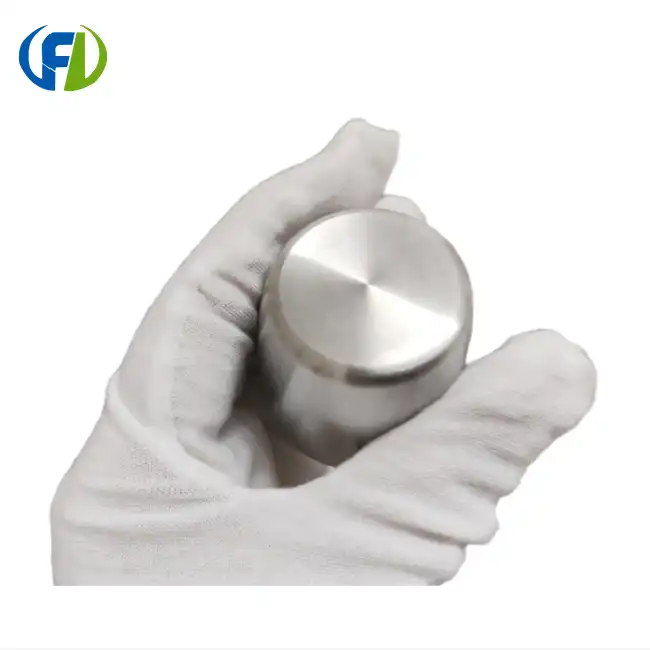

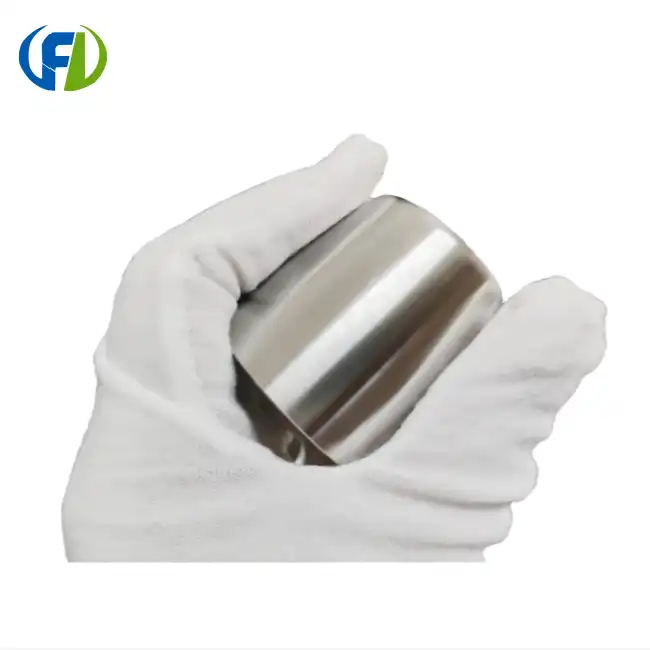

 High Purity Zirconium Crucible picture display

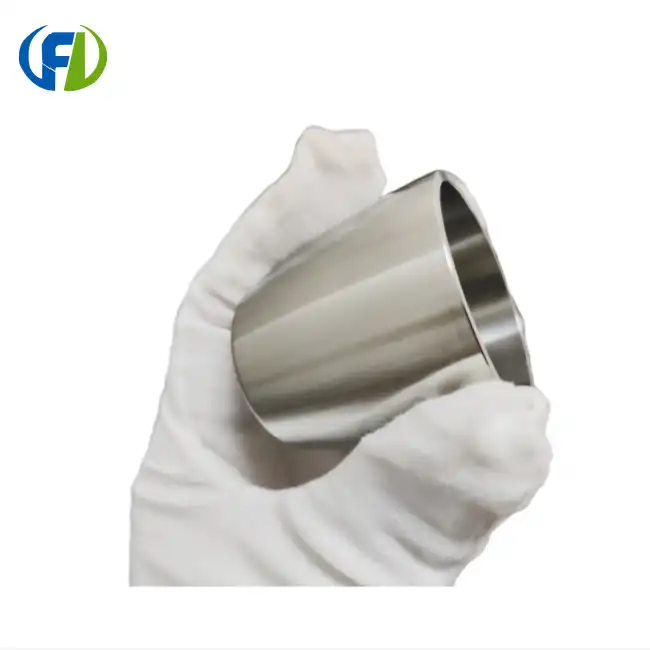

Tapered Zirconium Crucible Custom Size per Drawing Low Form Zirconium Crucible for High Temperature Sintering Customized high Purity Zirconium Crucible High Purity R60702 Zirconium Crucible - Front View

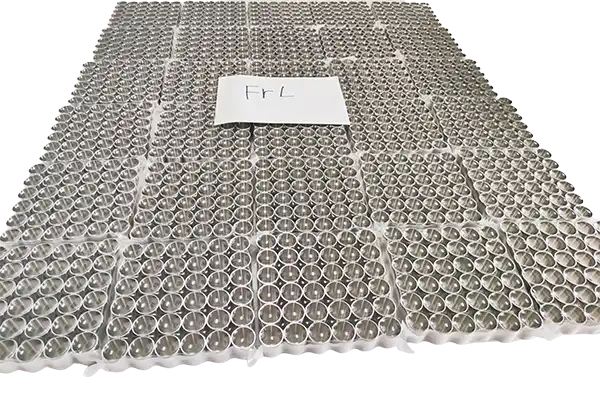

Zirconium crucibles in various sizes

WhatsApp&Wechat: 86 13571190943
E-mail: Jenny@bjfreelong.com

Contact Information for Zirconium Crucibles

Chemical composition of zirconium crucibles

Grade Element composition(%)<
Zr+Hf Hf Fe Fe+Cr Sn H N C Nb O
R60702 99.2 4.5   0.2 / 0.005 0.025 0.05 / 0.16
R60705 95.5 4.5   0.2 / 0.005 0.025 0.05 2.0~3.0 0.18
R60001 / 0.010  0.150  / 0.0050  0.0025 0.0065 0.027 / /

Key Features & Advantages

Superior Corrosion Resistance: Zirconium forms a protective oxide film, offering outstanding resistance to acids, alkalis, and molten salts. It outperforms many stainless steels and nickel alloys in aggressive chemical environments.

High-Temperature Stability: With a melting point of ~1855°C, zirconium crucibles maintain structural integrity under extreme heat. In vacuum or inert gas environments, they can safely withstand temperatures up to 1500°C without significant degradation.

Excellent Thermal Conductivity: Zirconium ensures rapid and uniform heat distribution, reducing thermal gradients and preventing sample hot spots during sintering or melting processes.

Custom Precision Manufacturing: We offer OEM services with tight tolerances. Crucibles can be fabricated to exact dimensions, wall thicknesses, and surface finishes (Ra 0.8–3.2) per your technical drawings

 Our Advantage

1. Precision Custom Manufacturing Unlike standard catalog suppliers, FRL Metal specializes in bespoke crucible fabrication. Whether you need non-standard dimensions, specific wall thicknesses, or unique rim designs, our engineering team can produce to your exact drawings with tolerances as tight as ±0.05mm.

2. Strict Quality Assurance System Our ISO9001:2015-certified facility implements multi-stage quality checks. From raw material inspection to final dimensional and surface finish verification, every crucible is tested before shipment.

3. Competitive Factory-Direct Pricing As a manufacturer based in Baoji—the center of China’s rare metal industry—we eliminate middlemen. This allows us to offer highly competitive pricing without compromising quality, especially beneficial for bulk orders and long-term partnerships.

5. Flexible MOQ & Fast Turnaround We understand R&D and pilot-scale needs. Our minimum order quantity starts at just 1 piece for standard sizes, with stock items shipping within 3-5 days. Custom orders typically complete in 15-20 days, ensuring your projects stay on schedule.

FAQ

Q1: What is the maximum operating temperature for zirconium crucibles?

A: In air, zirconium crucibles should not exceed 400–500°C due to oxidation risk. In vacuum or inert atmosphere (argon), they can safely operate up to approximately 1500°C. Always consider atmosphere conditions when selecting zirconium for high-temperature applications.

Q2: What is the difference between R60702 and R60705 zirconium crucibles?

A: R60702 is unalloyed zirconium with excellent corrosion resistance and ductility. R60705 contains 2.0–3.0% niobium, providing higher strength and improved resistance to certain corrosive environments.

Q3: Are zirconium crucibles the same as zirconia (ZrO₂) crucibles?

A: No. Zirconium crucibles are made from metallic zirconium (Zr), while zirconia crucibles are ceramic (ZrO₂). Metallic zirconium offers better thermal conductivity and ductility but oxidizes in air above 500°C. Zirconia ceramic can withstand higher temperatures in air but is brittle.

Q5: Can you manufacture zirconium crucibles to custom dimensions?

A: Yes. We offer full OEM/ODM services. Provide your drawing or specifications (inner/outer diameter, height, wall thickness, rim style), and we will produce crucibles to your exact requirements with tight tolerances.

Q6: What is the minimum order quantity (MOQ)?

A: For standard sizes, MOQ is 1 piece. For custom-designed crucibles, MOQ may vary depending on complexity. Please contact us for specific requirements.

Q8: How do you package zirconium crucibles for shipping?

A: Each crucible is individually wrapped in protective foam to prevent surface damage, then packed in sturdy export-grade plywood cases. This ensures safe delivery for both domestic and international shipments.

Measured Dimensions of Zirconium Crucibles

zirconium crucible size display​​​​​​​

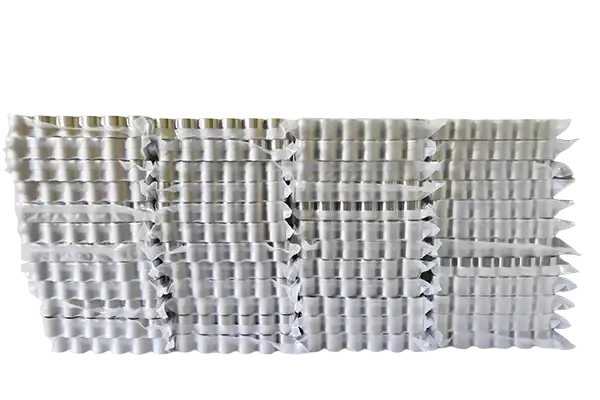

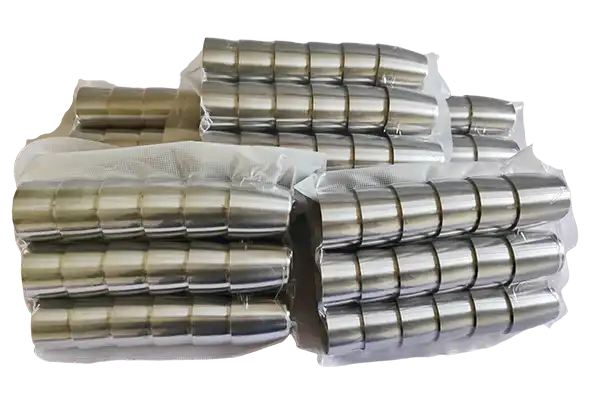

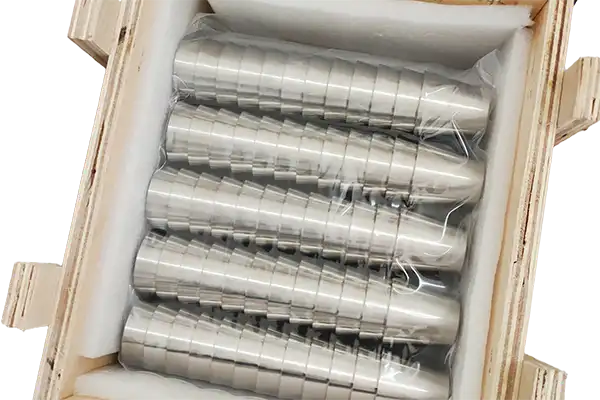

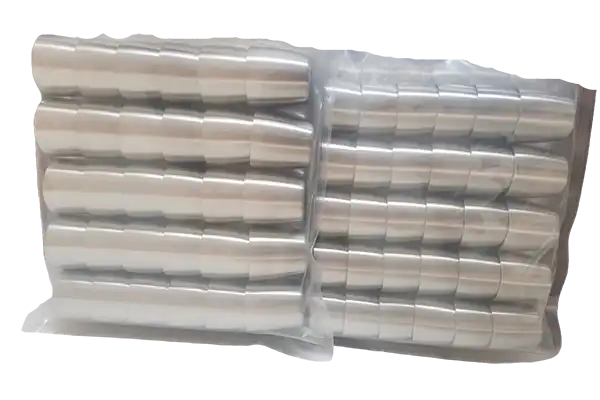

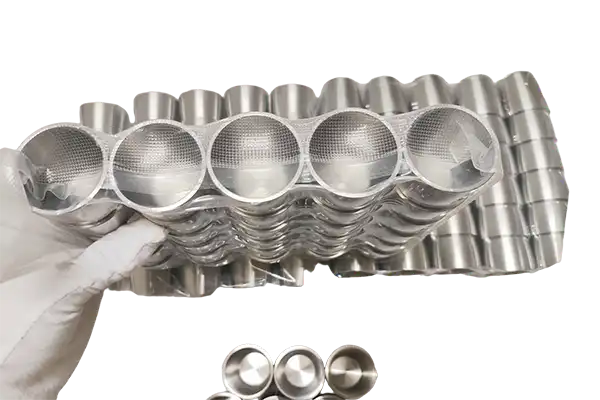

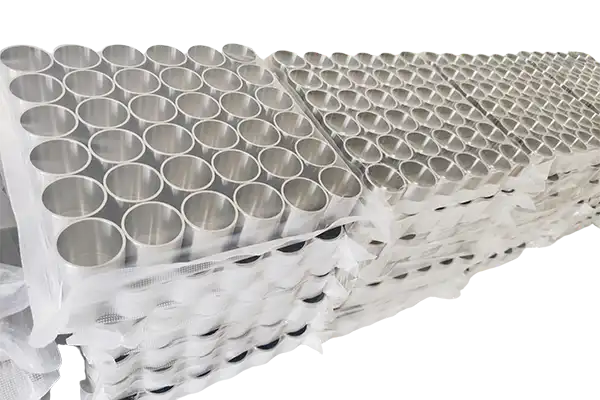

Our Packaging
