Custom Flange Lip Zirconium Crucible (R60702 / R60705)

Origin: Baoji, Shaanxi, China
Brand: FRL Metal
Density: 6.51 g/cm³
GradeR60702 (Zr702), R60705 (Zr705), R60001 Minimum Order Quantity: 1pc
Shape: Customizable per Drawing
Packaging Details: Plywood case
Delivery Time:5~7days
Payment Terms: T/T
Certification: ISO 9001
Product Description

Product Introduction

​​​​​​​The Flange Lip Zirconium Crucible is a specialized high-temperature container engineered for demanding laboratory and industrial applications. Manufactured from high-purity zirconium metal (≥99.95%), these crucibles feature a distinct flanged rim design that facilitates secure handling with tongs, ensures stable placement on furnace supports, and provides an excellent sealing surface when used with matching lids. FRL Metal produces flange lip zirconium crucibles in standard UNS grades R60702 (Zr702) and R60705 (Zr705), offering exceptional performance in corrosive and high-temperature environments.

Unlike ceramic alternatives, metallic zirconium crucibles provide superior thermal shock resistance and mechanical durability. The flange lip geometry not only improves operational safety but also minimizes sample contamination during critical sintering, melting, and annealing processes. Available in capacities ranging from 5ml to 50ml with customizable wall thicknesses, our crucibles are precision-manufactured to meet exacting dimensional tolerances.

Name Custom Flange Lip Zirconium Crucible
Material Zirconium & Zirconium alloy
Grade R60702 (Zr702), R60705 (Zr705), R60001
Purity ≥99.95%
Density 6.51 g/cm³
Type Flange Lip, Straight Wall, Tapered, Cylindrical
Capacity 5ml,10ml,15ml,20ml,25ml,30ml,35ml,40ml,45ml 50ml etc.
Wall thickness 1mm, 2mm, or Custom
Custom Yes, process as per customer's drawing.

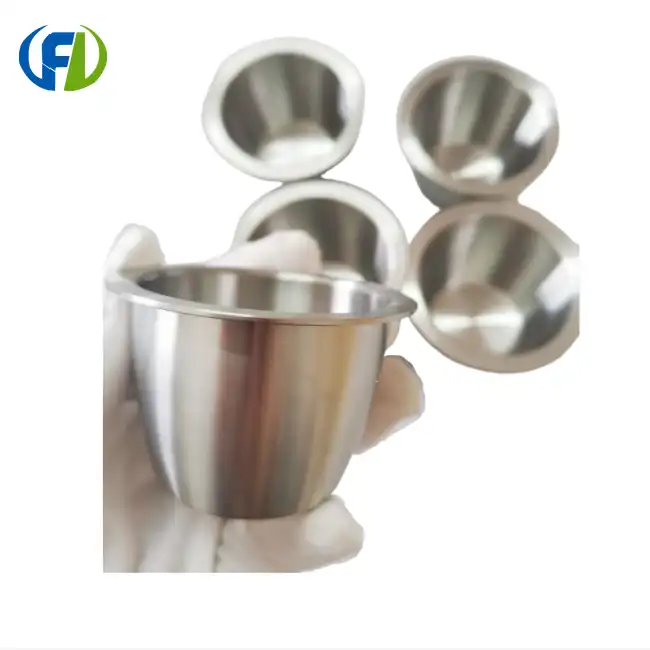

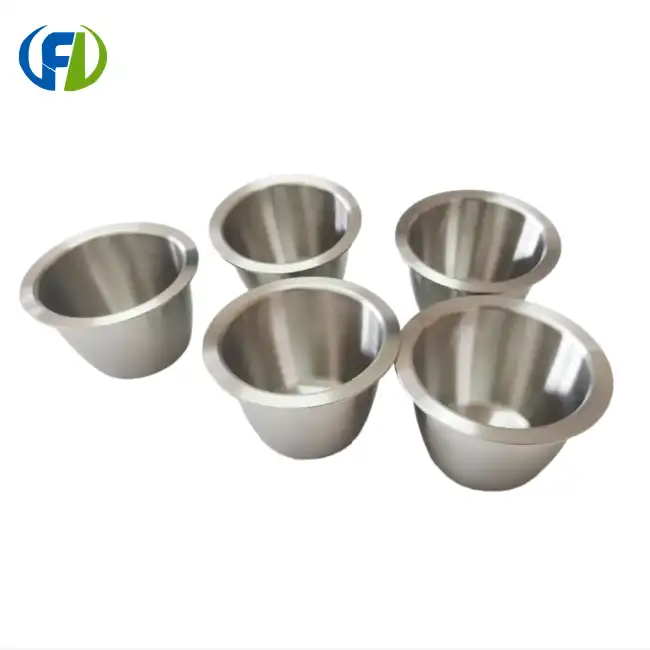

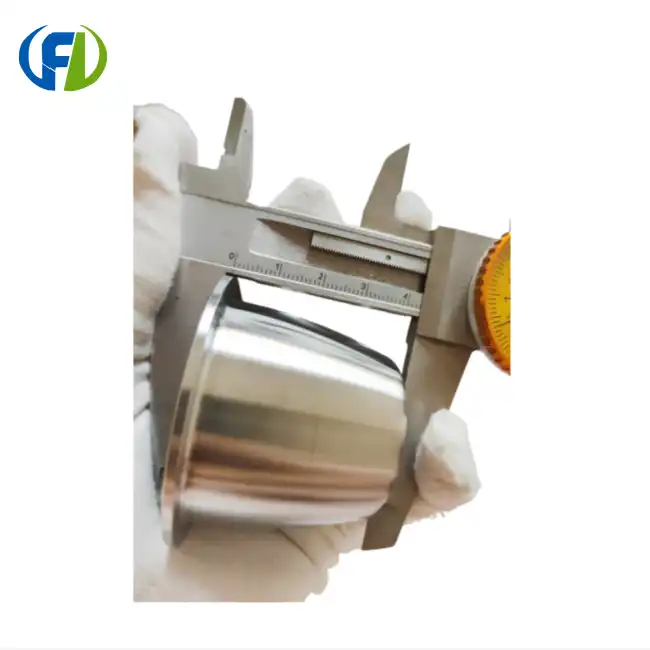

 Flange Lip Zirconium Crucible display

Flange Lip Zirconium Crucible R60702 Custom Lab Crucible Multiple Sizes Flange Lip Zirconium Crucibles 5ml to 50ml Zirconium Flange Lip Crucible Close Up Showing Rim Design
​​​​​​​
Zirconium Flange Lip Crucible Close Up Showing Rim Design

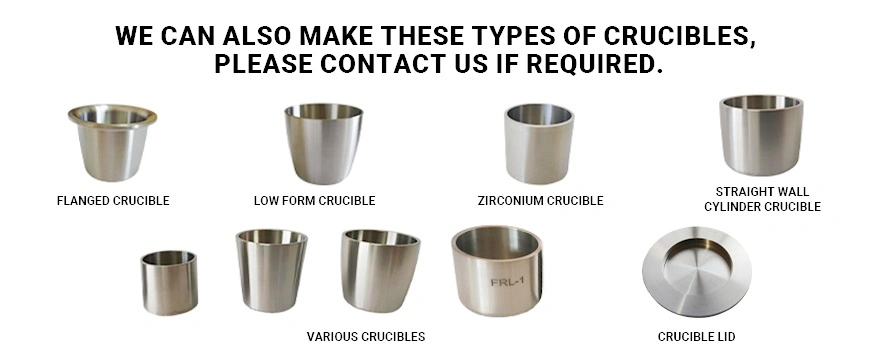

Images of various zirconium crucibles



Chemical Composition

Grade Element composition(%)<
Zr+Hf Hf Fe Fe+Cr Sn H N C Nb O
R60702 99.2 4.5   0.2 / 0.005 0.025 0.05 / 0.16
R60705 95.5 4.5   0.2 / 0.005 0.025 0.05 2.0~3.0 0.18
R60001 / 0.010  0.150  / 0.0050  0.0025 0.0065 0.027 / /
R60901(Zr-2.5Nb) / 0.010  0.150  / 0.0050  0.0025 0.0080  0.027 2.40-2.80 0.09-0.15


Advantages

• Exceptional Corrosion Resistance: High-purity zirconium metal exhibits outstanding resistance to a wide range of acids, alkalis, and molten salts, making it ideal for aggressive chemical environments where ceramic or metallic alternatives would fail.

• High-Temperature Stability: With a melting point of approximately 1855°C, zirconium crucibles maintain structural integrity and dimensional stability at elevated temperatures, suitable for prolonged sintering and thermal processing.

• Superior Thermal Shock Resistance: Zirconium metal demonstrates excellent resistance to rapid temperature changes, reducing the risk of cracking or failure during heating and cooling cycles compared to brittle ceramic crucibles.

• Enhanced Sealing Performance: The precision-machined flange lip provides a flat, uniform sealing surface that effectively minimizes sample volatilization and oxidation during high-temperature operations.

• Low Contamination Risk: The inert nature of high-purity zirconium ensures minimal interaction with sample materials, preserving the chemical composition and purity of sensitive experimental specimens.​​​​​​​

Application Range

Flange lip zirconium crucibles are extensively utilized across advanced materials research and industrial production. In laboratory settings, they serve as primary containers for high-temperature sintering of advanced ceramics, rare earth oxides, and specialty alloys. They are also widely employed in catalyst development, nuclear materials research, and analytical chemistry where ultra-high purity is mandatory. In industrial production, these crucibles support large-scale material synthesis, vacuum melting processes, and high-temperature chemical vapor deposition (CVD) applications requiring reliable containment of reactive materials.

Our Advantage

• Advanced Equipment: State-of-the-art vacuum melting and precision machining facilities ensure consistent quality and tight dimensional tolerances.

• Premium Products: 100% pure zirconium raw materials with full traceability and rigorous quality inspection at every production stage.

• Competitive Pricing: Direct manufacturer pricing with no intermediaries, offering optimal cost-performance for both prototype and bulk orders.

• Certified Quality: ISO 9001:2015 certified quality management system with comprehensive Mill Test Certificates (MTC) provided for every shipment.

• Professional Service: Dedicated technical support for custom design consultation, rapid prototyping, and reliable 5-7 day delivery for standard sizes.

FAQ

1. What is a flange lip zirconium crucible?

A flange lip zirconium crucible is a high-temperature laboratory container made from pure zirconium metal, featuring an outward-flanged rim. The flange design provides a secure gripping surface for tongs, improves stability on furnace supports, and creates a flat sealing surface for the lid to minimize sample loss during high-temperature processes.

2. What is the maximum operating temperature for zirconium crucibles?

Pure zirconium metal has a melting point of approximately 1855°C. For safe long-term operation, we recommend a maximum continuous working temperature of 1200-1400°C in inert or vacuum atmospheres. Zirconium metal should NOT be used in oxidizing atmospheres above 500°C, as it will rapidly oxidize.

3. What zirconium grades do you offer for crucibles?

We primarily manufacture flange lip crucibles in UNS R60702 (Zr702) and UNS R60705 (Zr705), which are the most widely used grades for laboratory crucibles due to their excellent corrosion resistance and formability. R60001 and R60901 are also available upon request for specialized applications.

4. What is the difference between flange lip and straight wall zirconium crucibles?

Flange lip crucibles feature an outward-rolled rim that makes them easier to handle with crucible tongs and provides a better sealing surface for lids. Straight wall crucibles have a simple cylindrical shape without the flange, which may be preferred for certain furnace configurations or when nesting multiple crucibles.

5. Can you customize flange lip zirconium crucibles to my specifications?

Yes, we offer full OEM/ODM customization. We can manufacture crucibles to your exact drawings, including custom dimensions, wall thicknesses, capacities, and flange geometries. Please provide your technical drawing or detailed specifications for a custom quotation.

6. What certifications and quality documentation do you provide?

​​​​​​​ All our zirconium crucibles are manufactured under an ISO 9001:2015 certified quality management system. We provide a Mill Test Certificate (MTC) with every shipment, verifying chemical composition, dimensions, and purity. Additional third-party testing is available upon request.

7. What is the MOQ and typical delivery time?

Our minimum order quantity is just 1 piece, making us ideal for research and prototyping. Standard sizes (5ml-50ml) typically ship within 5-7 days. Custom orders generally require 15-25 days depending on complexity and quantity.

8. How do I choose the right crucible capacity for my application?

Select a crucible capacity that is at least 2-3 times the volume of your sample to allow for thermal expansion and prevent overflow during sintering. Consider the sample’s density and any potential volume increase during processing. Our technical team can assist with capacity selection based on your specific application requirements.


Our Packaging

product-600-400
Package
product-600-400
Package
Package
Package
Package
Package
Package
Package
product-600-400
Package
product-600-400
Package
product-600-400
Package
product-600-400
Package
product-600-400
Package

About FRL Metal

Baoji Freelong New Material Technology Development Co., Ltd is headquartered in Baoji City — known as "China's Titanium Valley." As a professional manufacturer and exporter, we specialize in the production, OEM processing, and global sales of zirconium, titanium, nickel, niobium, tantalum and their alloys.

With years of industry experience, we have earned the trust of numerous clients and strategic partners worldwide. Our products have been authorized by leading enterprises across Australia, Korea, Germany, the United States, the United Kingdom, Malaysia, Central Asia, the Middle East, Taiwan and other regions.

At FRL Metal, quality and service are not just commitments — they are our core values. We strictly adhere to international standards (ASTM, AMS, etc.) and maintain ISO 9001 certification throughout our production process. Every batch undergoes rigorous testing to ensure it meets or exceeds customer specifications.

Whether you need standard products or custom solutions, our experienced team is ready to provide professional support from inquiry to delivery. We look forward to building a successful partnership with you.
