Rimmed Zirconium Crucible – 43mm Height, 50ml (R60702/R60705)

Origin: Baoji, Shaanxi, China
Brand: FRL Metal
Density: 6.51 g/cm³
Grade: Zr702 (R60702), Zr705 (R60705), R60001
Purity: ≥99.2% (Zr+Hf, min. per ASTM B551); typical ≥99.6%
Minimum Order Quantity: 1pc
Shape: Custom per customer drawing
Packaging Details:Plywood case
Delivery Time:5~7days
Payment Terms:T/T
Certification: ISO9001
Product Description

Product Description

1. Laboratory smelting
2.Chemical reagent reaction vessel
3. Sample container in high temperature experiments
4. Production of ceramic and glass craft products

Name zirconium crucible with flange 50ml
Material Zirconium & Zirconium alloy
Grade Zr702 (R60702), Zr705 (R60705), R60001
Purity ≥99.2% (Zr+Hf, min. per ASTM B551); typical ≥99.6%
Melting point about 1855℃ (pure zirconium)
Density 6.51 g/cm³

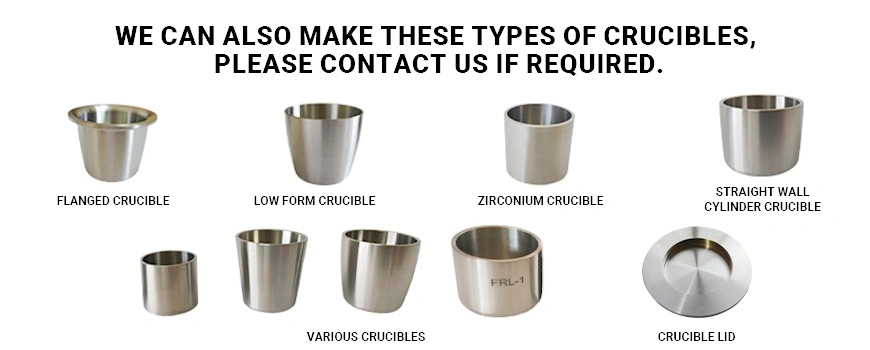

Type Low form zirconium crucible, flanged rims zirconium crucible,straight wall zirconium crucible, tapered zirconium crucible, Cylindrical zirconium crucible.
Capacity 50ml (in stock); custom: 5ml, 10ml, 15ml, 20ml, 25ml, 30ml, 35ml, 40ml, 45ml, etc.
Wall thickness 1mm,2mm,or custom.
Custom Yes, process as per customer's drawing.



Product Gallery

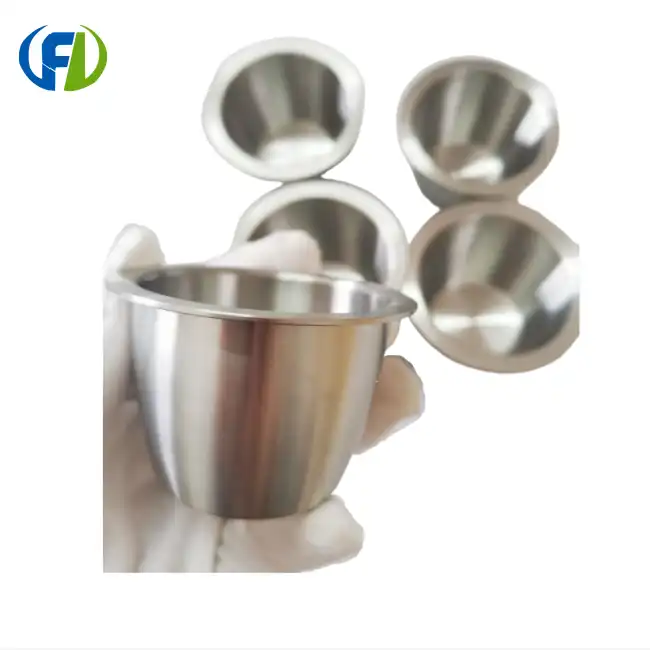

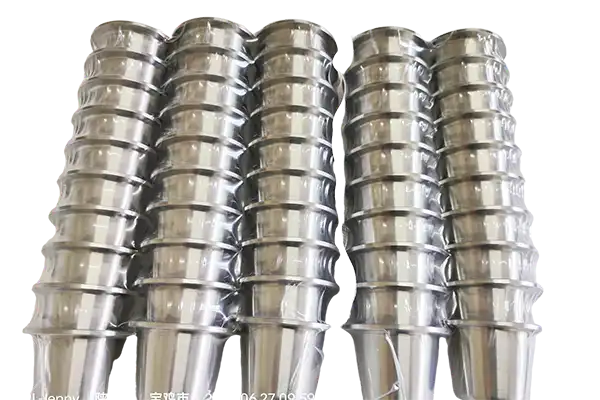

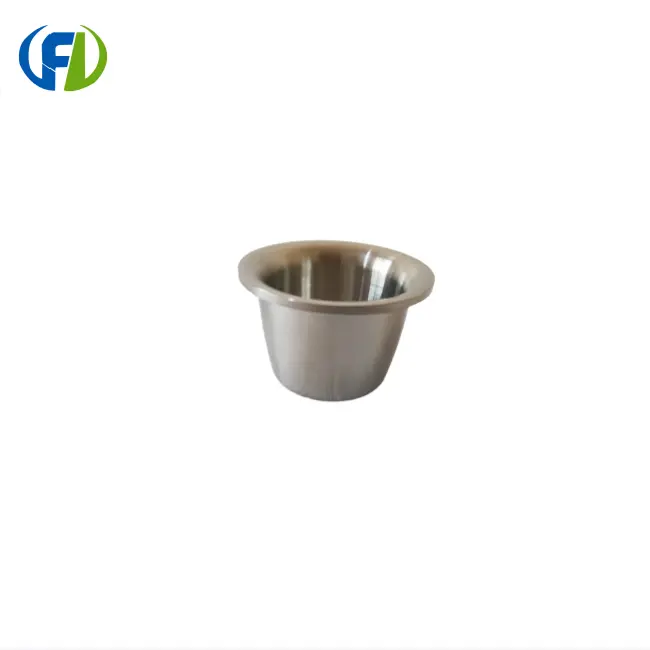

Rimmed zirconium crucible 43mm height, 50ml, high purity R60702 Rimmed zirconium crucible 43mm height, 50ml, high purity R60702 Zirconium crucible size chart Customized Height 43mm Rimmed Zirconium Crucible

Height 43mm Rimmed Zirconium Crucible factory

WhatsApp&Wechat: +86 13571190943
E-mail: Jenny@bjfreelong.com

Discount Height 43mm Rimmed Zirconium Crucible





Material Chemical Composition

Grade Element composition(%)<
Zr+Hf Hf Fe Fe+Cr Sn H N C Nb O
R60702 99.2 4.5   0.2 / 0.005 0.025 0.05 / 0.16
R60705 95.5 4.5   0.2 / 0.005 0.025 0.05 2.0~3.0 0.18
R60001 / 0.010  0.150  / 0.0050  0.0025 0.0065 0.027 / /


Available Sizes

Capacity (ml) Diameter Top (mm) Diameter bottom (mm) Height (mm)
15 36 32 23
20 35 32 32
25 47 40 23
35 42 32 42
45 47 40 35
50 59 40 43
55 47 40 42
75 51 44 42
100 59 53 46
250 83 72 60
500 102 89 66
1000 152 144 95
1500 152 144 108


Product Advantages

1. High temperature resistance: Zirconium crucible can withstand extremely high temperatures and is suitable for high temperature melting and heat treatment.
2. Corrosion resistance: Zirconium material has excellent chemical stability, is resistant to acid and alkali corrosion, and is suitable for reactions with various chemical reagents.
3. Good thermal conductivity: Uniform thermal conductivity is conducive to uniform heating of the sample.
4. High strength: Zirconium crucible has high strength and is not easy to deform or break.



Operating Instructions

1. Working Temperature in Air: For prolonged operation in air or oxidizing atmospheres, keep the working temperature at or below 350–550°C. Zirconium gradually oxidizes in air; the oxidation rate increases with temperature and exposure time.
2. Working Temperature in Vacuum/Inert Atmospheres: In high vacuum or high-purity inert gas (argon, helium), zirconium crucibles may be used up to approximately 1400– 1500°C, depending on vacuum level, gas purity, exposure time and mechanical loading.
3. Optional Pre-Oxidation: Before first high-temperature use, heat the new crucible gradually to 350–550°C and hold for 10–20 minutes, then cool slowly. This helps form a protective zirconium oxide (ZrO2) layer.
4. Avoid Thermal Shock: Heat and cool gradually. Never immerse a hot crucible in cold water or place it on a cold surface, as rapid cooling may cause deformation or damage.
5. Important Note: These are general recommendations, not guaranteed material limits. Actual service temperature depends on atmosphere, oxygen/moisture content, vacuum level, holding time, material being melted, wall thickness and mechanical loading

Quality Control

1. Visual inspection: check for surface defects such as scratches, dents and irregularities.

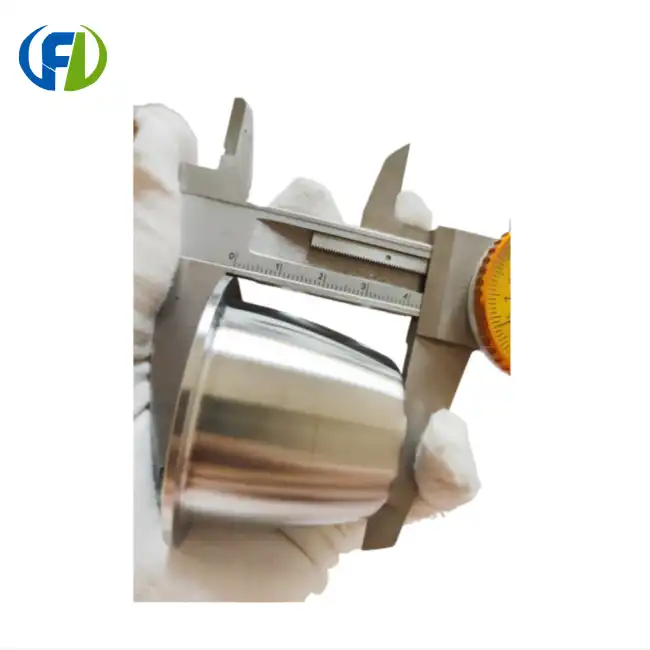

2. Dimensional verification: verify diameter, height, wall thickness and shape with
precision instruments.
3. Surface quality check: confirm a smooth finish to prevent contamination.
4. Documentation: provide a mill test certificate (MTC, EN 10204 3.1) with chemical
composition; third-party test report available on request

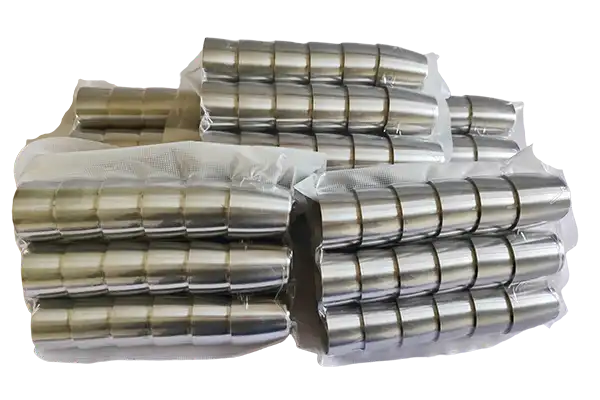

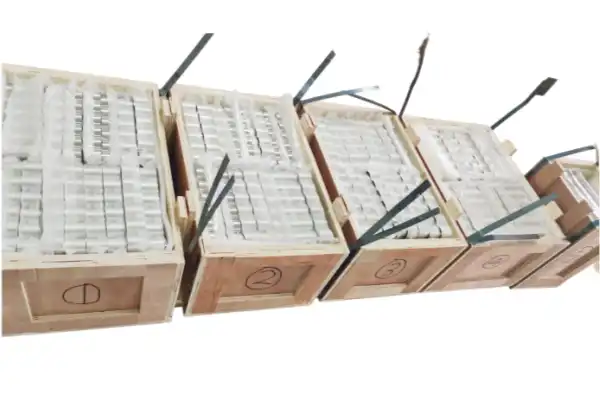

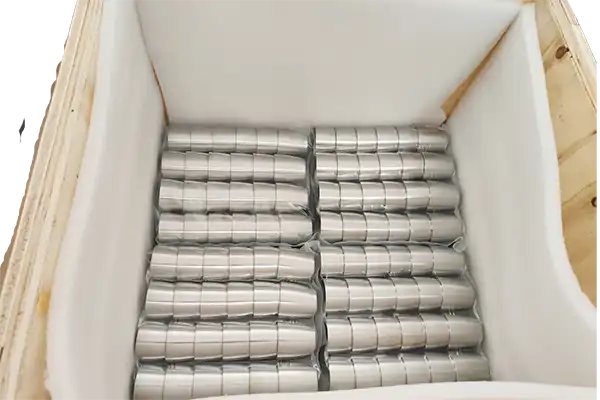

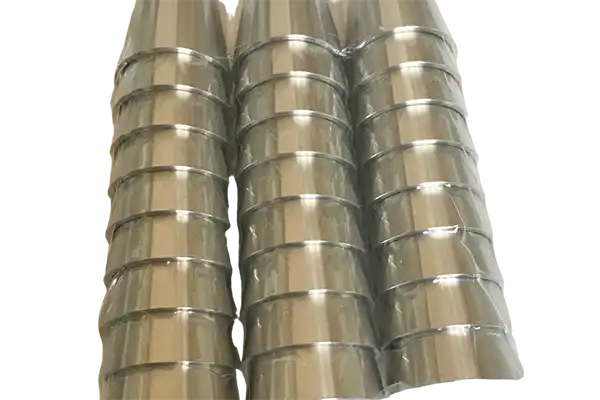

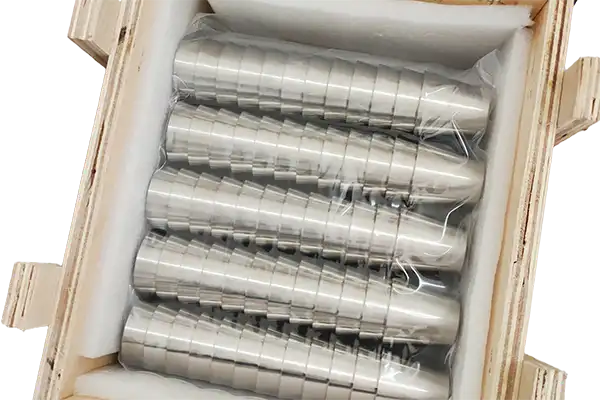

Our Packaging

product-600-400
Package
product-600-400
Package
Package
Package
Package
Package
Package
Package
product-600-400
Package
Package
Package
product-600-400
Package
product-600-400
Package
product-600-400
Package



FAQ

Q1 What grades are available for this rimmed zirconium crucible?
A1: We supply Zr702 (R60702), Zr705 (R60705), R60001 and R60901 (Zr-2.5Nb). Zr702 is pure
zirconium with excellent corrosion resistance; Zr705 offers higher strength at elevated
temperatures.

Q2 What is the purity of the crucible?
A2: Minimum purity is 99.2% (Zr+Hf) per ASTM B551, with typical purity of 99.6% or higher. A
mill test certificate (MTC, EN 10204 3.1) is provided with every batch.

Q3 Can the size and wall thickness be customized?
A3: Yes. 50ml is our standard in-stock size; we also produce 5ml, 10ml, 15ml, 20ml, 25ml, 30ml,
35ml, 40ml, 45ml and custom volumes, with wall thickness from 0.8mm to 2.5mm, strictly per
your drawings.

Q4 What is the maximum working temperature?
A4: Up to 500–550°C in air or oxidizing atmospheres; up to 1400–1500°C in vacuum or high-
purity inert gas, depending on vacuum level, atmosphere and crucible dimensions. See the
operating instructions on this page.

Q5 Do you provide samples and test reports?
A5: Yes. We keep spot stock and can send samples before order. Material reports are provided
with every order; third-party test reports are available on request.

Q6 What is the lead time and payment term?
A6: Standard sizes ship within 3–5 days; custom orders generally take 7–15 working days.
Payment by T/T (bank transfer)
