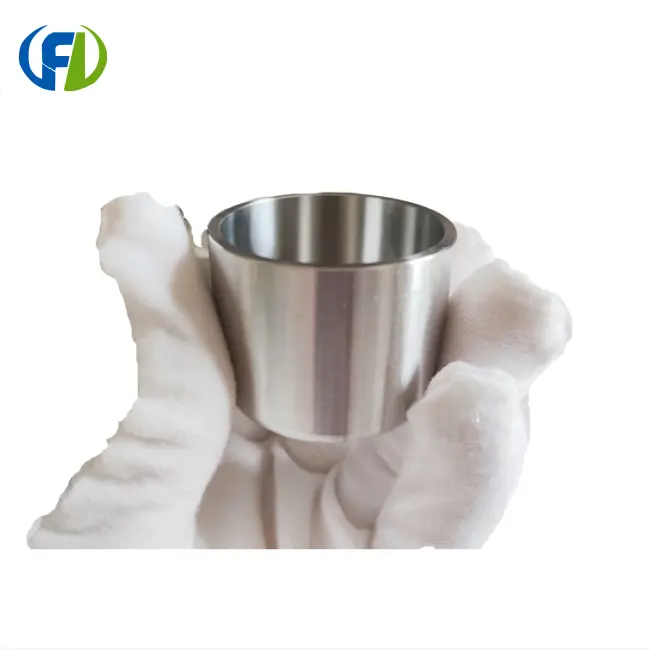

Low Form Zirconium Crucible (Zr702/Zr705) - High Purity Lab Grade

Origin: Baoji, Shaanxi, China
Brand: FRL Metal
Density: 6.51 g/cm³
Grade: R60702,R60705,R60001,R60901
Purity:R60702: (Zr+Hf ≥ 99.2%) R60705: (Zr+Hf ≥ 95.5% + Nb 2.0-3.0%)
Minimum Order Quantity: 1pc
Shape: Can be customized according to your requirements
Packaging Details: Plywood case
Delivery Time:5~7days
Payment Terms:T/T
Certification: ISO9001
Product Description

Low form zirconium crucibles detailed introduction:

Low form zirconium crucibles are a common laboratory and industrial material container, made of commercial pure zirconium (Zr702/Zr705), which has high temperature resistance and corrosion resistance. They are designed with a low form, wide-bore, and flat-bottomed construction to provide greater surface area and better heat transfer. It is designed with a low form, wide-bore, and flat-bottomed construction to provide greater surface area and better heat transfer. low form zirconium crucibles are used in a variety of laboratory and industrial applications, especially in high temperature and corrosive environments.

Low form zirconium crucibles are mainly used in the following aspects:

1.Preparation of molten samples: Due to its excellent high temperature resistance, low form zirconium crucibles can be used to prepare and melt various metal, ceramic and glass samples.

2.High-temperature reaction: Zirconium crucibles can withstand chemical reactions and combustion processes at high temperatures, so they are widely used in the fields of catalyst research, combustion experiments, and high-temperature synthesis.

3.Thermal analysis:low form zirconium crucibles can be used in thermal experiments such as thermogravimetric analysis, differential thermal analysis and thermal conductivity measurement to study the thermal properties and thermal stability of materials.

 Parameter  Details
 Product Name  Low Form Zirconium Crucible (Zr702/Zr705)(Customizable)
 Material Grade  R60702 R60705(Also available: R60001, R60901)
 Purity R60702: (Zr+Hf ≥ 99.2%) R60705: (Zr+Hf ≥ 95.5% + Nb 2.0-3.0%)
 Origin  Baoji, Shaanxi, China (Titanium Valley)
 Available Volumes  5ml, 10ml, 15ml, 20ml, 25ml, 30ml, 35ml, 40ml, 50ml, etc.

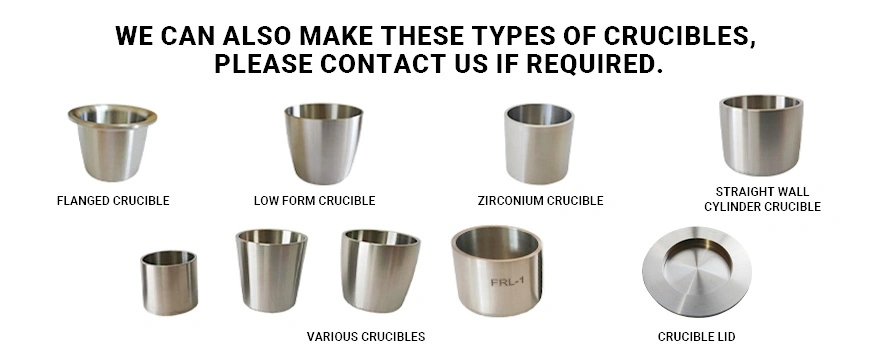

 Crucible Types  Low form, Flanged rim, Straight wall, Tapered, Cylindrical
 Wall Thickness  Standard: 0.8mm - 2.5mm (Customizable per drawing)
 Surface Finish  Polished / Pickled (Bright finish available)
 Service Life  >100 cycles (for 2mm wall thickness in standard fusion)
 Customization  Yes, we manufacture strictly according to customer drawings.

FRL Metal supplies low form zirconium crucibles manufactured from Zr702 (Grade 2) and Zr705 (Grade 5) commercial pure zirconium. The low form design features a wide mouth, flat bottom, and low profile body, making it ideal for rapid heating, easy sample access, and maximum surface exposure during high-temperature experiments. Our zirconium crucibles comply with ASTM B337/B338 standards and are widely used in nuclear fuel processing, chemical analysis, materials research, and high-purity metal melting applications.

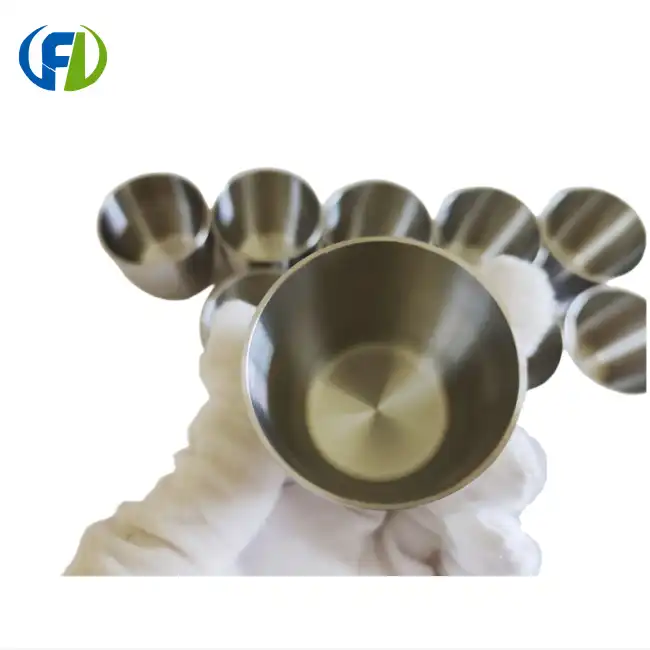

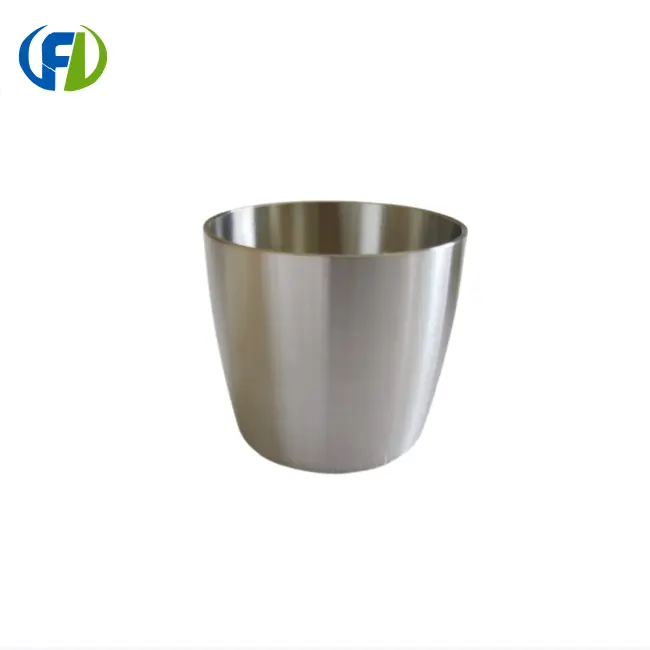

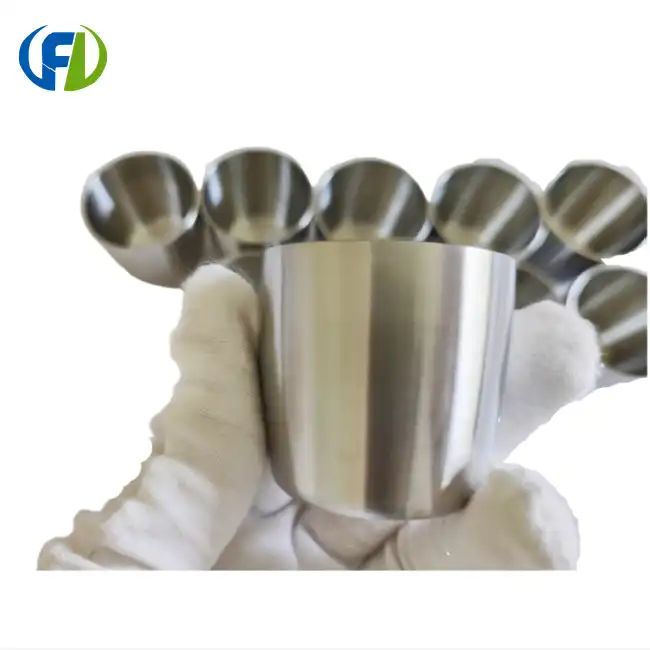

Low form zirconium crucibles Picture display

Low form zirconium crucible Zr702 FRL Metal Zirconium crucible polished surface close-up FRL Metal Customized Low Form Zirconium Crucible Low form zirconium crucible wide mouth design FRL Metal


Discount Low Form Zirconium Crucible

WhatsApp&Wechat: +86 13571190943
E-mail: Jenny@bjfreelong.com

Discount Low Form Zirconium Sample



Composition of our Zirconium crucible materials

Grade Element composition(%)<
Zr+Hf Hf Fe Fe+Cr Sn H N C Nb O
R60702 99.2 4.5   0.2 / 0.005 0.025 0.05 / 0.16
R60705 95.5 4.5   0.2 / 0.005 0.025 0.05 2.0~3.0 0.18
R60001 / 0.010 0.150 / 0.0050 0.0025 0.0065 0.027 / /
R60901 (Zr-2.5Nb) / 0.010 0.150 / 0.0050 0.0025 0.0080 0.027 2.40-2.80 0.09-0.15

​​​​​​​
Applications of Low Form Zirconium Crucible:

  • Nuclear industry: Used for high-temperature processing of nuclear materials and fuel cycle experiments where zirconium's low neutron absorption is critical
  • Chemical analysis: Ideal for high-temperature ashing, fusion preparation, and sample digestion due to the wide-mouth design enabling easy sample access and loading
  • Materials research: Suitable for high-temperature synthesis, sintering, and annealing of advanced ceramics, superconductors, and specialty alloys
  • Jewelry & dental: Used for melting precious metals and dental alloys in controlled environments
  • Semiconductor: Applied in crystal growth and semiconductor material processing where contamination must be minimized


The advantages of low form zirconium crucibles are as follows:

1.High temperature resistance: low form zirconium crucibles have excellent high temperature resistance and can withstand extreme temperatures up to 2800 degrees Celsius. This makes it ideal for handling high temperature experiments and fusion processes.

2.Corrosion resistance: Zirconium crucible has strong resistance to chemical media such as acid and alkali. It can operate stably in a variety of corrosive environments and will not be attacked or dissolved by most chemicals.

3.Excellent thermal conductivity: The low form zirconium crucible has good thermal conductivity, which can transfer heat quickly and maintain a uniform temperature distribution. This is very important for thermal experiments and melting processes to improve the accuracy and repeatability of experimental results.

4.High stability: Due to the material properties of the zirconium crucible, it has high chemical stability and thermal stability. It will not undergo structural changes, dissolve or fail, so it can be used stably for a long time.

5.Easy to clean and maintain:low formlow form zirconium crucibles have a smooth surface that is not prone to trapping impurities or residues. This makes cleaning and maintenance easier, facilitating accurate experimental results and a long service life.



FAQ

Q1: What is a low form zirconium crucible?
A: A low form zirconium crucible is a laboratory crucible made from commercial pure zirconium (Zr702/Zr705) featuring a wide-mouth, flat-bottom, low-profile design. This shape provides greater surface area for rapid heating and easy sample access, making it ideal for fusion preparation, ashing, and high-temperature chemical reactions.

Q2: What is the maximum service temperature of a zirconium crucible?
A: Pure zirconium has a melting point of approximately 1855°C. However, the maximum recommended service temperature for zirconium crucibles in air is typically 800-1000°C to prevent oxidation. In vacuum or inert atmosphere environments, higher temperatures can be achieved.

Q3: What grades of zirconium are available for crucibles?
A: We offer zirconium crucibles in Zr702 (Grade 2, highest purity), Zr705 (Grade 5, higher strength), R60001, and R60901 grades. Zr702 offers the best corrosion resistance, while Zr705 provides higher strength for demanding applications.

Q4: What volume sizes are available?
A: We offer standard volumes from 5ml to 50ml, with custom sizes available upon request. Wall thickness options include 1mm, 2mm, and custom specifications.

Q5: Can you customize zirconium crucibles?
A: Yes, we accept OEM and ODM orders. Custom dimensions, shapes (low form, flanged rim, straight wall, tapered, cylindrical), and wall thicknesses are available per customer drawings.

Q6: What surface finish is available?
A: We offer polished surface finish as standard for our zirconium crucibles. Other surface treatments are available upon request.

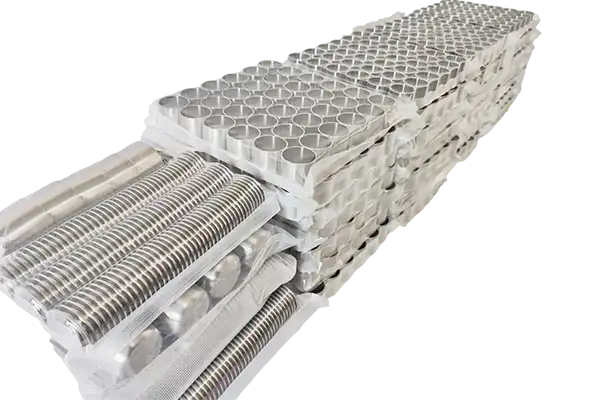

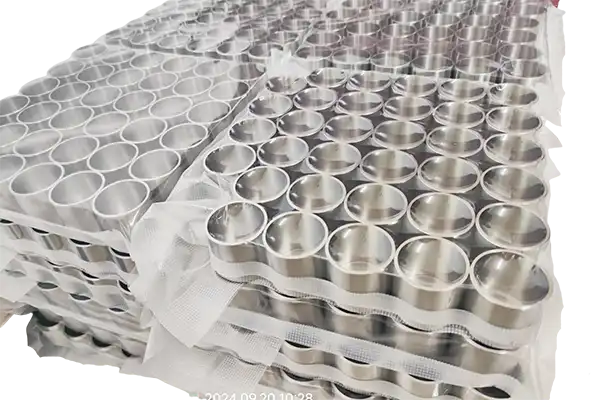

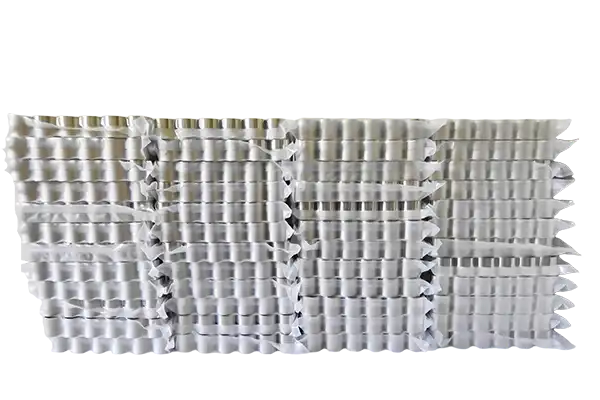

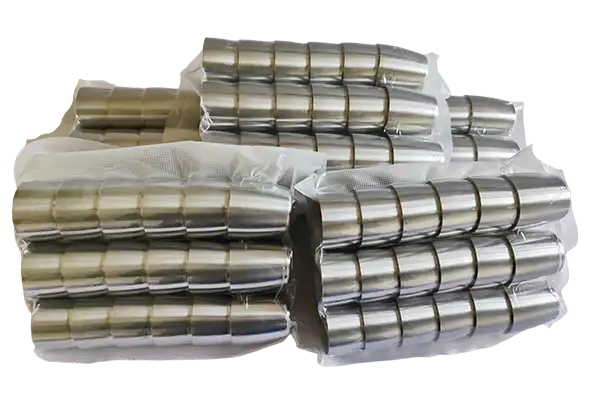

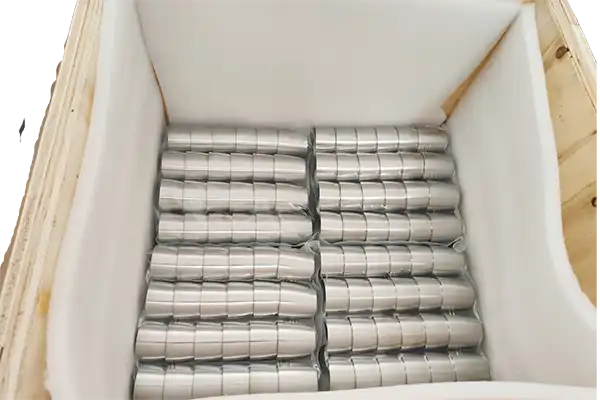

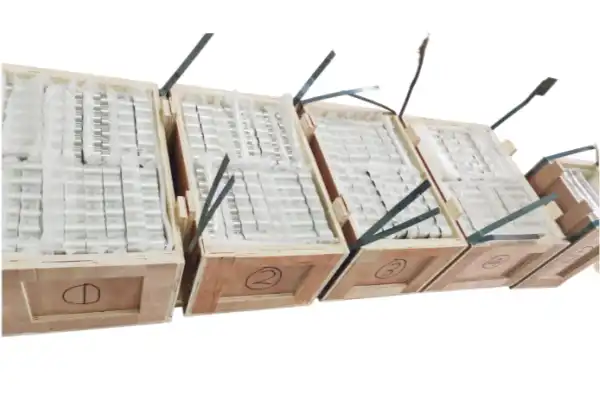

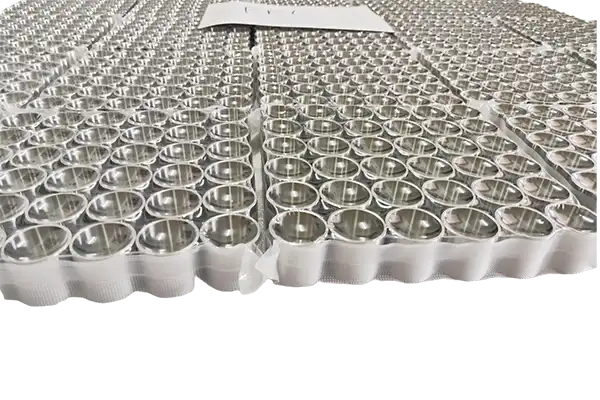

Our Packaging
