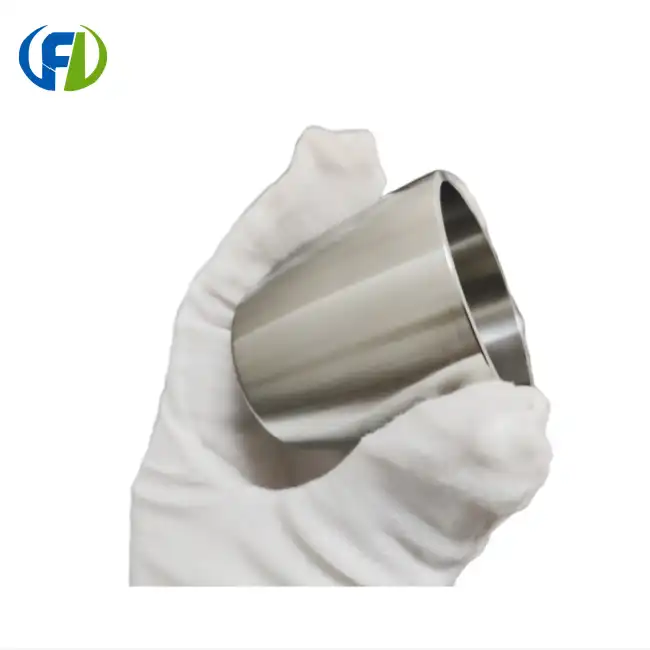

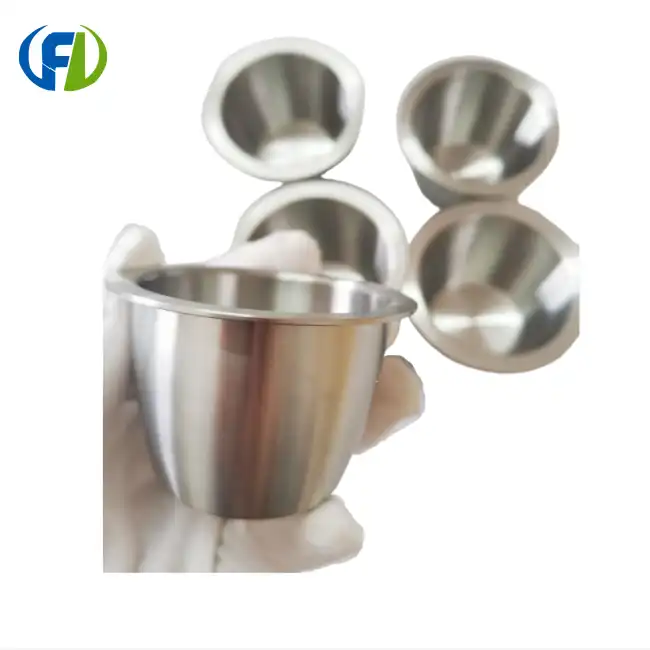

50ml Zirconium Crucible for High-Temperature Laboratory Applications
FRL Metal manufactures high-precision 50ml zirconium crucibles designed for demanding laboratory and industrial applications. Manufactured from premium R60702 and R60705 zirconium alloys in accordance with ASTM B493 and ASTM B551 standards, our crucibles offer exceptional resistance to molten metals, alkalis, and acidic environments.
Key Features: - High Purity Material: ≥ 99.2% Zr+Hf content ensures minimal contamination during high-temperature processing. - Superior Corrosion Resistance: Ideal for handling reactive melts, glass frits, and semiconductor materials. - Precision Dimensions: 50ml capacity with tight tolerances for consistent laboratory results. - Polished Finish: Smooth interior surface (Ra ≤ 0.8μm) prevents material adhesion and facilitates easy cleaning. - Flexible Ordering: Low MOQ of 1 piece with custom sizes and specifications available upon request.
Whether you require standard 50ml crucibles for routine analysis or custom-designed vessels for specialized processes, FRL Metal provides reliable, cost-effective solutions with fast delivery from our Baoji, Shaanxi manufacturing facility.
| Name | 50ml Zirconium Crucible R60702 |
| Material | Zirconium & Zirconium alloy |
| Grade | R60702, R60705 |
| Purity | R60702: ≥99.2% (Zr+Hf)R60705: ≥95.5% (Zr+Hf) |
| Density | 6.51 g/cm³ |

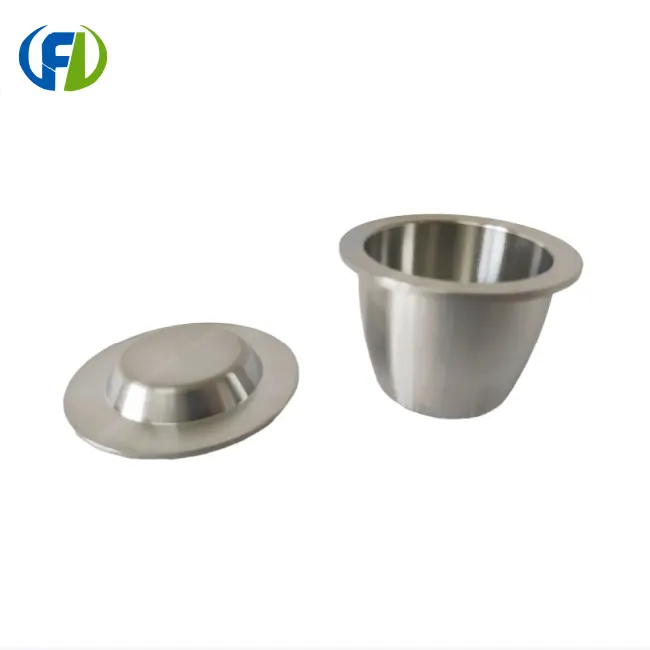

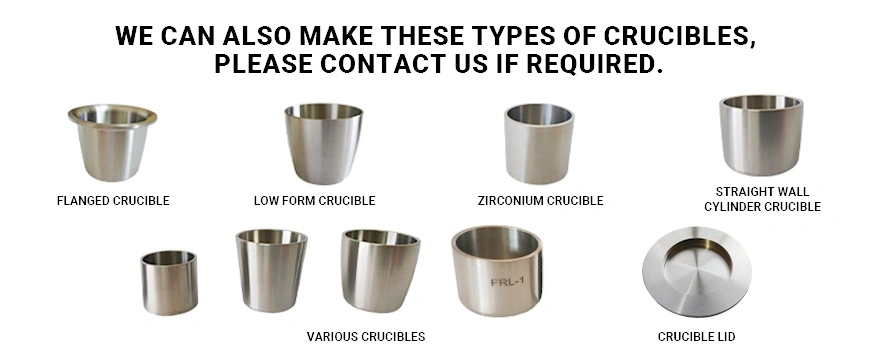

| Type | Low form zirconium crucible, flanged rims zirconium crucible,straight wall zirconium crucible, tapered zirconium crucible, Cylindrical zirconium crucible. |
| Capacity | 50ml, We can also produce and design these volume 5ml,10ml,15ml,20ml,25ml,30ml,35ml,40ml,45ml etc. |
| Wall thickness | 1mm,2mm,or custom. |
| Custom | Yes, process as per customer's drawing. |
![]() |
![]() |
![]() |
![]() |

| Grade | Element composition(%)< | |||||||||
| Zr+Hf | Hf | Fe | Fe+Cr | Sn | H | N | C | Nb | O | |
| R60702 | 99.2 | 4.5 | 0.2 | / | 0.005 | 0.025 | 0.05 | / | 0.16 | |
| R60705 | 95.5 | 4.5 | 0.2 | / | 0.005 | 0.025 | 0.05 | 2.0~3.0 | 0.18 | |
Our small batch zirconium crucible 50ml finds applications in various fields:
"Baoji Freelong's zirconium crucibles have significantly improved the reliability of our high-temperature experiments. Their customization service allowed us to design crucibles that fit perfectly into our existing setup." - Dr. Sarah Johnson, Materials Research Institute
"We've been using Freelong's small batch zirconium crucibles for our specialty glass production. The consistent quality and excellent corrosion resistance have helped us maintain the purity of our products." - Mark Thompson, R&D Manager, Advanced Glass Solutions


1. What is the difference between R60702 and R60705 zirconium crucibles?
R60702 is unalloyed zirconium with excellent corrosion resistance, while R60705 contains 2-3% niobium, offering higher strength and better performance in high-temperature acidic environments.
2. Can I order a single 50ml zirconium crucible as a sample?
Yes, FRL Metal supports low MOQ orders. You can purchase 1 piece as a sample to test before placing a bulk order.
3. What is the maximum operating temperature for these zirconium crucibles?
Zirconium crucibles can typically withstand continuous use up to 500°C in air and up to 1200°C in inert or vacuum atmospheres.
4. Do you offer custom sizes other than 50ml?
Yes, we provide customized zirconium crucibles based on your drawings or specifications. Contact us for a quote on non-standard sizes.
5. What standards do your zirconium crucibles comply with?
Our crucibles are manufactured in accordance with ASTM B493 and ASTM B551 standards.
6. How long does delivery take for 50ml zirconium crucibles?
Standard 50ml crucibles typically ship within 3-5 days. Custom orders may require 15-20 days depending on specifications.
7. Are zirconium crucibles suitable for handling hydrofluoric acid?
Zirconium has excellent resistance to hydrofluoric acid at various concentrations and temperatures, making it superior to many other metals for this application.
