Straight Arm Zirconium Crucible (Zr702/Zr705) - High Purity Lab Grade

Origin: Baoji, Shaanxi, China
Brand: FRL Metal
Surface: polished surface
Grade:Zr702, Zr705, R60001, R60901
Density: 6.51 g/cm³
Minimum Order Quantity: 1pc
Sample: Available
Packaging Details: Plywood case
Delivery Time:5~7days
Manufacturing Process: Hot rolling, cold rolling, annealing
Certification: ISO9001
Payment Terms: T/T
Product Description

Straight arm zirconium crucible Advantages

The straight arm zirconium crucible is a high-purity laboratory crucible manufactured from commercial pure zirconium (Zr702/Zr705) or zirconium alloys. Featuring a straight-wall cylindrical design, it offers stability for high-temperature melting, annealing, and chemical analysis applications. Our zirconium crucibles are available in various volumes (5ml to 1500ml) with customizable wall thickness to meet specific laboratory and industrial requirements.

1. High corrosion resistance: Zirconium exhibits corrosion resistance in a variety of acid and alkali solutions, particularly in oxidizing media such as nitric acid and sulfuric acid. It is widely used in chemical analysis and nuclear industry applicationsd.
2. High temperature resistance: It can remain stable at extremely high temperatures and is not easy to deform or melt.
3. Chemical stability: will not react with molten metal or ceramic materials, avoiding impurity contamination.
4. Process customization: can be customized according to customer needs size and shape, adapt to a variety of special application scenarios.
5. Excellent mechanical strength: has good tensile and compressive properties, even at high temperatures still maintain strength.

 Name  Straight Arm Zirconium Crucible
 Material  Zirconium & Zirconium alloy
 Grade  Zr702, Zr705, R60001, R60901
 Melting Point  1855°C
 Boiling Point  4409°C
 Density   6.51 g/cm3
 Shape  Crucible
 Type  Low form zirconium crucible, flanged rim zirconium crucible, straight wall zirconium crucible, tapered zirconium crucible, cylindrical zirconium crucible.
 Volume  5ml,10ml,15ml,20ml,25ml,30ml,35ml,40ml,45ml,50ml etc,
 Custom  Yes, process as per customer's drawing.
 Wall thickness  1mm,2mm,or custom
 Service life  A crucible with a wall thickness of 2mm has a longer service life than a thin-walled crucible and can be used repeatedly for more than 100 times.



Straight arm zirconium crucible display picture and video

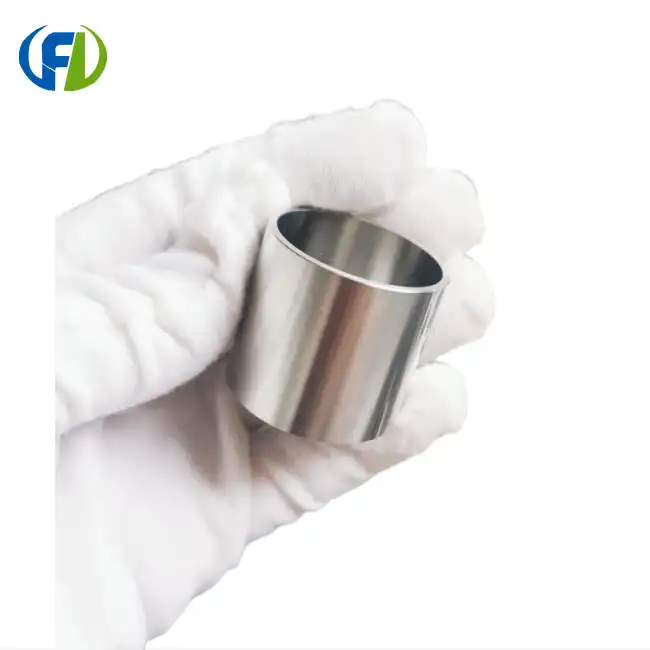

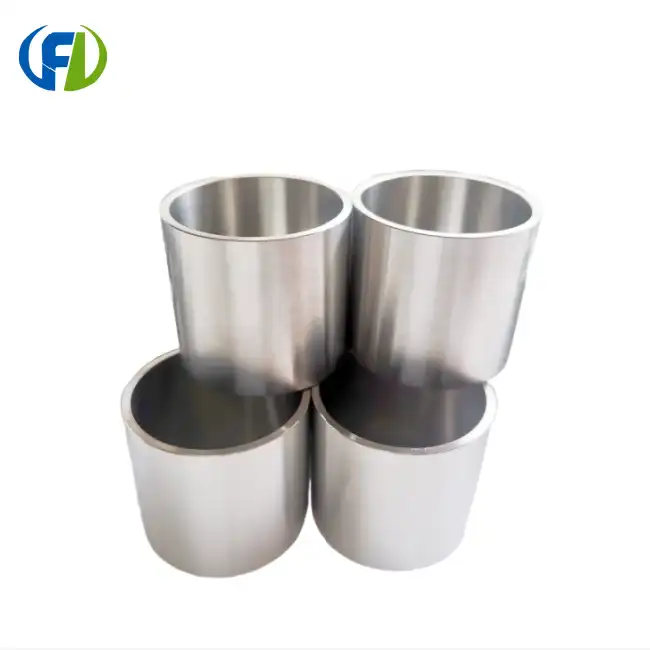

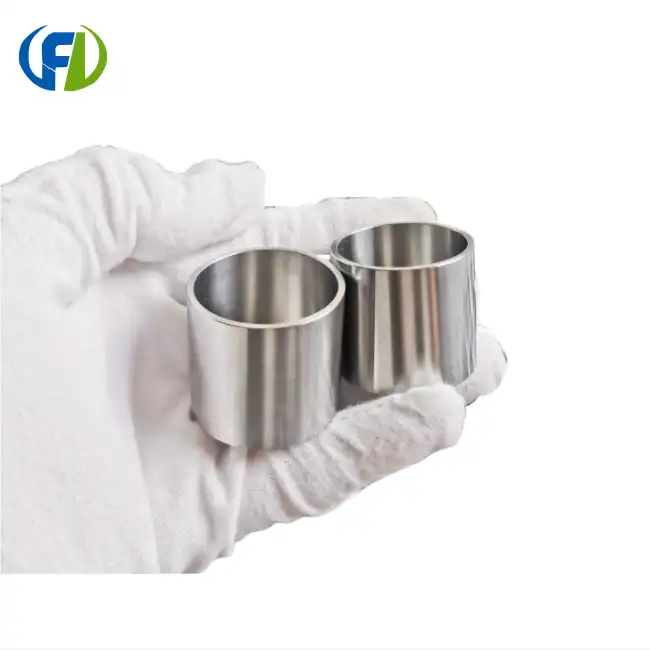

Straight arm zirconium crucible Zr702 Zr705 FRL Metal Zirconium crucible polished surface close-up FRL Metal Straight wall zirconium crucible top view FRL Metal


Various types of zirconium crucibles

 Chemical composition of various grades of zirconium materials

Grade Element composition(%)<
Zr+Hf Hf Fe Fe+Cr Sn H N C Nb O
R60702 99.2 4.5   0.2 / 0.005 0.025 0.05 / 0.16
R60705 95.5 4.5   0.2 / 0.005 0.025 0.05 2.0~3.0 0.18
R60001 / 0.010 0.150 / 0.0050 0.0025 0.0065 0.027 / /
R60901 (Zr-2.5Nb) / 0.010 0.150 / 0.0050 0.0025 0.0080 0.027 2.40-2.80 0.09-0.15

The common size of Straight arm zirconium crucible

Capacity (ml) Diameter Top (mm) Diameter bottom (mm) Height (mm)
15 36 32 23
20 35 32 32
25 47 40 23
35 47 40 30
45 47 40 35
55 47 40 42
75 51 44 42
100 59 53 46
250 83 72 60
500 102 89 66
1000 152 144 95
1500 152 144 108



Applications of Straight Arm Zirconium Crucible:

Nuclear industry: Used as crucibles for melting and processing nuclear-grade zirconium alloys

Chemical analysis: Ideal for crucibles in analytical laboratories due to high purity and corrosion resistance

Materials research: Suitable for high-temperature melting and annealing experiments

Jewelry and dental: Used for melting precious metals and dental alloys

Semiconductor: Applied in crystal growth and semiconductor material processing

Dimensional measurement of various types of crucibles

Dimensional measurement of various types of crucibles

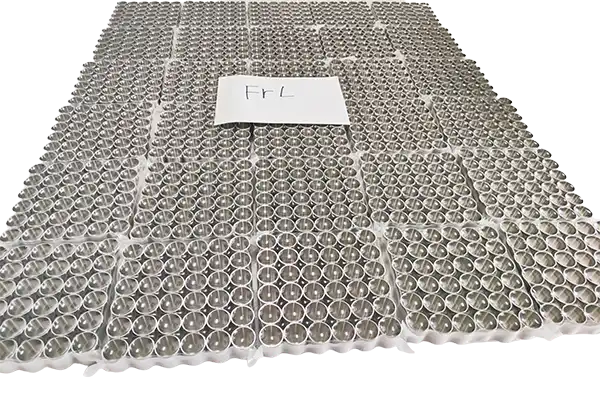

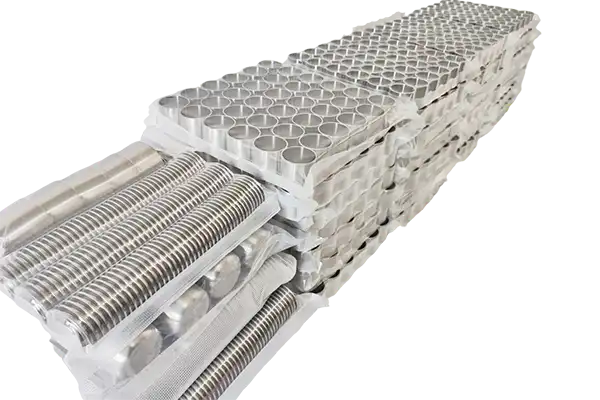

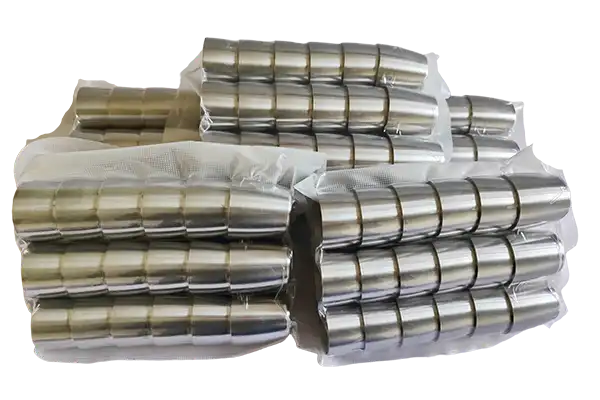

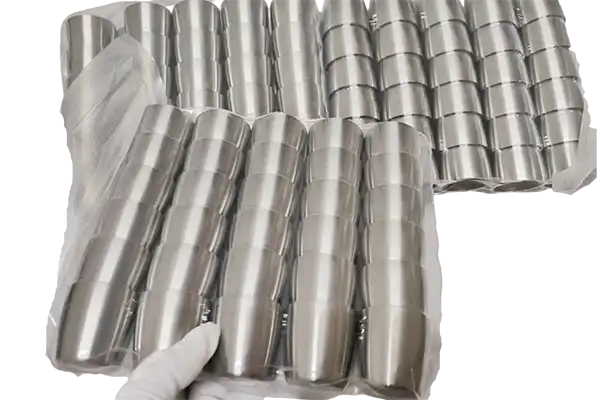

Our Packaging

Package
Package
Package
Package

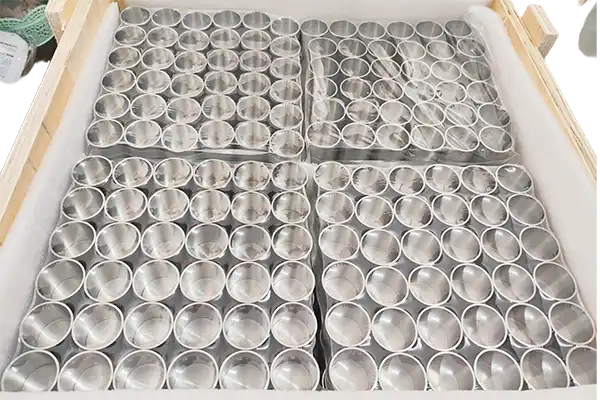

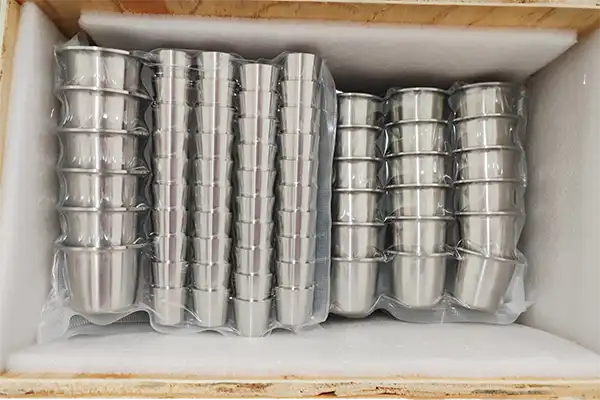

Plywood case packaging for zirconium crucible export FRL Meta
Package
Plywood case packaging for zirconium crucible export FRL Meta
Package
Package
Package
Package
Package
Package
Package
Package
Package
Package
Package
Package
Package

About FRL Metal

Baoji Freelong New Material Technology Development Co., Ltd is headquartered in Baoji City — known as "China's Titanium Valley." As a professional manufacturer and exporter, we specialize in the production, OEM processing, and global sales of zirconium, titanium, nickel, niobium, tantalum and their alloys.

With years of industry experience, we have earned the trust of numerous clients and strategic partners worldwide. Our products have been authorized by leading enterprises across Australia, Korea, Germany, the United States, the United Kingdom, Malaysia, Central Asia, the Middle East, Taiwan and other regions.

At FRL Metal, quality and service are not just commitments — they are our core values. We strictly adhere to international standards (ASTM, AMS, etc.) and maintain ISO 9001 certification throughout our production process. Every batch undergoes rigorous testing to ensure it meets or exceeds customer specifications.

Whether you need standard products or custom solutions, our experienced team is ready to provide professional support from inquiry to delivery. We look forward to building a successful partnership with you.

product-7019-1526

Frequently Asked Questions (FAQ)

Q1: What is a straight arm zirconium crucible?
A: A straight arm zirconium crucible (also known as straight wall zirconium crucible) is a high-purity laboratory crucible made from commercial pure zirconium (Zr702/Zr705) or zirconium alloys. It features a cylindrical straight-wall design suitable for high-temperature melting, annealing, and chemical analysis.

Q2: What grades of zirconium are available for crucibles?
A: We offer zirconium crucibles in Zr702 (Grade 2), Zr705 (Grade 5), R60001, and R60901 grades. Zr702 offers the highest purity and corrosion resistance, while Zr705 provides higher strength for demanding applications.

Q3: What volume sizes are available?
A: We offer standard volumes from 5ml to 1500ml, including 5ml, 10ml, 15ml, 20ml, 25ml, 30ml, 35ml, 40ml, 45ml, 50ml, 55ml, 75ml, 100ml, 250ml, 500ml, 1000ml, and 1500ml. Custom sizes are also available upon request.

Q4: What is the service life of a zirconium crucible?
A: A crucible with 2mm wall thickness has a longer service life than thin-walled versions and can be reused more than 100 times under proper operating conditions. Service life depends on operating temperature, handled materials, and thermal cycling frequency.

Q5: Can you customize zirconium crucibles?
A: Yes, we accept OEM and ODM orders. Custom dimensions, shapes (low form, flanged rim, tapered, cylindrical), and wall thicknesses are available per customer drawings.

Q6: What surface finish is available?
A: We offer polished surface finish as standard for our zirconium crucibles. Other surface treatments are available upon request.
