702 Zirconium Plate/Sheet (R60702/Zr702) ASTM B551

Origin: Baoji, Shaanxi, China
Brand: FRL Metal
Density: 6.51g/cm3
Grade: R60702
Purity: >99.2%(Zr+Hf)
Standard: ASTM B551
Certification: ISO 9001
Delivery Time: 5-7days
Payment Terms: T/T
Packaging Details: Plywood case
Product Description

What are the advantages of 702 zirconium plate?

FRL Metal 702 zirconium plates (UNS R60702) offer exceptional performance in extreme environments. As a commercially pure grade, Zr702 provides outstanding corrosion resistance, particularly against strong alkalis, hydrochloric acid, and sulfuric acid, outperforming many stainless steels and nickel alloys. It exhibits excellent biocompatibility, making it safe for medical and pharmaceutical applications. Additionally, Zr702 maintains high mechanical strength and structural integrity at elevated temperatures up to 300°C, while its low neutron absorption cross-section makes it uniquely suited for nuclear environments.

Chemical Composition of Zirconium Materials

Grade Element composition(%)<
Zr+Hf Hf Fe Fe+Cr Sn H N C Nb O
R60702 99.2 4.5   0.2 / 0.005 0.025 0.05 / 0.16
R60705 95.5 4.5   0.2 / 0.005 0.025 0.05 2.0~3.0 0.18
R60001 / 0.010  0.150  / 0.0050  0.0025 0.0065 0.027 / /
R60901(Zr-2.5Nb) / 0.010  0.150  / 0.0050  0.0025 0.0080  0.027 2.40-2.80 0.09-0.15

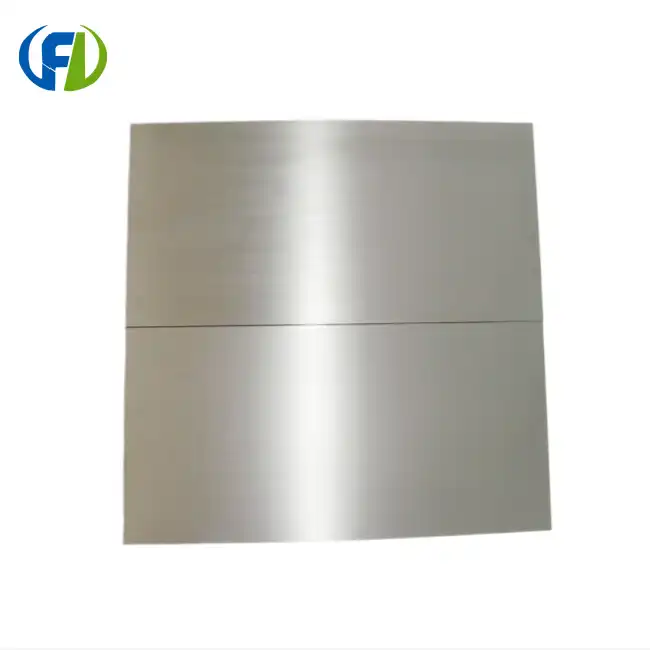

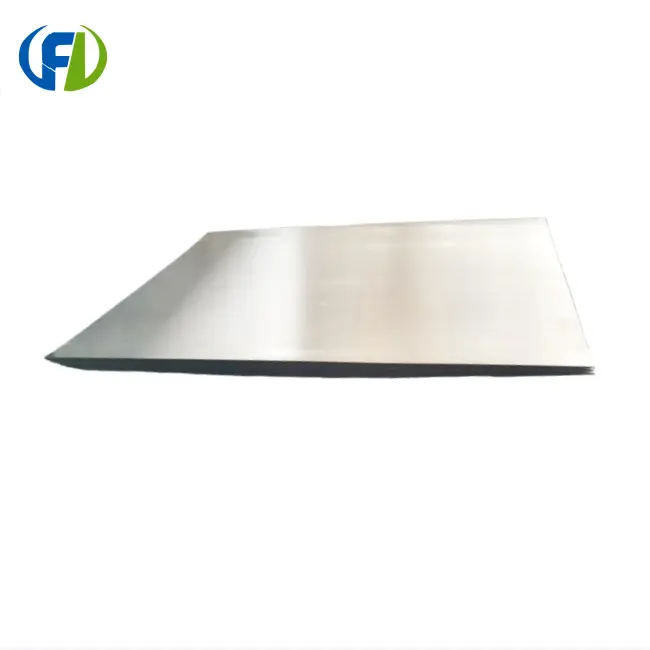

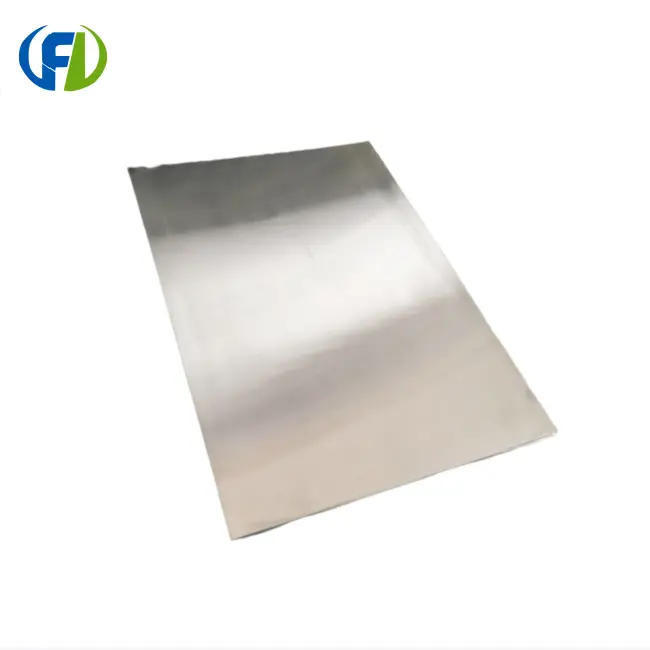

Zirconium Plate picture display

702 Zirconium Plate price​​​​​​​ 702 Zirconium Plate factory Customized 702 Zirconium Plate

Application of 702 zirconium plate

Due to its superior chemical stability and physical properties, FRL Metal Zr702 plates are widely utilized across demanding industries:

- Chemical Processing: Heat exchangers, reactors, valves, and piping systems handling highly corrosive media.

- Medical & Pharmaceutical: Surgical implants, dental prosthetics, and sterile processing equipment due to non-toxicity and biocompatibility.

- Nuclear Industry: Fuel rod cladding and structural components in nuclear reactors.

- Aerospace & Marine: High-temperature engine components and marine hardware resistant to saltwater corrosion.

- Electroplating: Anodes and tank linings for harsh electrochemical baths.



Corrosion resistance of titanium and zirconium

While titanium is renowned for its passivation layer, zirconium (R60702) surpasses titanium in specific aggressive environments. Zirconium demonstrates superior resistance to concentrated alkalis, hydrochloric acid, and sulfuric acid at elevated temperatures, where titanium may suffer from pitting or crevice corrosion. Furthermore, zirconium maintains its protective oxide film in boiling acids and is highly resistant to stress corrosion cracking. For applications involving extreme chemical aggression or high-temperature acidic media, FRL Metal Zr702 plates provide a more reliable and durable solution than standard titanium grades.

Our Advantage

1. Equipment Advantages

— FRL Metal operates advanced vacuum arc remelting (VAR) furnaces, precision rolling mills, and CNC machining centers, ensuring consistent metallurgical quality and tight dimensional tolerances for all zirconium plates.

2. Product Advantages

— Our R60702 zirconium plates strictly comply with ASTM B551 standards, offering verified ≥99.2% purity, uniform grain structure, and superior corrosion resistance tailored for extreme industrial applications.

3. Price Advantages

— As a direct manufacturer based in Baoji, China’s titanium and zirconium hub, we eliminate middleman markups, providing highly competitive factory-direct pricing without compromising on material quality.

4. Quality Advantages

— Every batch is certified under ISO 9001:2015 and accompanied by comprehensive Mill Test Certificates (MTC). We conduct rigorous in-house testing for chemical composition, tensile strength, and surface integrity before shipment.

5. Service Advantages

— We offer flexible customization for thickness, width, and surface finishes, backed by rapid 5-7 day delivery for standard sizes and dedicated technical support to assist with material selection and processing.



FAQ

Q1: What is 702 zirconium plate (R60702)?

A: 702 zirconium plate, designated as UNS R60702, is a commercially pure zirconium grade conforming to ASTM B551. It is characterized by excellent corrosion resistance, good formability, and low neutron absorption, making it ideal for chemical processing and nuclear applications.

Q2: What is the difference between Zr702, Zr704, and Zr705?

A: Zr702 (R60702) is unalloyed, offering maximum corrosion resistance and ductility. Zr704 (R60704) and Zr705 (R60705) contain niobium and tin additions, providing higher strength and better creep resistance at elevated temperatures, though with slightly reduced corrosion resistance compared to Zr702.

Q3: How does zirconium compare to titanium in terms of corrosion resistance?

A: Zirconium outperforms titanium in highly aggressive environments, particularly against concentrated alkalis, hydrochloric acid, and sulfuric acid at high temperatures. It also exhibits superior resistance to stress corrosion cracking in these media.

Q4: What surface finishes are available for zirconium plates?

A: FRL Metal offers multiple surface finishes including hot-rolled, cold-rolled, pickled, sandblasted, and mirror-polished, depending on your specific application requirements.

Q5: What is the minimum order quantity (MOQ) for zirconium plates?

A: Our standard MOQ is 5 kg for stock sizes. Custom-cut plates may have higher MOQs depending on dimensions and processing requirements. Please contact us for specific inquiries.

Q6: Can you provide mill test certificates (MTC) for zirconium plates?

A: Yes, every shipment of FRL Metal zirconium plates is accompanied by a comprehensive Mill Test Certificate detailing chemical composition, mechanical properties, and dimensional verification, fully traceable to the original melt.


Our Packaging

Package
Package
Package
Package
Package
Package
Package
Package
Package
Package
Package
Package
Package
Package
Package
Package
Package
Package
Package
Package

About FRL Metal

Baoji Freelong New Material Technology Development Co., Ltd is headquartered in Baoji City — known as "China's Titanium Valley." As a professional manufacturer and exporter, we specialize in the production, OEM processing, and global sales of zirconium, titanium, nickel, niobium, tantalum and their alloys.

With years of industry experience, we have earned the trust of numerous clients and strategic partners worldwide. Our products have been authorized by leading enterprises across Australia, Korea, Germany, the United States, the United Kingdom, Malaysia, Central Asia, the Middle East, Taiwan and other regions.

At FRL Metal, quality and service are not just commitments — they are our core values. We strictly adhere to international standards (ASTM, AMS, etc.) and maintain ISO 9001 certification throughout our production process. Every batch undergoes rigorous testing to ensure it meets or exceeds customer specifications.

Whether you need standard products or custom solutions, our experienced team is ready to provide professional support from inquiry to delivery. We look forward to building a successful partnership with you.
