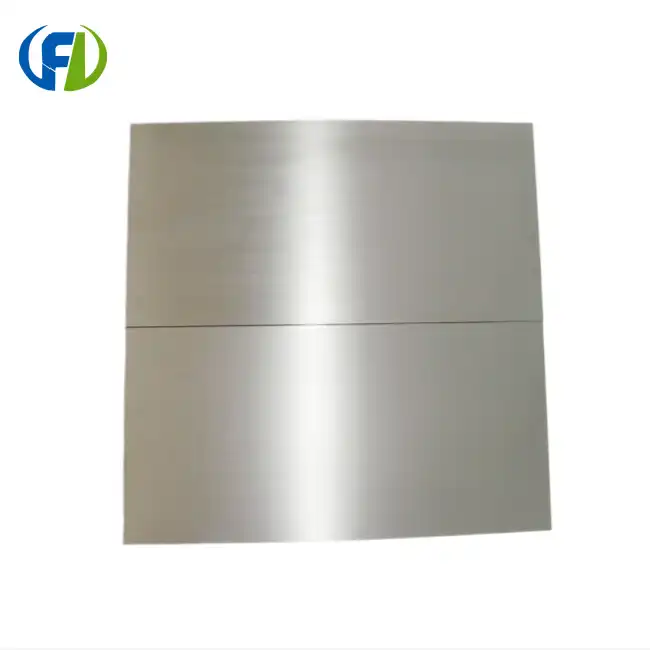

Pure Zirconium Plate (R60702 / R60704 / R60705) - ASTM B551

Origin: Baoji, Shaanxi, China
Brand: FRL Metal
Density: 6.51 g/cm³
Grade: R60702,R60704,R60705,R60001,R60901,R60804
Purity: See grade-specific data below
Standard: ASTM B551
Certification: ISO 9001
Delivery Time:5-7 working days
Payment Terms:T/T
Packaging Details:Plywood Case
Product Description

Product Description

FRL Metal offers high-quality Pure Zirconium Plates manufactured per ASTM B551 standard in grades R60702, R60704, R60705, R60001, R60901, and R60804. Our zirconium plates are widely used in chemical processing equipment, nuclear industry components, medical implants, desalination plants, and high-corrosion environments where exceptional material performance is critical. With densities of 6.51 g/cm3 and melting points up to 1855C, pure zirconium plates deliver outstanding corrosion resistance, excellent mechanical properties, and superior biocompatibility. We provide custom cutting, sizing, and finishing services to meet your exact specifications.



Advantages of pure zirconium plate

1. Excellent corrosion resistance
Pure zirconium has strong corrosion resistance to a variety of acidic and alkaline media, especially in hydrochloric acid, nitric acid and organic acid environments. Its antioxidant properties are also very outstanding, suitable for highly corrosive industrial environments.

2. High melting point and high temperature resistance
Zirconium has a melting point of up to 1855℃, and has good mechanical strength and thermal stability in high temperature environments, suitable for high-temperature industrial equipment and component manufacturing.

3. Good mechanical properties
Pure zirconium plate has high strength, high toughness and good ductility, which is easy to process and manufacture into various complex shapes of parts, such as containers, pipes and equipment linings.

4. Low thermal neutron absorption cross section
Zirconium's low thermal neutron absorption cross section makes it an irreplaceable material in the nuclear industry, especially in nuclear reactor fuel cladding and structural materials.

5. High biocompatibility
Pure zirconium is non-toxic to human tissues and has good biocompatibility, so it is also used in the medical field to manufacture implants, orthopedic devices, etc.

6. Anti-oxidation and anti-wear properties
A dense oxide film is easily formed on the surface of zirconium, which can effectively protect the substrate from further oxidation and also enhance the material's anti-wear properties.

7. Excellent chemical stability
In most chemical environments, pure zirconium plates can maintain stable performance and are suitable for equipment manufacturing under extreme conditions in the chemical industry.

8. Processing flexibility
Zirconium plates are easy to hot and cold process, and can be processed by welding, casting and other processes, suitable for a variety of industrial manufacturing needs.

Due to the above advantages, pure zirconium plates are widely used in chemical equipment, nuclear reactors, medical equipment, high-end electrical equipment and other fields.



Pure Zirconium Plate picture display

Pure Zirconium Plate price​​​​​​​ Pure Zirconium Plate factory Customized Pure Zirconium Plate



Chemical Content

Grade Element composition (%) <
Zr+Hf Hf Fe+Cr Sn H N C Nb O
R60702 99.2 4.5 0.2 -- 0.005 0.025 0.05 -- 0.16
R60703 98 4.5 -- -- 0.005 0.025 -- -- --
R60704 97.5 4.5 0.20~0.40 1.0~2.0 0.005 0.025 0.05 -- 0.18
R60705 95.5 4.5 0.2 -- 0.005 0.025 0.05 2.0~3.0 0.18
R60706 95.5 4.5 0.2 -- 0.005 0.025 0.05 2.0~3.0 0.18


Tolerance of Thickness pure zirconium plate

Thickness (mm) Thickness tolerance within width (mm)
width≤300 width>300~600 width>600~1000 width>1000~3000
0.01~0.02 ±0.003 / / /
>0.02~0.05 ±0.005 / / /
>0.05~0.07 ±0.007 / / /
>0.07~0.10 ±0.015 / / /
>0.10~0.15 ±0.025 / / /
>0.15~0.25 ±0.04 / / /
>0.25~0.50 ±0.05 ±0.05 ±0.06 /
>0.50~0.90 ±0.05 ±0.06 ±0.08 /
>0.90~1.70 ±0.08 ±0.10 ±0.12 /
>1.70~2.10 ±0.08 ±0.13 ±0.15 /
>2.10~2.50 ±0.10 ±0.20 ±0.22 /
>2.50~2.90 ±0.10 ±0.23 ±0.25 /
>2.9~3.5 ±0.10 ±0.25 ±0.25 /
>3.5~4.5 ±0.10 ±0.30 ±0.30 /
>4.5~5.0 ±0.15 ±0.35 ±0.40 ±0.50
>5.0~6.0 / ±0.40 ±0.50 ±0.60
>6.0~8.0 / ±0.40 ±0.60 ±0.80
>8.0~10.0 / ±0.50 ±0.60 ±0.80
>10.0~20.0 / ±0.50 ±0.90 ±1.10
>20.0~40.0 / ±0.60 ±1.10 ±1.50
>40.0~50.0 / ±0.60 ±1.50 ±2.00
>50.0~60.0 / ±0.70 ±2.00 ±2.50



FAQ

Q1: What grades of pure zirconium plate do you offer?

A: We offer ASTM B551 grades R60702 (Grade 2), R60703 (Grade 3), R60704 (Grade 4), R60705 (Grade 5), R60706 (Grade 6), as well as R60001, R60901, and R60804. Grade 2 (R60702) is our most commonly stocked grade, offering excellent corrosion resistance and good formability. Grade 5 (R60705) with added niobium provides enhanced strength for demanding applications. Please contact us with your specific grade requirements for availability and pricing.

Q2: What is the maximum service temperature for pure zirconium plate?

A: Pure zirconium plates can be used continuously at temperatures up to 500C in air environments. In vacuum or inert atmosphere (argon, nitrogen), the service temperature can reach up to 1200C. Above 500C in air, zirconium begins to oxidize rapidly, so protective atmospheres or coatings are recommended for high-temperature air applications. The melting point of zirconium is 1855C.

Q3: How does zirconium plate compare to titanium or stainless steel for corrosion resistance?

A: Zirconium exhibits superior corrosion resistance compared to both titanium and stainless steel in many aggressive environments. While titanium performs well in chlorides, zirconium outperforms both in acidic environments - particularly hydrochloric acid, nitric acid, and organic acids. Zirconium forms a stable, self-healing oxide film (ZrO2) that provides exceptional protection against corrosion. In sulfuric acid environments below 50C, zirconium is one of the best available engineering materials.

Q4: What thickness and size ranges do you provide for zirconium plates?

A: We supply zirconium plates in thicknesses ranging from 0.01mm to 60mm, with widths up to 3000mm and lengths up to 6000mm (or as per customer requirements). Standard sizes include 1220x2440mm, 1500x3000mm, and custom cuts. We also provide tolerance specifications per ASTM B551 for thickness, width, and length. Please refer to our thickness tolerance table on this page for detailed specifications.

Q5: Can you customize zirconium plates to specific dimensions and shapes?

A: Yes, we offer comprehensive custom processing services. Our capabilities include precision cutting (laser cutting, waterjet cutting), edge profiling, bending, rolling, and surface finishing. We can manufacture plates to your exact drawings and specifications. Minimum order quantities apply for custom sizes - please contact our sales team for details.

Q6: What certifications do your zirconium plates come with?

A: All our zirconium plates are supplied with Mill Test Certificates (MTC) conforming to ASTM B551 standards. Our company is ISO9001:2015 certified.

Q7: What are the typical applications for pure zirconium plates?

A: Pure zirconium plates are widely used in: (1) Chemical processing equipment - heat exchangers, reaction vessels, piping systems for corrosive media; (2) Nuclear industry - fuel cladding, structural components in nuclear reactors due to low neutron absorption cross-section; (3) Medical implants - orthopedic devices, surgical instruments due to excellent biocompatibility; (4) Desalination plants - condenser tubes, heat transfer surfaces; (5) High-temperature equipment - furnace components, crucibles; (6) Electronics - semiconductor manufacturing equipment.

Q8: What is your MOQ and delivery time for zirconium plates?

A: Our MOQ for standard grades and sizes is 50kg. For custom sizes or special grades, MOQ may vary - please contact us for specific requirements. Standard delivery time for stock items is 5-7 working days. For custom orders requiring additional processing, delivery typically takes 15-25 days depending on specifications and quantity. We maintain stock of common grades (R60702, R60704) and sizes to ensure fast delivery.
