Zircaloy-4 (UNS R60804) Plate/Sheet - Nuclear Grade Alloy

Origin: Baoji, Shaanxi, China
Brand: FRL Metal
Density: 6.51 g/cm³
Grade: R60804, Zircaloy-4
Standard: ASTM B352
Certification: ISO 9001
Delivery Time: 5~7 days
Payment Terms: T/T
Packaging Details: Plywood case
Product Description

Introduction to Zircaloy-4-Plate/Sheet (UNS R60804)

 Name  Zircaloy-4 Plate/Sheet
 Material  Zirconium alloy
 Grade  UNS R60804
 Density  6.51g/cm3
 Standard  ASTM B352
 Size  0.3-50mm*1000*6000mm
 Shape  Plate/sheet
 Surface  Polished
 MOQ 1kg
 Custom  Yes, we can OEM,ODM
 Package  Plywood case


Zircaloy-4 (UNS R60804)-Plate/Sheet display picture

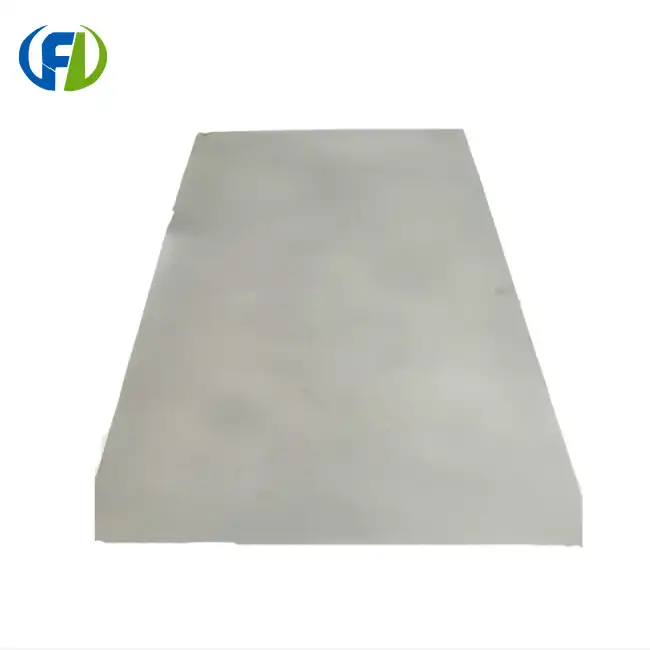

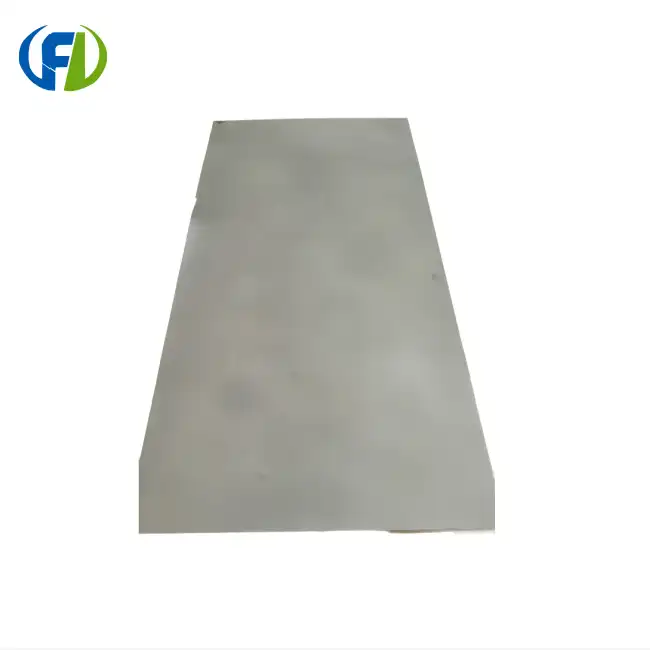

Zircaloy-4 UNS R60804 Zirconium Plate ASTM B352 FRL Metal Zircaloy-4 zirconium alloy plate polished surface FRL Metal Zircaloy-4 plate edge view quality inspection FRL Metal


Chemical Composition of Zirconium & Zirconium Alloys (wt%)

Industrial grades — ASTM B551/B551M (GB/T 26314)

Grade (UNS) Standard Zr+Hf, min % Hf, max % Sn, % Fe+Cr, % Nb, % C, max % O, max % H, max % N, max % Notes
Zr702 (R60702) ASTM B551 / GB/T 26314 (Zr-3) ≥99.2 ≤4.5 — ≤0.20 — ≤0.05 ≤0.16 ≤0.005 ≤0.025 Commercially pure (unalloyed) zirconium; excellent corrosion resistance; widely used in chemical and marine engineering.
Zr704 (R60704) ASTM B551 ≥97.5 ≤4.5 1.0–2.0 0.20–0.40 — ≤0.05 ≤0.18 ≤0.005 ≤0.025 Zirconium-tin (Zr-Sn) alloy; higher strength and creep resistance than R60702.
Zr705 (R60705) ASTM B551 / GB/T 26314 (Zr-5) ≥95.5 ≤4.5 — ≤0.20 2.0–3.0 ≤0.05 ≤0.18 ≤0.005 ≤0.025 Zirconium-niobium (Zr-Nb) alloy; high strength and good toughness with good corrosion resistance.

Nuclear-grade grade — ASTM B352/B352M (GB/T 26314, Zr-4)

Grade (UNS) Standard Zr+Hf Hf, max % Sn, % Fe, % Cr, % Fe+Cr, % Ni, max % C, max % O, % H, max % N, max % Notes
Zircaloy-4 (R60804) ASTM B352 / GB/T 26314 (Zr-4) Bal. ≤0.010 1.20–1.70 0.18–0.24 0.07–0.13 0.28–0.37 ≤0.0070 ≤0.027 0.09–0.16 ≤0.0025 ≤0.0080 Nuclear-grade Zr-Sn-Fe-Cr alloy; used for fuel rod cladding tubes and reactor structural materials.

Notes: All values are weight percent (wt%). "—" means the element is not specified or not an alloying element. R60703/Zr703 is not an ASTM B551 or GB/T 26314 grade; if supplied, report actual MTC values. Oxygen for R60804 may be specified by agreement between purchaser and manufacturer per ASTM B352.

Advantages of zircaloy-4 Plate/Sheet (UNS R60804)

1. Excellent corrosion resistance: It exhibits strong corrosion resistance in harsh environments such as high temperature strong acid (such as nitric acid, hydrochloric acid, phosphoric acid), strong alkali and seawater.

2. Strong high temperature stability: It can still maintain excellent mechanical properties and oxidation resistance above 800℃, suitable for extreme temperature conditions.
3. Low thermal neutron absorption cross section: Compared with other metal materials, zirconium-4 has a very low absorption rate for thermal neutrons, which improves fuel utilization and safety in nuclear energy applications.
4. Good mechanical properties: Compared with pure zirconium, zirconium-4 has higher tensile strength, hardness and wear resistance, which can meet the requirements of high-strength load-bearing.
5. Excellent biocompatibility: It will not cause biological rejection and can be used in medical implants and bioengineering fields.



Applications ​​​​​​​

1. Nuclear reactor fuel cladding tubes and structural materials

2. Nuclear fuel assembly structural components

3. Chemical processing equipment (heat exchangers, reactors)

4. Aerospace components requiring high-temperature strength

5. Medical devices and implants

6. Power plant condenser tubes and plates

7. Laboratory equipment for corrosive environments

Our advantage

1. Equipment Advantages

There are planing machine, milling machine, annealing furnace, laser cutting machine, bending machine, leveling machine, punching machine and forging hammer, etc.

2. The Product Advantages

Large quantity of spot stock, can provide samples, can be processed and customized according to the drawings.

3. Price Advantages

Source factory production, no middlemen, factory price delivery.

4. Quality Advantages

Provide material report, if customer needs, can provide third party test report.

5.And Service Advantages

Professional customer service throughout the service for you, if you encounter product quality problems can be returned free of charge.



Our Packaging



Package
Package
Package
Package
Package
Package
Package
Package
Package
Package
Package
Package
Package
Package
Package
Package
Package
Package
Package
Package

About FRL Metal

Baoji Freelong New Material Technology Development Co., Ltd is headquartered in Baoji City — known as "China's Titanium Valley." As a professional manufacturer and exporter, we specialize in the production, OEM processing, and global sales of zirconium, titanium, nickel, niobium, tantalum and their alloys.

With years of industry experience, we have earned the trust of numerous clients and strategic partners worldwide. Our products have been authorized by leading enterprises across Australia, Korea, Germany, the United States, the United Kingdom, Malaysia, Central Asia, the Middle East, Taiwan and other regions.

At FRL Metal, quality and service are not just commitments — they are our core values. We strictly adhere to international standards (ASTM, AMS, etc.) and maintain ISO 9001 certification throughout our production process. Every batch undergoes rigorous testing to ensure it meets or exceeds customer specifications.

Whether you need standard products or custom solutions, our experienced team is ready to provide professional support from inquiry to delivery. We look forward to building a successful partnership with you.

product-7019-1526

Frequently Asked Questions (FAQ)

Q1: What is Zircaloy-4 zirconium alloy?
A: Zircaloy-4 (UNS R60804) is a zirconium-tin-iron-chromium alloy designed for nuclear reactor fuel cladding and structural applications. It offers corrosion resistance in high-temperature water/steam, low thermal neutron absorption cross-section, and good mechanical properties.

Q2: What standards do your Zircaloy-4 plates comply with?
A: Our Zircaloy-4 plates are manufactured per ASTM B352 (standard specification for zirconium and zirconium alloy plates and sheets). We can also meet AMS and other international standards upon request.

Q3: What thickness sizes are available for Zircaloy-4 plates?
A: We offer Zircaloy-4 plates in thicknesses from 0.3mm to 50mm, with standard dimensions of 1000mm x 6000mm. Custom sizes and dimensions can be manufactured per your requirements.

Q4: What are the main applications of Zircaloy-4 plates?
A: Zircaloy-4 plates are widely used in nuclear reactor fuel cladding, nuclear fuel assembly structural components, chemical processing equipment, aerospace components, and medical devices due to their corrosion resistance and low neutron absorption properties.

Q5: Can you provide Mill Test Certificates?
A: Yes, every batch comes with a Mill Test Certificate (MTC) detailing chemical composition and mechanical properties to ensure compliance with ASTM B352 standards.

Q6: What surface finishes are available?
A: We offer polished surface finish for our Zircaloy-4 plates as standard. Other surface treatments such as pickling and sandblasting are also available upon request.
