2.4mm Diameter Zirconium Wire Zr702 Zr705

Origin: Baoji, Shaanxi, China
Brand: FRL Metal
Grade: R60702,R60704,R60705
Density: 6.51g/cm³
Diameter: Φ2.4(Other sizes can also be customized)
Tolerance: +/- 0.05mm
Length: Customizable
Standard: ASTM B550
Surface:Pickled / Bright / Sandblasted
Certification:ISO 9001
Delivery Time: 5-7days
Payment Terms: T/T
Packaging Details: Plywood case
Product Description

Details of 2.4mm Diameter Zirconium Wire

2.4mm diameter zirconium wire is a high-purity zirconium product manufactured to precise specifications. Our zirconium wire is produced using advanced drawing and annealing processes to ensure excellent mechanical properties and surface quality. The wire can be customized according to customer requirements and drawings to ensure quality:

A. Zirconium wire is extensively used in nuclear energy applications due to its exceptional neutron absorption properties and corrosion resistance in high-temperature water and steam environments.

B. Zirconium wire has been widely used in chemical processing, petroleum refining, and power generation industries because of its outstanding corrosion resistance against aggressive media including chlorides, caustic solutions, and sulfuric acid.

C. Zirconium wires are also used to manufacture zirconium-based alloys for specialty applications such as corrosion-resistant fasteners, springs, and components operating in harsh chemical environments.

D. In the medical and dental industry, zirconium wire is used to manufacture biomedical devices, surgical instruments, and dental implants due to its biocompatibility and excellent corrosion resistance in bodily fluids.

E. Zirconium wire is used in the manufacture of vacuum furnace components, heat shields, and thermal insulation materials due to its high melting point and low thermal neutron absorption cross-section.

F. Zirconium and zirconium alloy wires are used to make electrodes, heating elements, and components in glass manufacturing, metallurgy, and water treatment industries where superior corrosion resistance is required.

Product Image

Custom R60702 Zirconium Welding Wire Customized 2.4mm Diameter Zirconium Wire Zr702 Zr705 Custom R60702 Zirconium Wire (Coil) 2.4mm Diameter Zirconium Wire Zr702 Zr705  manufacturer
​​​​​

Zirconium Wire Description

Item Name Zirconium wire
Density 6.51g/cm³
Melting point 1800℃
Material Pure Zirconium and Alloy Zirconium
Grade R60702,R60704,R60705
Specification As your request
Applications industry, metal smelting, scientific research, education, etc.


Chemical requirements

Grade Element composition(%)<
 Zr+Hf  Hf  Fe+Cr  Sn  H  N  C  Nb  O
R60702  99.2 4.5   0.2 --  0.004 0.02  0.05   -- 0.16
R60704 97.5  4.5   0.2~0.4 1~2   0.005 0.025  0.05  --   0.18
R60705 95.5  4.5  0.2  --   0.005 0.025  0.05  2~3  0.18


Common Applications:

1. Nuclear Industry: Fuel rod cladding components, control rod drives, and nuclear reactor internals
2. Chemical Processing: Heat exchangers, reactors, valves, and pumps handling corrosive media
3. Oil & Gas: Downhole tools, corrosion-resistant fasteners, and wellhead components
4. Medical Devices: Surgical instruments, dental implants, and biomedical implants
5. Electronics: Vacuum components, semiconductor manufacturing equipment
6. Aerospace: High-temperature components, thermal shielding, and fasteners
7. Laboratory Equipment: Crucibles, furnaces, and experimental apparatus
8. Power Generation: Condenser tubes, heat exchanger tubes, and steam generator components

Quality Control Process

Every batch of our 2.4mm zirconium wire undergoes rigorous quality control testing to ensure it meets international standards:

1. Raw Material Inspection: Incoming zirconium sponge and alloying elements are tested for composition
2. In-Process Control: Chemical composition analysis, grain size examination, and mechanical property testing at each production stage
3. Final Inspection: Dimensional verification, surface quality inspection, and comprehensive mechanical testing
4. Certification: Each batch is accompanied by a Mill Test Certificate (MTC) with full chemical and mechanical test results



FAQ Section

Q1: What is the difference between Zr702 and Zr705 zirconium wire?
A1: Zr702 (Grade 2) is commercially pure zirconium with excellent corrosion resistance and formability. Zr705 (Grade 5) is a zirconium-niobium alloy with higher strength and good weldability. The choice depends on your specific application requirements.

Q2: What is the minimum order quantity (MOQ) for 2.4mm zirconium wire?
A2: Our standard MOQ is 50 kg. However, we can accommodate smaller sample orders for quality evaluation purposes. Please contact us for sample availability.

Q3: What certifications do your zirconium wires come with?
A3: All our zirconium wires come with Mill Test Certificate (MTC) per EN 10204/3.1, ISO 9001:2015 certification.

Q4: What surface finishes are available for zirconium wire?
A4: We offer pickled surface, bright annealed surface, sandblasted surface, and polished surface. The standard finish is pickled surface. Custom surface treatments are available upon request.

Q5: What is the delivery time for 2.4mm zirconium wire?
A5: For orders under 200 kg, delivery is approximately 25 days. For larger orders, delivery time is to be negotiated but typically ranges from 30-45 days.

Q6: Do you provide custom sizes and specifications?
A6: Yes, we offer OEM services and can manufacture zirconium wire in custom diameters, lengths, grades, and specifications according to your drawings and requirements.



Our Packaging

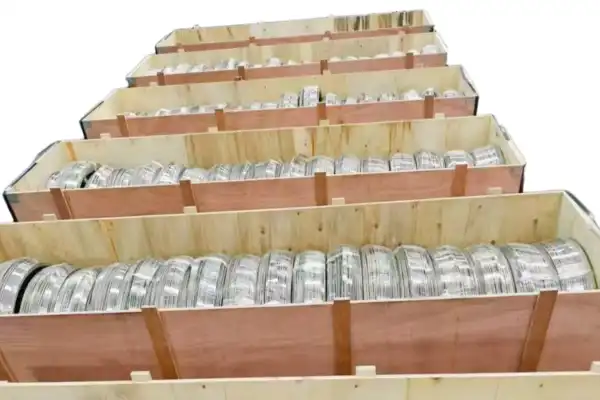

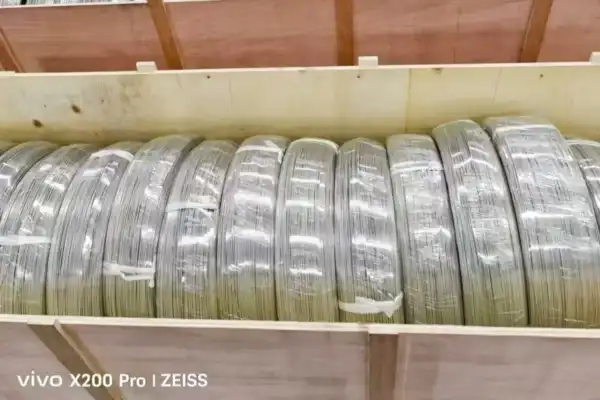

Our 2.4mm zirconium wire is carefully packaged to ensure safe delivery. Standard packaging includes: moisture-proof wrapping, plywood cases, and palletized shipping. Custom packaging solutions available for international shipments. Each batch is accompanied by a Mill Certificate (MTC) and quality inspection report.

Package
Package
Package
Package
Package
Package
Package
Package
Package
Package
Package
Package
product-600-400
Package
Package
Package
Package
Package
product-600-400
Package

About FRL Metal

Baoji FRL New Material Technology Development Co., Ltd is headquartered in Baoji City — known as "China's Titanium Valley." As a professional manufacturer and exporter, we specialize in the production, OEM processing, and global sales of zirconium, titanium, nickel, niobium, tantalum and their alloys.

With years of industry experience, we have earned the trust of numerous clients and strategic partners worldwide. Our products have been authorized by leading enterprises across Australia, Korea, Germany, the United States, the United Kingdom, Malaysia, Central Asia, the Middle East, Taiwan and other regions.

At FRL Metal, quality and service are not just commitments — they are our core values. We strictly adhere to international standards (ASTM, AMS, etc.) and maintain ISO 9001 certification throughout our production process. Every batch undergoes rigorous testing to ensure it meets or exceeds customer specifications.

Whether you need standard products or custom solutions, our experienced team is ready to provide professional support from inquiry to delivery. We look forward to building a successful partnership with you.
