0.05mm High Purity Zirconium Foil

Origin: Baoji, Shaanxi, China
Brand: FRL Metal
Purity: >99.5%
Grade: Zr702, Zr704, Zr705, RO60001
Density: 6.51g/cm3
Common forms: Coil, Strip.
Width: 50-300mm
Thickness: Usually between 0.05mm and 0.5mm
Standard: ASTM B551
Certification: ISO9001
Delivery time: 7-15 days
Packaging Details: Plywood case

Send Inquiry

Download

Product Description

0.05mm High Purity Zirconium Foil Introduction

0.05mm zirconium foil is an extremely thin metallic zirconium material with a thickness of 0.05 mm, belonging to the category of high-value-added high-tech materials. Due to the excellent properties of zirconium metal itself, it plays a key role in many cutting-edge fields. Baoji Freelong New Material Technology Development Co., Ltd. provides you with the highest quality zirconium materials; inquiries are welcome.

Pame: 0.05mm High Purity Zirconium Foil
Material: Zirconium & Zirconium alloy
Grade: Zr702, Zr704, Zr705, RO60001,
Purity: >99.2%
Density: 6.51g/cm3
Standard: ASTM B551
Width: 50-300mm
Thickness: usually between 0.05mm and 0.5mm
MOQ: 1kg
Package: Plywood case

Chemical Content of Zirconium Foil

R60702	99.2	4.5		0.2	/	0.005	0.025	0.05	/	0.16	ASTM B551
R60704	97.5	4.5		0.20~0.40	1.0~2.0	0.005	0.025	0.05	/	0.18
R60705	95.5	4.5		0.2	/	0.005	0.025	0.05	2.0~3.0	0.18
R60001	/	0.010	0.150	/	0.0050	0.0025	0.0065	0.027	/	/
R60804 (Zr-4)	/	0.010	0.18-0.24	0.28-0.37	1.2-1.70	0.0025	0.0065	0.027	/	0.09-0.16

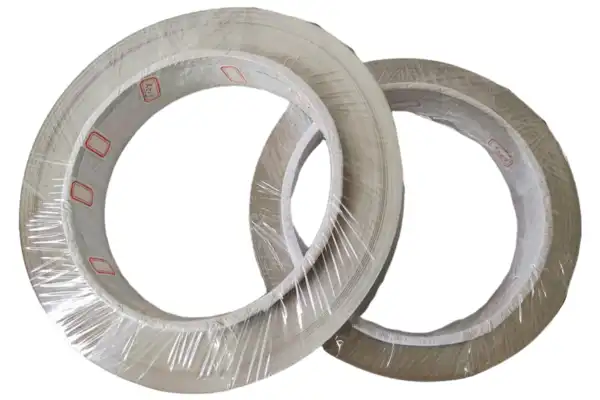

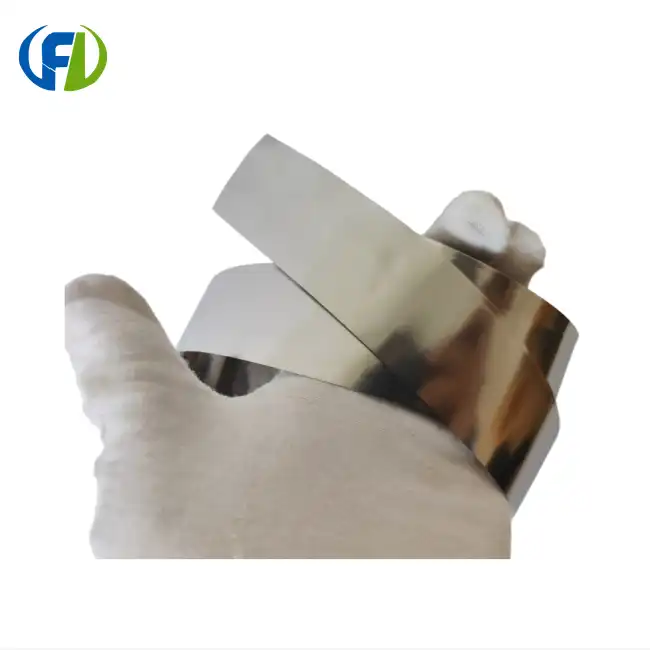

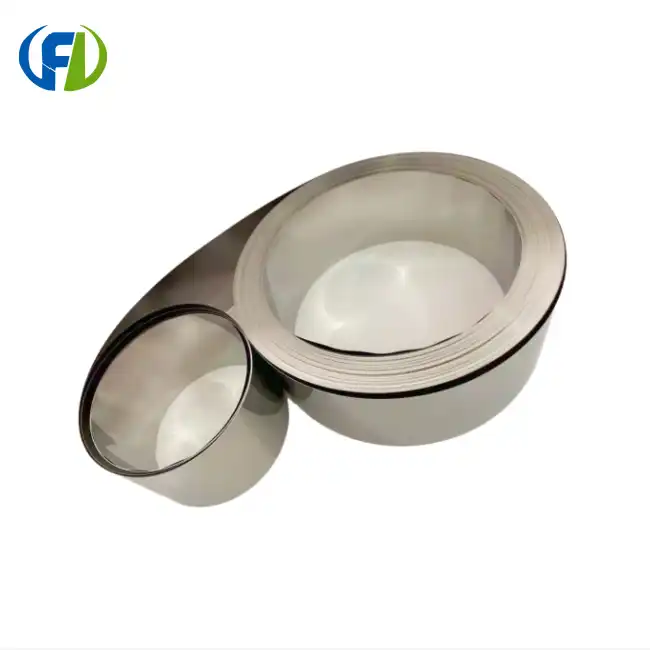

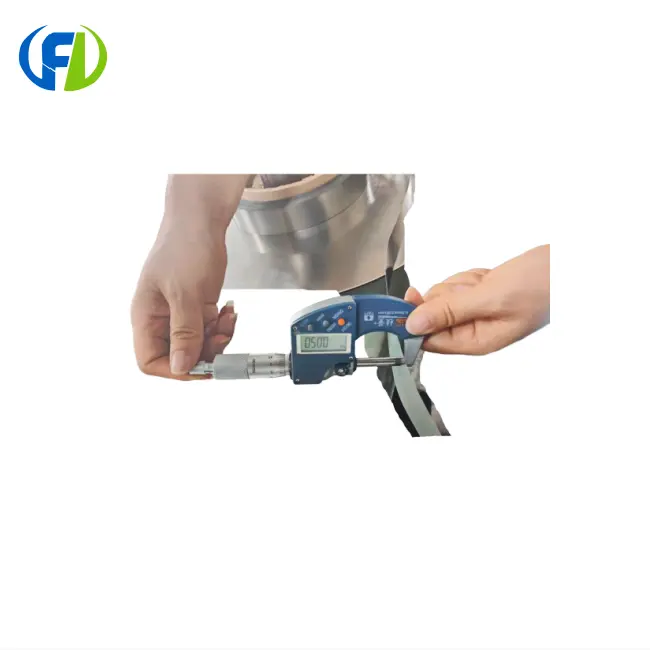

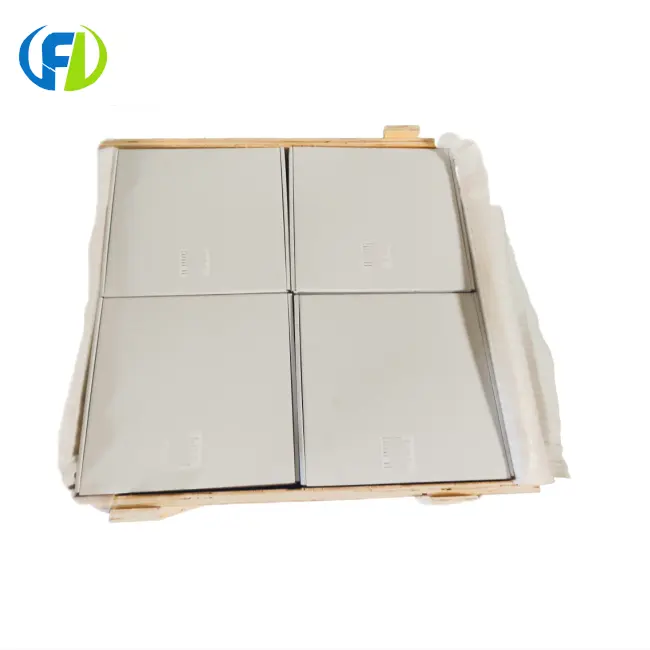

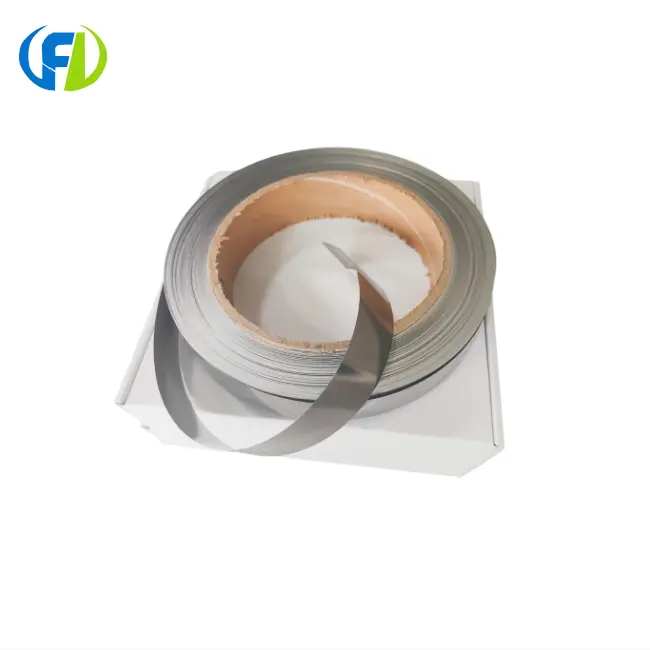

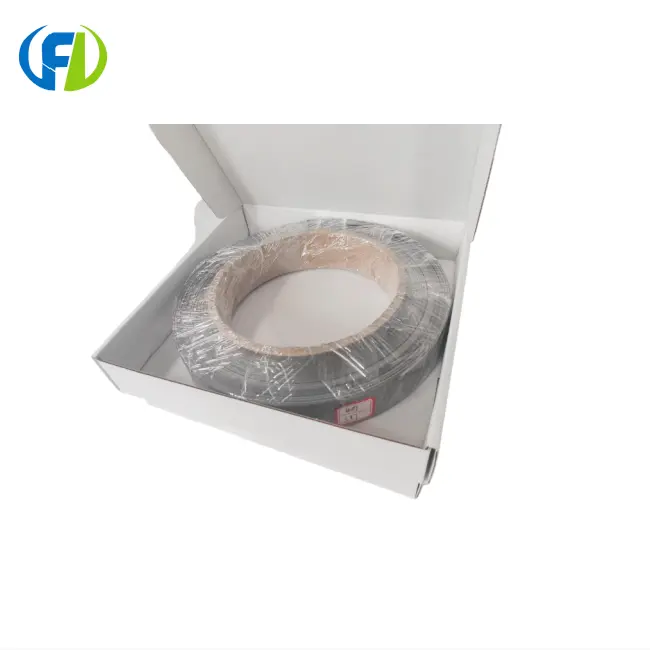

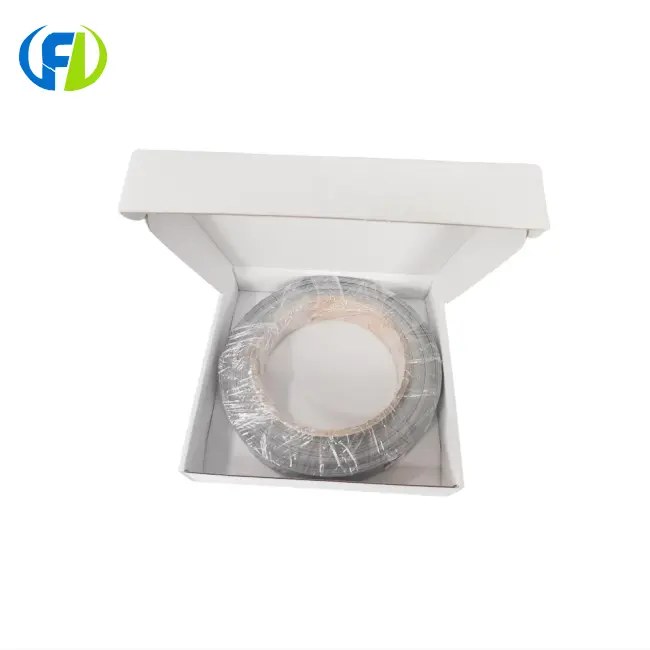

0.05mm High Purity Zirconium Foil display picture

WhatsApp&Wechat: 86 13571190943
E-mail: Jenny@bjfreelong.com

Buy 0.05mm High Purity Zirconium Foil

Tolerance of 0.05mm Zirconium foil

Thickness (mm)	Thickness tolerance (mm)	Width (mm)	Width tolerance (mm)	Length (mm)	Length tolerance (mm)
>0.05~0.07	±0.007	50~150	±2.0	100~1200	±5.0
>0.07~0.1	±0.010	50~200	±2.0	100~1200	±5.0
>0.1~0.13	±0.025	50~200	±2.0	100~1200	±5.0
>0.13~0.2	±0.04	50~200	±2.0	100~1200	±5.0
>0.2~0.4	±0.05	50~200	±2.0	100~1200	±5.0
>0.4~0.65	±0.08	50~200	±2.0	100~1200	±5.0
>0.65~1.0	±0.10	50~200	±2.0	100~1200	±5.0

Main Application Areas

Nuclear Industry: As cladding material for nuclear reactor fuel rods, control rod guide tubes, and core structural components, its low neutron absorption and radiation corrosion resistance ensure the safety and integrity of nuclear fuel.

Electronics and Semiconductors:
Thin Film Deposition: As an evaporation source or sputtering target in Physical Vapor Deposition (PVD) and Chemical Vapor Deposition (CVD) processes, used to prepare functional thin films.

Electromagnetic Shielding: Used for electromagnetic interference (EMI) and radiation shielding in electronic equipment.

Key Components: Used in sensors, actuators, electrical connectors, and MLCCs (Multilayer Ceramic Capacitors).

Chemical and Aerospace:
Chemical Equipment: Used to manufacture reactor linings, heat exchangers, valves, pump shafts, and gaskets operating in highly corrosive and high-temperature environments.

Aerospace: Used as aircraft engine components, thermal shields, and insulation materials, utilizing its high melting point, oxidation resistance, and lightweight yet high strength.

Medical and Dental: Used in the manufacture of bioceramic implants such as dental abutments, all-ceramic crowns, and artificial hip joints, favored for their biocompatibility and aesthetics. In the field of new energy, as the core electrolyte material of solid oxide fuel cells (SOFC) and a key substrate for oxide electrolytes (such as lithium lanthanum zirconium oxide LLZO) in solid-state batteries, it is an important material for future energy technologies.

0.05mm High Purity Zirconium Foil Product Advantages

1. Excellent corrosion resistance: Zirconium can remain stable in a variety of strong acid and strong alkali environments, and is not easily oxidized and corroded.
2. High temperature stability: The melting point is as high as 1852℃, suitable for high temperature environments, and has stable performance.
3. Good mechanical properties: It has excellent ductility and toughness, and is easy to process and form.
4. High purity: 99.95% and above high purity ensures that the material has excellent performance in high-end applications.
5. Biocompatibility: non-toxic, non-radioactive, suitable for medical devices and human implants.

Our advantage

1. Equipment Advantages

There are planing machine, milling machine, annealing furnace, laser cutting machine, bending machine, leveling machine, punching machine and forging hammer, etc.

2. The Product Advantages

Large quantity of spot stock, can provide samples, can be processed and customized according to the drawings.

3. Price Advantages

Source factory production, no middlemen, factory price delivery.

4. Quality Advantages

Provide material report, if customer needs, can provide third party test report.

5.And Service Advantages

Professional customer service throughout the service for you, if you encounter product quality problems can be returned free of charge.

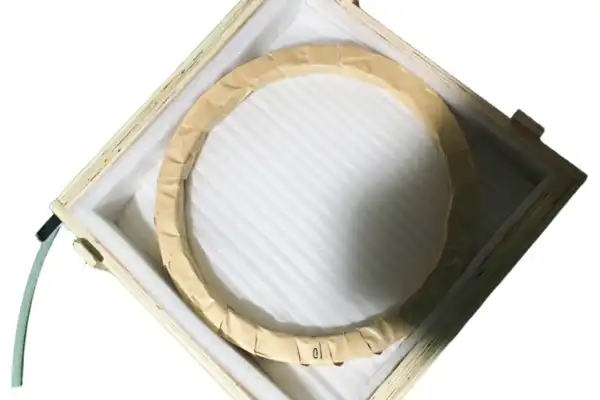

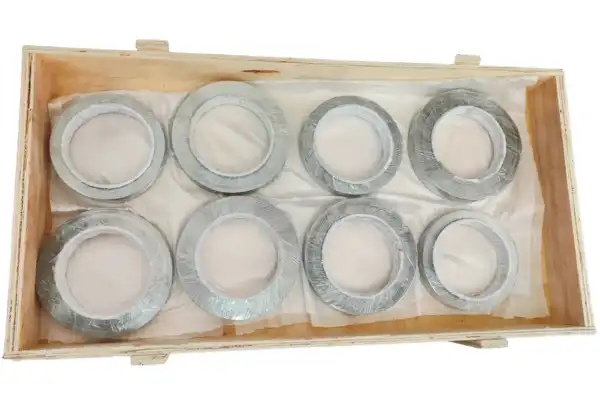

Our Packaging

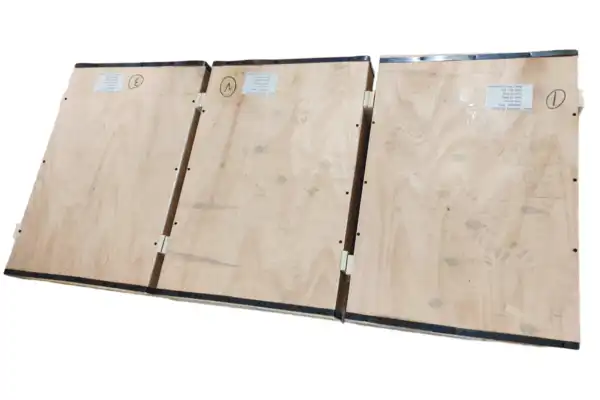

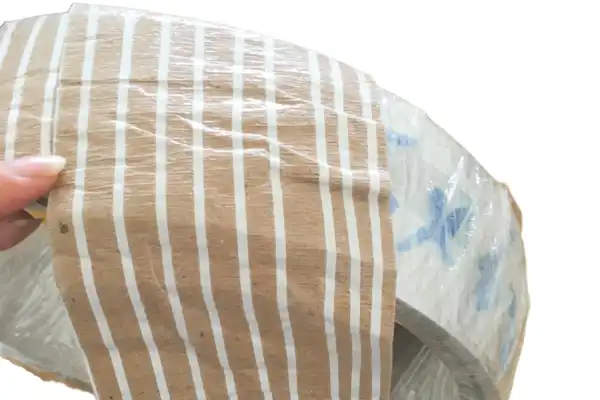

Package
