0.6mm Zirconium Foil – ASTM B551 R60702 / R60705

Origin: Baoji, Shaanxi, China
Brand: FRL Metal
Density: 6.51 g/cm³
Grade: R60702, R60705, R60804, R60001, R60901.
Certification: ISO 9001
Thickness: 0.05–0.6 mm
Width: 50-300mm

Standard: ASTM B551
MOQ: 5kg
Payment Terms:T/T
Packaging Details:Plywood case
Product Description

0.6mm zirconium foil application:

1. Chemical industry: Zirconium foil is widely used in the chemical industry, especially in corrosive environments. It can be used as the inner lining of acid-resistant and alkali-resistant containers to withstand high temperature and corrosive media.

2. Electronics industry: Because zirconium foil has good electrical conductivity and low resistivity, it is often used in the electronics industry to manufacture devices such as electrodes, capacitors, and integrated circuit substrates.

3. Thermal barrier coating: Zirconium foil can be used as a substrate for thermal barrier coatings for high-temperature equipment such as aircraft engines and gas turbines to provide excellent heat resistance and corrosion resistance.

4. Aerospace industry: Due to the high melting point and excellent corrosion resistance of zirconium foil, it is used in the aerospace field to manufacture combustion chamber parts, engine parts and guide vanes, etc.

5. Medical devices: The application of zirconium foil in medical devices includes artificial joints, implants and dental equipment. It is biocompatible and corrosion-resistant, suitable for contact with human tissue.

6. Arts and crafts: Zirconium foil can be used to make decorations, arts and crafts, such as carvings, ornaments and souvenirs.


Material: Zirconium & Zirconium alloy
Grade: R60702, R60705, R60804, R60001, R60901
Purity: >99.2%
Density: 6.51g/cm³
Standard: ASTM B551
Size: 0.05-0.6mm*50-500*Lmm (Dimensions can also be customized)
Shape: Plate/sheet/foil
Surface: Polished
MOQ: 5kg
Custom: Yes, we can OEM,ODM
Package: Plywood case
Country of origin: Shaanxi,China
Application: 1.Chemical processing,medicalinstruments etc.
                     2.Aerospace,Indusrty,Navigation,Smelting,Chemical plants,and soon.
                     3.Plate heat exchanger, andcondensers
                     4.Chemical and medicalequipment.

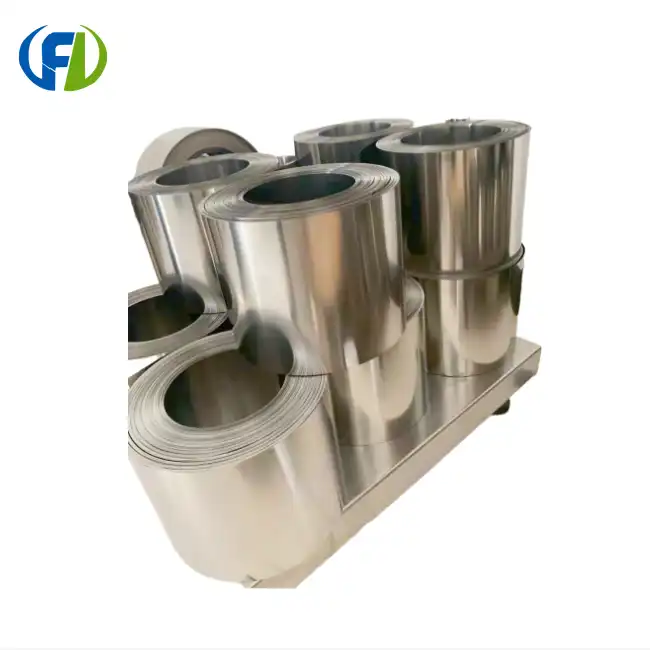

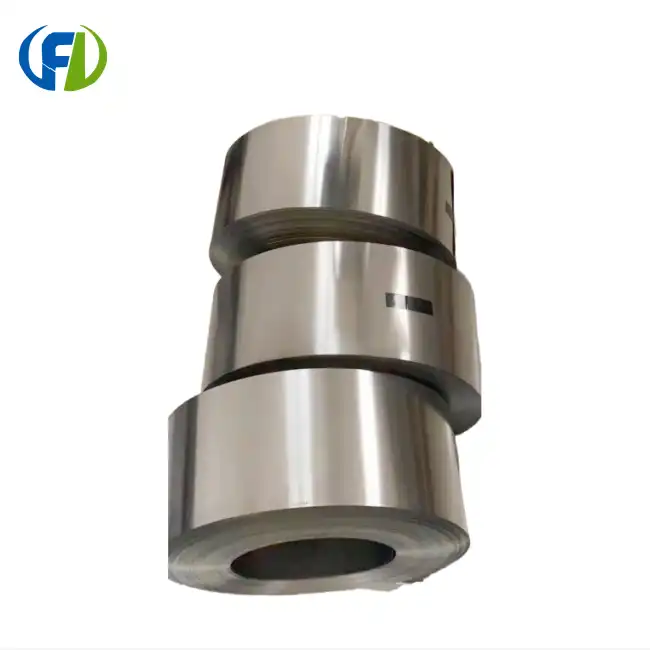

0.6mm Zirconium Foil picture display

0.6mm Zirconium Foil Polished Surface ASTM B551 0.6mm Zirconium Foil R60702 – FRL Metal China Custom Width 0.6mm Zirconium Foil Strip R60705


WhatsApp&Wechat: +86 13571190943
E-mail: Jenny@bjfreelong.com



0.6mm Zirconium Foil contact information



Tolerance of Zirconium foil

Thickness

(mm)

Thickness tolerance

(mm)

Width

(mm)

Width tolerance

(mm)

Length

(mm)

Length tolerance

(mm)

>0.05~0.07 ±0.007 50~150 ±2.0 100~1200 ±5.0
>0.07~0.1 ±0.010 50~200 ±2.0 100~1200 ±5.0
>0.1~0.13 ±0.025 50~200 ±2.0 100~1200 ±5.0
>0.13~0.2 ±0.04 50~200 ±2.0 100~1200 ±5.0
>0.2~0.4 ±0.05 50~200 ±2.0 100~1200 ±5.0
>0.4~0.65 ±0.08 50~200 ±2.0 100~1200 ±5.0
>0.65~1.0 ±0.10 50~200 ±2.0 100~1200 ±5.0


Chemical Content of Zirconium Foil:

Grade Element composition(%)<
Zr+Hf Hf Fe Fe+Cr Sn H N C Nb O
R60702 99.2 4.5   0.2 / 0.005 0.025 0.05 / 0.16
R60704 97.5 4.5   0.20~0.40 1.0~2.0 0.005 0.025 0.05 / 0.18
R60705 95.5 4.5   0.2 / 0.005 0.025 0.05 2.0~3.0 0.18
R60001 / 0.010  0.150  / 0.0050  0.0025 0.0065 0.027 / /
R60804  (Zr-4) / 0.010  0.18-0.24 0.28-0.37 1.2-1.70 0.0025 0.0065 0.027 / 0.09-0.16
R60901  (Zr-2.5Nb) / 0.010  0.150  / 0.0050  0.0025 0.0080  0.027 2.40-2.80 0.09-0.15


Advantages of zirconium foil:

1.High temperature stability: Zirconium foil has excellent high temperature stability and can maintain its physical and chemical properties in high temperature environments. This makes it useful in high temperature applications such as aerospace and gas turbines.

2.Excellent mechanical properties: Although the thickness of zirconium foil is only 0.6 mm, it has excellent tensile strength and hardness. This allows it to withstand high-intensity and high-pressure environments in various applications, with a long service life.

3.Lightweight: Zirconium foil is a relatively lightweight material with a density of about 6.5 grams per cubic centimeter. This makes it ideal in applications where weight reduction is required, such as in aerospace and automotive manufacturing.

4.Excellent electrical conductivity: Zirconium foil has good electrical conductivity and low resistivity, making it an important material in the electronics industry. It can be used to make electrodes, capacitors and other electronic devices for efficient current conduction and stability of electronic components.

5.Biocompatibility: Zirconium foil has good biocompatibility in the medical field and is suitable for medical devices in contact with human tissue. This makes it widely used in applications such as artificial joints, implants and dental devices.



FAQ

1. What grades of 0.6mm zirconium foil does FRL Metal supply?

FRL Metal supplies 0.6mm zirconium foil in UNS grades R60702 (Zr702), R60704 (Zr704), R60705 (Zr705), R60001, R60804, and R60901, all manufactured in compliance with ASTM B551 specifications.

2. Can 0.6mm zirconium foil be customized to specific widths?

Yes. Our standard width range for 0.6mm zirconium foil is 50–500mm. We offer OEM and ODM services and can slit or cut foil to your exact width and length requirements. Please contact us with your specifications for a custom quote.

3. What is the minimum order quantity (MOQ) for 0.6mm zirconium foil?

The standard MOQ for 0.6mm zirconium foil is 5 kg. For first-time buyers or sample orders, we can discuss flexible quantities. Contact FRL Metal to arrange a trial order.

4. What surface finish options are available for 0.6mm zirconium foil?

Our 0.6mm zirconium foil is supplied with a polished surface finish as standard. Additional surface treatments, including pickled and descaled finishes, can be provided based on your application requirements. Specify your surface needs when requesting a quotation.

5. Is 0.6mm zirconium foil suitable for high-temperature chemical processing?

Yes. Zirconium foil exhibits exceptional corrosion resistance in highly corrosive environments, including hot acids and alkalis. With a melting point of 1,855°C, 0.6mm zirconium foil is ideal for use as inner linings in acid-resistant containers, plate heat exchangers, and condensers in chemical processing plants.

6. How is 0.6mm zirconium foil packaged for shipment?

All 0.6mm zirconium foil is securely packed in seaworthy plywood cases to prevent damage during transit. Each package is labeled with grade, dimensions, batch number, and weight. Custom packaging arrangements can be made upon request.

7. What certifications does FRL Metal’s 0.6mm zirconium foil carry?

FRL Metal’s 0.6mm zirconium foil is manufactured under ISO9001 quality management certification. We provide Mill Test Certificates (MTC) with every shipment, verifying chemical composition, mechanical properties, and dimensional tolerances per ASTM B551.

8. What are the typical lead times for 0.6mm zirconium foil orders?

Standard sizes of 0.6mm zirconium foil are often available from stock for immediate dispatch. Custom orders typically require 15–25 working days depending on quantity and specifications. Contact FRL Metal with your order details for an accurate delivery schedule.

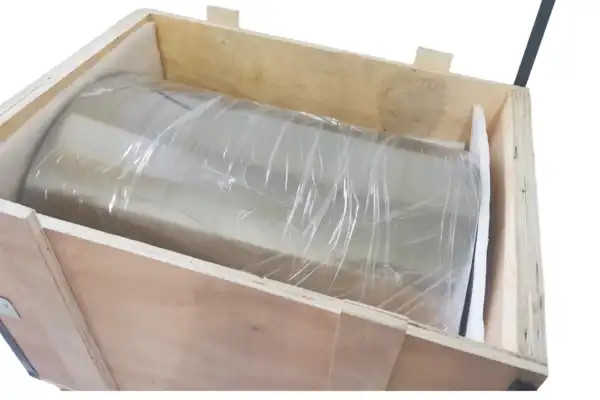

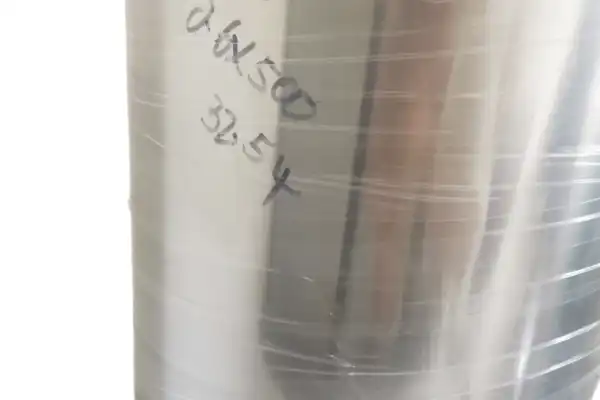

Our Packaging
