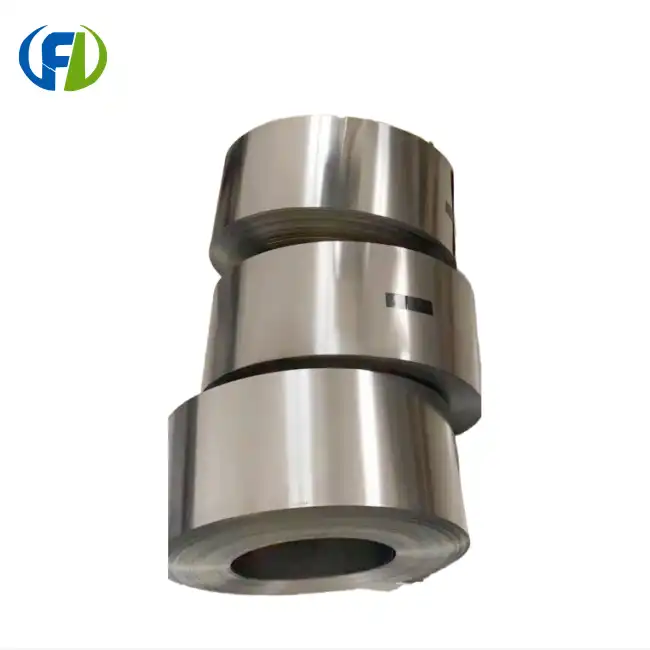

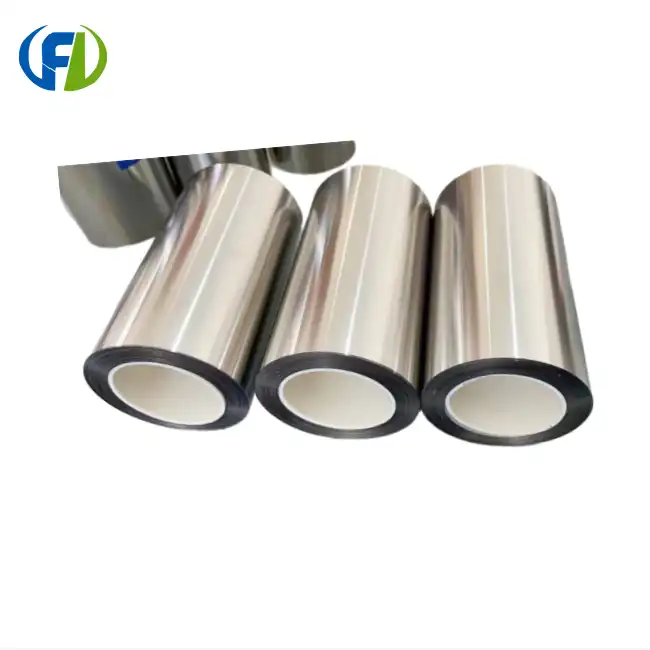

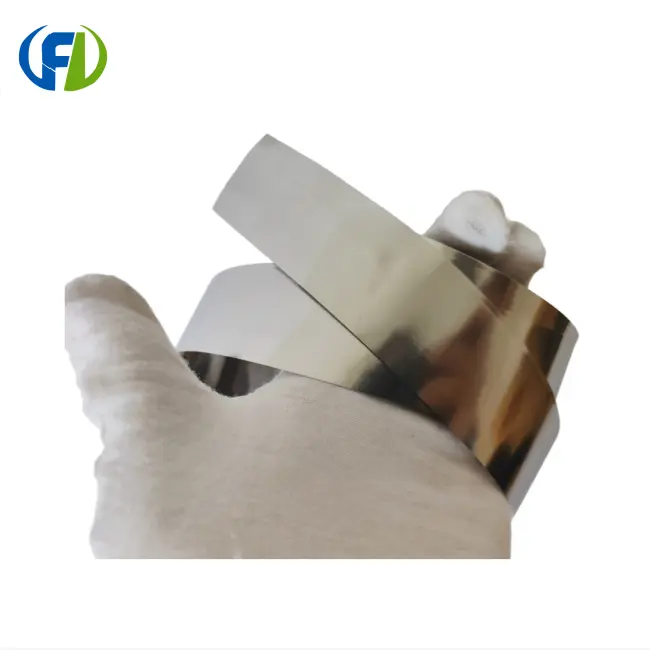

702 zirconium foil (Zr702 / UNS R60702) is a thin-rolled zirconium metal product manufactured through precision cold rolling and vacuum annealing processes. With a thickness range of 0.05mm to 0.5mm and width from 50mm to 300mm, it offers an exceptional combination of corrosion resistance, high-temperature stability, and mechanical strength.
Zr702 is commercially pure zirconium grade known for its outstanding resistance to a wide range of corrosive media, including hydrochloric acid, sulfuric acid, nitric acid, and alkaline solutions. It maintains stable mechanical properties at elevated temperatures and exhibits low thermal neutron absorption cross-section, making it ideal for nuclear applications.
FRL Metal produces 702 zirconium foil in Baoji, China — the hub of China's non-ferrous metal industry. Every coil is precision-rolled to tight tolerances, vacuum-annealed for uniform grain structure, and 100% inspected for surface defects and dimensional accuracy. Full mill test certificates (MTC EN 10204 3.1) are provided with each shipment.
| Parameter | Detail |
| Product Name | 702 Zirconium Foil (Zr702) |
| Material Grade | Zr702 / UNS R60702 |
| Standard | ASTM B551, ASTM B523 |
| Density | 6.51 g/cm³ |
| Thickness | 0.05mm – 0.5mm (custom available) |
| Width | 50mm – 300mm (custom available) |
| Length | Coil or cut-to-length (max 6000mm) |
| Surface Finish | Cold rolled, annealed, pickled, polished |
| Processing Technology | Cold rolling + vacuum annealing |
| Tensile Strength | ≥ 380 MPa |
| Yield Strength | ≥ 205 MPa |
| Elongation | ≥ 16% |
| Temper | Annealed (soft) |
| Origin | Baoji, Shaanxi, China |
| Brand | FRL Metal |
| Certification | ISO9001 |
| MOQ | 5 kg (negotiable) |
| Delivery Time | 7–15 days |
| Packaging | Plywood case (export standard) |
| Payment Terms | T/T |
| Price Terms | FOB, CIF, EXW |
![]() |
![]() |
|
![]() |
1. Superior Corrosion Resistance: Zr702 zirconium foil resists attack from hydrochloric acid, sulfuric acid, nitric acid, acetic acid, formic acid, and alkaline solutions at concentrations and temperatures that would rapidly degrade stainless steel, titanium, and tantalum. This makes it the preferred material for chemical processing equipment handling aggressive media.
2. High-Temperature Stability: 702 zirconium foil retains its mechanical strength and structural integrity at temperatures up to 400°C in continuous service. Its oxidation resistance and creep resistance at elevated temperatures make it suitable for furnace components and high-temperature electrochemical applications.
3. Low Thermal Neutron Absorption: Zirconium has an exceptionally low thermal neutron absorption cross-section (0.18 barns), making Zr702 foil the material of choice for nuclear fuel cladding, reactor structural components, and radiation shielding applications.
4. Excellent Formability & Weldability: Zr702 foil can be deep-drawn, stamped, bent, and roll-formed into complex shapes without cracking. It can be welded using TIG (GTAW) welding in inert gas or vacuum environments, enabling fabrication into custom components.
5. Biocompatibility: Zirconium is biologically inert and does not cause adverse tissue reactions. Zr702 foil is used in medical implants, surgical instruments, and dental applications where long-term biocompatibility is critical.
6. Low Thermal Conductivity: With a thermal conductivity of approximately 22.7 W/(m·K), zirconium foil provides thermal insulation in specialized applications, reducing heat transfer in sensitive components.
7. High Purity & Low Impurity Content: FRL Metal's Zr702 foil is produced from high-purity zirconium sponge, with tightly controlled levels of Hf, Fe, Cr, Sn, and O₂ to meet ASTM B551 specifications.
Chemical Processing Industry: Lining for reactors, distillation columns, heat exchangers, condensers, pumps, valves, and piping systems handling hydrochloric acid, sulfuric acid, nitric acid, and caustic soda at concentrations and temperatures beyond the limits of stainless steel and titanium.
Nuclear Energy: Nuclear fuel cladding tubes, reactor core structural components, control rod guide tubes, and spacer grids. Zr702's low neutron absorption cross-section is critical for maintaining reactor efficiency.
Aerospace & Defense: High-temperature structural components, jet engine parts, missile components, and heat shields where lightweight, high strength, and thermal stability are required.
Medical & Healthcare: Surgical implants, dental prosthetics, pacemaker casings, and drug-eluting stent components. Zirconium's biocompatibility and MRI compatibility make it ideal for long-term implantable devices.
Electronics & Battery: High-temperature capacitors, getter material in vacuum tubes, battery current collectors, and specialized electronic components requiring corrosion-resistant thin foil.
Scientific Research & Laboratory: Sample preparation foils for X-ray fluorescence (XRF) analysis, neutron scattering experiments, and transmission electron microscopy (TEM) sample support grids.
Metallurgical Industry: As an alloying element additive and deoxidizer in steel and copper production, and as a master alloy component for specialty metal fabrication.
Catalysis & Chemical Sensors: Catalyst support structures and sensing electrode materials in electrochemical sensors for harsh environments.
Q1: What is the difference between Zr702 and Zr705 zirconium?
A: Zr702 (UNS R60702) is commercially pure zirconium, offering maximum corrosion resistance and excellent formability. Zr705 (UNS R60705) is zirconium alloyed with 2.5% niobium, which provides higher strength but slightly reduced corrosion resistance. For most chemical processing applications, Zr702 is the standard choice.
Q2: What thicknesses are available for 702 zirconium foil?
A: We produce Zr702 foil in thicknesses from 0.05mm to 0.5mm. For thicknesses above 0.5mm, the product is classified as zirconium sheet or plate. Custom thicknesses within this range can be produced upon request with tolerances as tight as ±0.005mm.
Q3: Can 702 zirconium foil be welded?
A: Yes. Zr702 has excellent weldability using TIG (GTAW) welding in a clean, inert atmosphere (argon shielding). Contamination from oxygen, nitrogen, or carbon must be strictly avoided during welding. We recommend using matching Zr702 filler wire and ensuring both surfaces are clean and oxide-free before welding.
Q4: What is the maximum temperature for 702 zirconium foil in service?
A: Zr702 foil can be used continuously up to approximately 400°C in air. In vacuum or inert gas environments, it can withstand higher temperatures. Above 400°C in air, zirconium begins to absorb oxygen and nitrogen, which can cause embrittlement.
Q5: How is the zirconium foil packaged for export shipping?

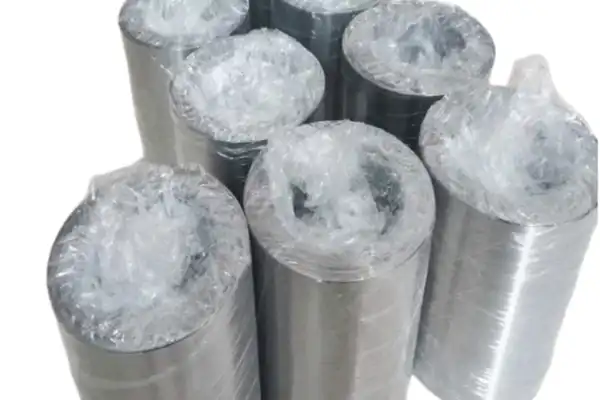

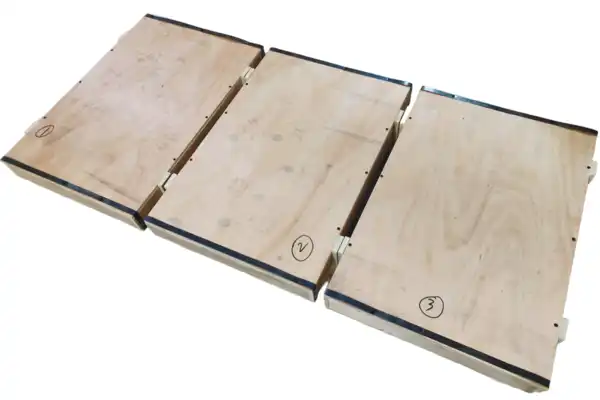

A: Foil coils are wrapped in moisture-proof plastic film, cushioned with foam padding, and packed in export-grade plywood cases with desiccant packets. Flat sheets are interleaved with protective paper and stacked in wooden crates. All packaging meets international export standards.
Q6: Do you provide mill test certificates (MTC)?
A: Yes. Every shipment includes a full MTC in compliance with EN 10204 3.1, detailing chemical composition, mechanical properties, dimensions, and heat number.
Q7: What is the minimum order quantity (MOQ)?
A: The standard MOQ is 5kg for foil products. We also accept smaller sample orders (minimum 1 piece) for evaluation purposes. Bulk orders qualify for volume discounts.
Q8: How quickly can you ship my order?
A: Standard sizes in stock ship within 7–15 days. Custom specifications require 15–25 days depending on thickness and quantity. Express shipping (DHL, FedEx, UPS) is available for small orders; sea freight for bulk orders.
Q9: Can you produce zirconium foil to my specific dimensions?
A: Yes. We offer custom slitting to widths from 10mm to 300mm, and cut-to-length for flat sheets. We can also produce custom tempers (stress-relieved vs. fully annealed) and surface finishes (pickled, polished, or bright annealed).
Q10: Is zirconium foil radioactive?
A: No. Naturally occurring zirconium (Zr702) is non-radioactive. While zirconium is used in nuclear applications due to its low neutron absorption, the Zr702 material itself is completely safe to handle and is not a radiation hazard.

Baoji FRL New Material Technology Development Co., Ltd is headquartered in Baoji City — known as "China's Titanium Valley." As a professional manufacturer and exporter, we specialize in the production, OEM processing, and global sales of zirconium, titanium, nickel, niobium, tantalum and their alloys.
With years of industry experience, we have earned the trust of numerous clients and strategic partners worldwide. Our products have been authorized by leading enterprises across Australia, Korea, Germany, the United States, the United Kingdom, Malaysia, Central Asia, the Middle East, Taiwan and other regions.
At FRL Metal, quality and service are not just commitments — they are our core values. We strictly adhere to international standards (ASTM, AMS, etc.) and maintain ISO 9001 certification throughout our production process. Every batch undergoes rigorous testing to ensure it meets or exceeds customer specifications.
Whether you need standard products or custom solutions, our experienced team is ready to provide professional support from inquiry to delivery. We look forward to building a successful partnership with you.
