Titanium Screw and Nuts

Origin: Baoji, Shaanxi, China
Brand: FRL metal
Density: 4.51g/cm³
Size: M2,M2.5,M3,M4,M5,M12,M14 etc.
Grade: Gr1,Gr2,Gr5
Certification: ISO9001
Delivery Time: 5~7days
Payment Terms: T/T
Packaging Details: Plywood case
Product Description

Titanium Screw and Nuts Product Overview

Titanium screws and nuts are high-performance fasteners manufactured from commercially pure titanium (Gr1, Gr2) and titanium alloy (Gr5 / Ti-6Al-4V). They offer a unique combination of high strength-to-weight ratio, excellent corrosion resistance, and biocompatibility that makes them superior to traditional steel and stainless steel fasteners in demanding applications.

At 4.51 g/cm³, titanium is approximately 40% lighter than steel, while Gr5 titanium alloy achieves tensile strengths exceeding 950 MPa — stronger than most steel fasteners. This exceptional strength-to-weight ratio makes titanium screws and nuts the preferred choice for aerospace, motorsport, and high-performance applications where every gram matters.

Titanium fasteners also exhibit outstanding corrosion resistance in seawater, chlorine solutions, oxidizing acids, and body fluids. They do not suffer from galvanic corrosion when paired with carbon fiber composites, making them ideal for modern composite structures in aerospace and automotive engineering.

FRL Metal has manufactured and exported titanium screws and nuts for over 10 years from Baoji, China — the titanium valley of the world. We produce fasteners to DIN, ISO, GB, ASME, and ANSI standards, with full customization of size, thread type, head style, and surface finish. Every order includes dimensional inspection reports and material certificates.

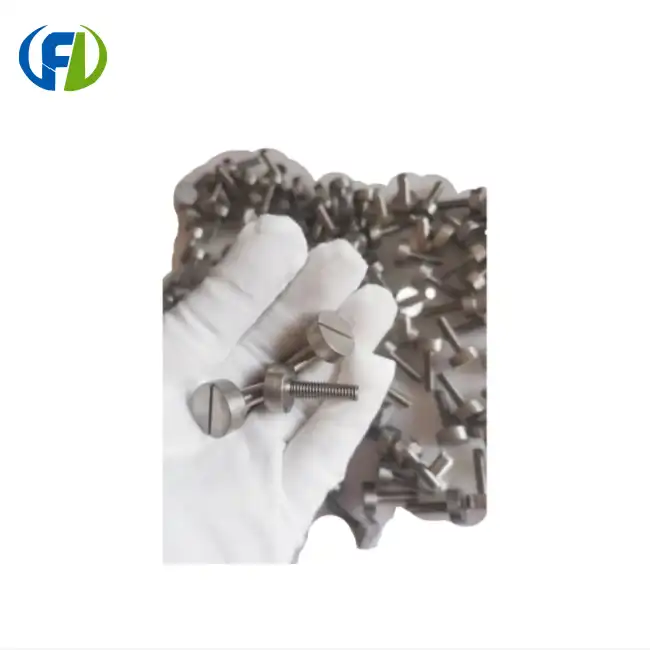

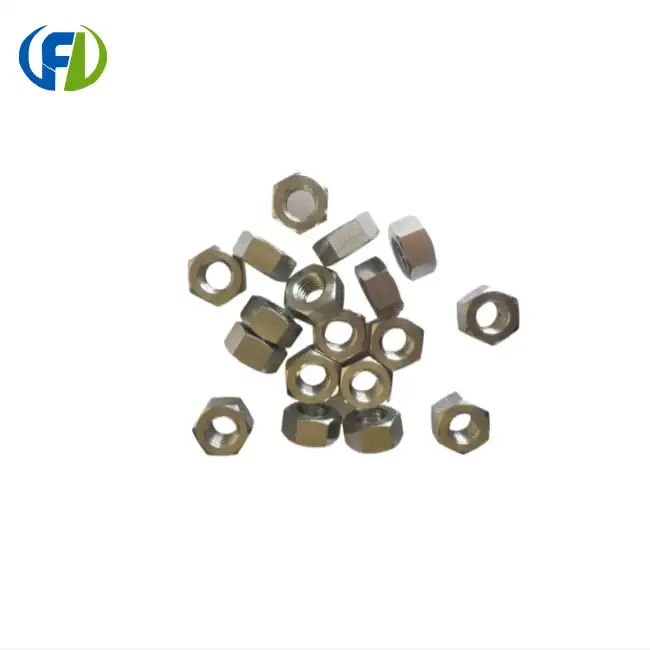

Titanium Screw and Nuts Product Photos

Customized Titanium Screw and Nuts Titanium Screw and Nuts price Titanium Screw and Nuts suppliers

WhatsApp&Wechat: +86 13571190943
E-mail: Jenny@bjfreelong.com

Address: No.188. Gaoxin Ave, Baoji City, Shannxi, China.

Titanium Screw and Nuts contact information





Titanium Screw and Nuts Specifications & Standards

Titanium  bolts/nuts and screws Grade: Gr1,Gr2,Gr5.

Size: M2,M2.5,M3,M4,M5,M12,M14 etc.

Item No.

  DIN-Stabdard

Desciption in English

ISO-Standard

GB-Standard

1

DIN 1

Taper  pins

ISO2339

GB117

2

DIN7

Parallel  pins

ISO2339

GB119-86

3

DIN84

Slotted cheese head screw

ISO1207

GB65-85

4

DIN125-A

Plain washers

ISO7089

GB97.1-85

5

DIN125-B

Medium washers

ISO7090

GB97.2-85

6

DIN126

Plain washers

ISO7091



7

DIN558

Hexagon screws

ISO4018



8

DIN601

Hexagon blots

ISO4016



9

DIN923

Slotted pan head screw with shoulder



GB830-88

10

DIN931

Hexagon head screws

ISO4014

GB5782-86

11

DIN933

Hexagon head screws

ISO4017

GB5783-86

12

DIN934

Hexagon full nuts

ISO4032

GB6170-86

13

DIN935

Hexagon slotted and castle nuts

ISO7035

GB6178-86

14

DIN7972

Countersunk flat head tapping screws with slot

ISO1482

GB5283-85

   Etc.



Key Characteristics & Material Properties

1. Exceptional Strength-to-Weight Ratio: Gr5 (Ti-6Al-4V) titanium screws deliver tensile strength ≥950 MPa while being 40% lighter than equivalent steel fasteners. This enables significant weight reduction in aerospace, automotive, and sporting goods applications without compromising structural integrity.

2. Superior Corrosion Resistance: Titanium fasteners resist corrosion in seawater, wet chlorine, hypochlorite solutions, oxidizing acids (nitric, chromic), and organic acids. Unlike stainless steel, titanium does not suffer from pitting corrosion, crevice corrosion, or stress corrosion cracking in chloride environments.

3. Biocompatibility: Titanium is non-toxic and biologically inert, producing no allergic reactions or rejection in the human body. Gr1 and Gr2 titanium screws are widely used in medical implants, dental prosthetics, and surgical fixation devices. They are also MRI-compatible (non-ferromagnetic).

4. High Temperature Performance: Titanium maintains mechanical strength at elevated temperatures. Gr5 titanium retains useful strength up to 400°C, making titanium fasteners suitable for engine compartments, exhaust systems, and high-temperature industrial equipment.

5. Non-Magnetic Properties: Titanium is completely non-magnetic, making titanium screws and nuts ideal for electronic equipment, scientific instruments, and MRI-adjacent applications where magnetic interference must be eliminated.

6. Galvanic Compatibility: When used with carbon fiber reinforced polymer (CFRP) structures, titanium fasteners minimize galvanic corrosion — a critical advantage in modern aircraft and racing car construction where carbon composite panels are joined with fasteners.

7. Anodizing Capability: Titanium can be anodized to produce a durable, interference-layer color surface (gold, blue, purple, rainbow, etc.) without dyes or coatings. This is valued in premium consumer products, jewelry, and aftermarket automotive parts.



Thread Pitch Specifications (Metric & Imperial)

Spec.

Thread pitch

Spec.

Number of threads



Coarse pitch

Fine pitch

Very fine pitch

Coarse number

Fine number

M3

0.5

0.35



4#

40

48

M4

0.7

0.5



6#

32

40

M5

0.8

0.5



8#

32

36

M6

1.0

0.75



10#

24

32

M7

1.0

0.75



12#

24

28

M8

1.25

1.0

0.75

1/4

20

28

M10

1.5

1.25

1.0

4/16

18

24

M12

1.75

1.5

1.25

3/8

16

24

M14

2.0

1.5

1.0

7/16

14

20



Advantages of FRL Metal Titanium Screw and Nuts

Extensive Stock Inventory: We maintain long-term stock of standard sizes (M2–M14) in Gr2 and Gr5 for immediate shipment. Custom sizes and grades are produced to order with short lead times.

Premium Surface Quality: Every screw and nut features a bright, chemically cleaned surface free of contaminants, oxidation, and processing residue. Optional anodized coloring (gold, blue, purple, rainbow) is available for aesthetic applications.

Optimized Microstructure: Our forging and machining processes produce uniform grain structure with densified microstructure, ensuring consistent mechanical properties and extended service life under cyclic loading.

Precision Machining Tolerances: CNC machining and thread rolling achieve dimensional tolerances to DIN/ISO 6g (external thread) and 6H (internal thread) standards. Every fastener is gauged for thread fit, head geometry, and length accuracy.

Full Standard Compliance: We produce fasteners to DIN, ISO, GB, ASME B18, and ANSI standards. Complete part number cross-referencing is available (e.g., DIN933 = ISO4017 = GB5783).

Custom Manufacturing: Send us your drawing, sample, or specification — we produce custom titanium fasteners to your exact requirements, including special head shapes, thread profiles, drive types, and surface treatments.

Material Certification: Every shipment includes material certificates detailing chemical composition and mechanical properties per ASTM B348 specification. Full traceability from raw material to finished product.

Free Samples: We provide free sample fasteners for quality evaluation before bulk orders. Samples ship within 3 working days via DHL/FedEx.

Professional After-Sales Service: Our technical team provides installation guidance, torque specifications, and material selection consultation. We stand behind every order with responsive after-sales support.

Applications of Titanium Screw and Nuts

Aerospace & Aviation: Aircraft fuselage panel fastening, engine nacelle assemblies, satellite and spacecraft structural connections, interior cabin fittings. Titanium's high strength-to-weight ratio reduces aircraft weight while maintaining structural integrity under flight loads and thermal cycling.

Marine & Offshore: Offshore oil platform structural fasteners, subsea equipment assembly, ship hull and deck fittings, diving equipment components. Titanium fasteners resist seawater corrosion indefinitely, unlike stainless steel which suffers from pitting and crevice corrosion in marine environments.

Medical & Healthcare: Bone screws for orthopedic fixation, dental implant abutments, spinal fixation systems, surgical instrument assembly, MRI equipment fasteners. Titanium's biocompatibility eliminates rejection risk, and its non-magnetic property ensures MRI safety.

Motorsport & Automotive: Formula 1 and racing car chassis fasteners, motorcycle engine and exhaust bolts, high-performance bicycle components, aftermarket tuning bolts. Gr5 titanium screws provide weight savings of 40% vs steel while withstanding vibration and thermal stress.

Chemical Processing: Reactor vessel and heat exchanger flange bolting, pipeline flange fasteners, pump and valve assembly bolts. Titanium resists corrosion from hydrochloric acid, sulfuric acid, nitric acid, and chlorine gas environments.

Electronics & Semiconductor: Semiconductor manufacturing equipment assembly, electronic enclosure fasteners, precision instrument screws. Non-magnetic titanium eliminates electromagnetic interference in sensitive electronic assemblies.

Sporting Goods & Consumer: High-end bicycle frames and components, golf club heads and hosel screws, camping and outdoor gear, eyewear frame screws, jewelry and watch case screws. Anodized titanium provides premium aesthetics with color options.

Energy & Power Generation: Wind turbine component fasteners, nuclear power plant equipment bolts, geothermal wellhead fittings. Titanium withstands corrosive environments and thermal cycling in energy applications.



Why Choose FRL Metal as Your Titanium Fastener Supplier?

10+ Years Manufacturing Experience: FRL Metal has specialized in titanium fastener production for over a decade. Our experienced technicians understand the unique machining characteristics of titanium and produce fasteners with precision and consistency.

Located in Baoji — China's Titanium Valley: Baoji produces over 80% of China's titanium materials. Our location gives us direct access to premium raw material sources, ensuring material quality from ingot to finished fastener while keeping costs competitive.

Full Grade Coverage: We stock Gr1 (commercially pure, maximum formability), Gr2 (commercially pure, balanced strength and ductility), and Gr5 (Ti-6Al-4V alloy, maximum strength) titanium. We can also supply other grades (Gr3, Gr4, Gr7, Gr9, Gr12) upon request.

Complete Standard Range: We produce fasteners to DIN, ISO, GB, ASME B18, and ANSI specifications. Over 200 standard part numbers are available in stock for immediate shipment. Cross-reference charts available for DIN-ISO-GB equivalents.

Custom Manufacturing Capability: Send us your drawing, CAD file, sample, or even a description — we produce custom titanium fasteners to your exact specifications. Special head shapes, thread profiles, lengths, and surface treatments are all available.

Precision CNC Machining: Our CNC machining centers achieve tolerances of ±0.01mm on critical dimensions. Thread rolling and grinding produce smooth, accurate thread profiles that ensure proper engagement and torque transfer.

Strict Quality Control: Every batch undergoes incoming material verification (OES spectrometer), in-process dimensional inspection (calipers, thread gauges, micrometers), and final outgoing inspection. Material certificates (ASTM B348) and dimensional reports accompany every shipment.

ISO9001 Certified: Our quality management system is certified to ISO9001 international standards, providing confidence in consistent product quality.

Surface Treatment Options: Bright (as-machined), pickled (chemically cleaned), polished (mirror finish), anodized (gold, blue, purple, rainbow, green colors), and PVD-coated finishes are available.

Flexible MOQ: Standard sizes available from 100 pcs. Custom fasteners from 500 pcs. Sample orders of 10–50 pcs accepted for evaluation. Volume discounts for orders above 10,000 pcs.

Fast Delivery: Stock items ship within 5–7 days. Custom production takes 15–20 days depending on complexity and quantity. Express shipping via DHL, FedEx, UPS for small orders; sea freight for bulk.

Global Export Experience: We have exported titanium fasteners to over 30 countries including the USA, Germany, UK, Japan, South Korea, Australia, and Malaysia. We handle all export documentation and international logistics.

Free Samples: We provide free sample fasteners for quality evaluation. Samples ship within 3 working days. Serious inquiries only.

Technical Support: Our engineering team provides torque specifications, material selection guidance (which grade for which application), and thread compatibility consultation to ensure your assembly performs correctly.



Frequently Asked Questions About Titanium Screw and Nuts

Q1: What is the difference between Gr2 and Gr5 titanium screws?
A: Gr2 is commercially pure titanium with moderate strength (tensile ≥345 MPa) and excellent corrosion resistance and formability. Gr5 (Ti-6Al-4V) is a titanium alloy with much higher strength (tensile ≥950 MPa) but slightly reduced corrosion resistance. Gr2 is preferred for corrosion-critical applications; Gr5 is preferred for strength-critical applications.

Q2: Are titanium screws as strong as steel screws?
A: Gr5 titanium screws have comparable tensile strength to Grade 8 steel fasteners (≥950 MPa vs ≥1040 MPa), while being 40% lighter. However, titanium has lower shear strength than steel. For shear-loaded applications, consult our engineers for proper sizing.

Q3: What sizes are available?
A: We stock standard metric sizes M2 through M14, and imperial sizes #4 through 1/2". Custom sizes outside this range can be produced upon request. Available thread pitches include coarse, fine, and extra-fine for metric; UNC and UNF for imperial.

Q4: Can titanium screws be reused?
A: Yes, titanium screws can be reused if they are not damaged, deformed, or showing thread wear. However, for critical applications (aerospace, medical, high-stress), we recommend using new fasteners for each assembly. Always inspect threads and head condition before reuse.

Q5: Do titanium screws gall or seize?
A: Titanium has a tendency to gall (cold weld) when threaded against titanium or other metals under high contact pressure. To prevent galling: (1) use different materials for screw and nut (e.g., titanium screw with stainless steel nut), (2) apply anti-seize lubricant, or (3) use silver-plated titanium fasteners for high-temperature applications.

Q6: Can I get colored titanium screws?
A: Yes. Titanium can be anodized to produce gold, blue, purple, green, rainbow, and other colors through interference-layer oxidation. This color is not a coating — it is formed by controlled oxidation of the titanium surface. Anodizing does not affect mechanical properties.

Q7: What standards do your titanium fasteners comply with?
A: We produce fasteners to DIN (German), ISO (International), GB (Chinese), ASME B18 (American), and ANSI standards. Our most common part numbers include DIN931, DIN933, DIN912, DIN934, DIN125, ISO4014, ISO4017, ISO4762, ISO4032, and their GB equivalents.

Q8: Can you produce custom titanium fasteners to my drawing?
A: Yes. Send us your drawing (PDF, DWG, STEP, or even a hand sketch with dimensions), and we will produce custom fasteners to your exact specifications. We can also work from a physical sample. Minimum order quantity for custom items is typically 500 pcs.

Q9: Do you provide material certificates?
A: Yes. Every shipment includes material certificates per ASTM B348, detailing chemical composition and mechanical properties. Certificate of Origin and mill test certificates (EN 10204 3.1) are also provided.

Q10: What is the minimum order quantity (MOQ)?
A: Standard stock sizes: MOQ 100 pcs per size. Custom sizes: MOQ 500 pcs per size. Sample orders: 10–50 pcs accepted for evaluation. Free samples available for serious inquiries.

Q11: How quickly can you ship my order?
A: Stock items ship within 5–7 days. Custom production takes 15–20 days. Express shipping (DHL, FedEx, UPS) takes 3–5 days to most countries. Sea freight takes 15–35 days depending on destination.

Q12: Are titanium screws magnetic?
A: No. Titanium is completely non-magnetic (paramagnetic). This makes titanium fasteners ideal for electronic equipment, scientific instruments, and MRI-adjacent applications where magnetic interference must be eliminated.

Q13: Can titanium fasteners be used in medical implants?
A: Yes. Gr1 and Gr2 titanium are widely used in medical implants (bone screws, dental implants, spinal fixation) due to their biocompatibility, corrosion resistance, and osseointegration capability. We can supply medical-grade titanium fasteners with enhanced surface finish and cleanliness per ASTM F136 (Gr5 ELI) or ASTM F67 (CP titanium) upon request.

Q14: How should titanium fasteners be stored?
A: Store in a clean, dry environment away from steel and other materials that could contaminate the surface. If stored long-term, keep in sealed plastic bags with desiccant. Avoid contact with iron particles that can cause surface staining.
