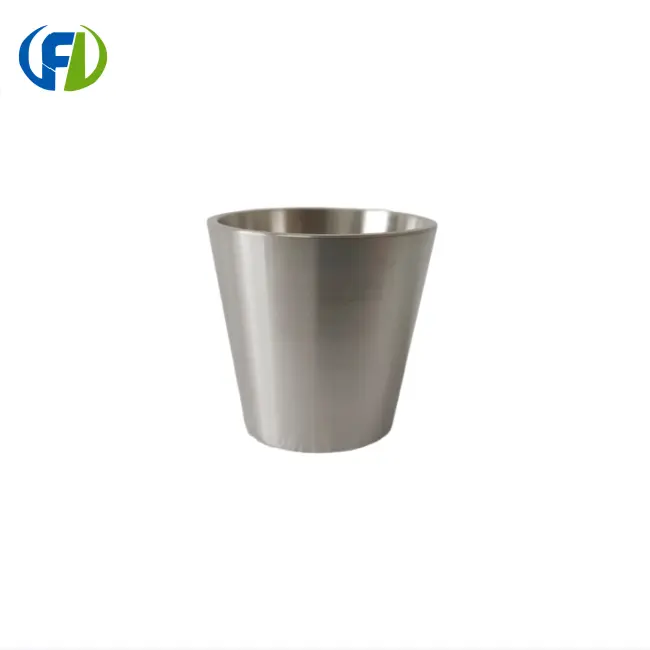

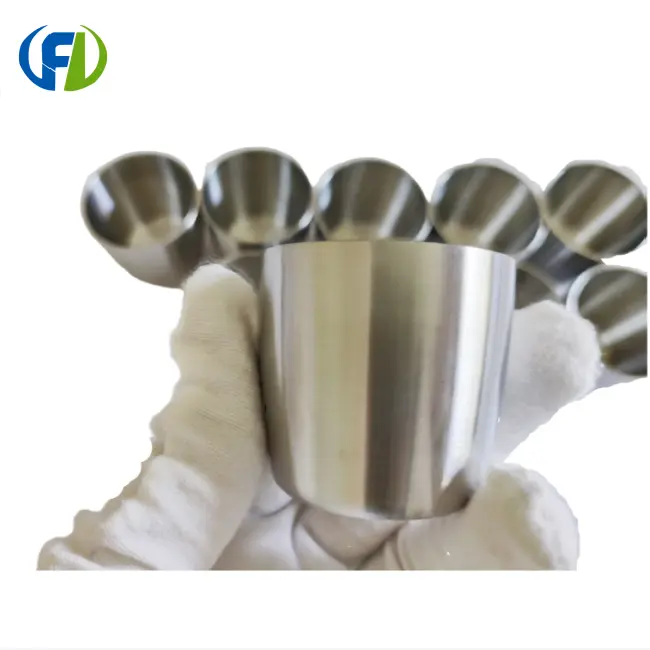

FRL Metal manufactures high-purity Zirconium Crucibles for Laboratory Applications, designed specifically for demanding chemical and metallurgical research. Produced from premium-grade zirconium sponge and compliant with ASTM B551, our crucibles offer exceptional corrosion resistance and thermal stability in controlled environments. Whether you require standard R60702 for general lab use or R60705 for enhanced strength, FRL Metal provides precision-engineered vessels with polished interiors to prevent sample contamination. Available in volumes from 5ml to 50ml, with fully customizable dimensions for specialized experimental setups.
![]() |
![]() |
![]() |

| Parameter | Specification |
| Material Grades | R60702 (Zr702), R60705 (Zr705), R60001, R60901 |
| Standard | ASTM B551 |
| Density | 6.51 g/cm³ |
| Purity (R60702) | Zr+Hf ≥ 99.2% |
| Purity (R60705) | Zr+Hf ≥ 95.5% (Nb 2.0-3.0%) |
| Surface Finish | Polished |
| Available Volumes | 5ml, 10ml, 15ml, 20ml, 25ml, 30ml, 35ml, 40ml, 45ml, 50ml |

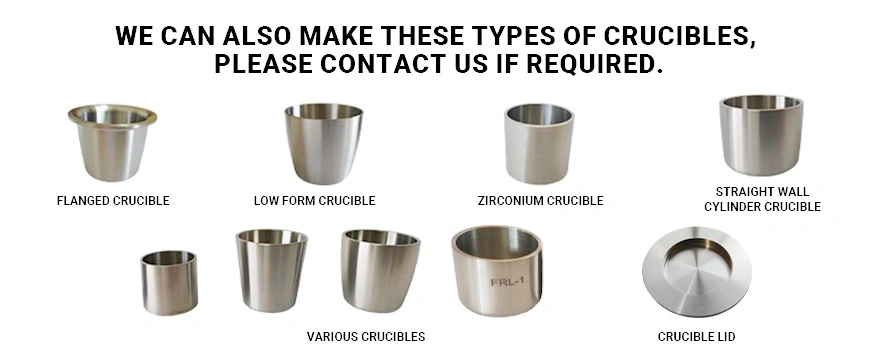

| Crucible Types | Low Form, Flanged Rim, Straight Wall, Tapered, Cylindrical |
Our 【Zirconium Crucible for Lab】 finds applications in various fields:
Every 【Zirconium Crucible】 undergoes strict quality assurance:
We offer tailored solutions to meet your specific requirements:
1. Factory-Direct Pricing: As a specialized zirconium manufacturer, we eliminate middlemen, offering competitive pricing without compromising quality.
2. Strict Raw Material Control: We source only certified zirconium sponge, ensuring consistent purity and traceability for every batch.
3. Flexible Customization: From 5ml micro-crucibles to large industrial vessels, we tailor dimensions, wall thickness, and rim styles to your exact needs.
4. Rapid Turnaround: Standard sizes ship in 5–7 days; custom orders typically within 2–3 weeks.
5. Technical Support: Our metallurgists provide guidance on grade selection, temperature limits, and maintenance to ensure your experimental success.
1. What is the maximum safe operating temperature for zirconium crucibles?
In air, do not exceed 800°C; oxidation becomes significant above 500°C.
2. What is the difference between R60702 and R60705 zirconium crucibles? R60702
is unalloyed zirconium with higher purity (Zr+Hf ≥ 99.2%), offering superior corrosion resistance for most lab applications. R60705 contains 2-3% niobium, providing better mechanical strength and creep resistance at elevated temperatures, with purity Zr+Hf ≥ 95.5%.
3. Are these zirconium metal crucibles or zirconia (ceramic) crucibles?
These are zirconium metal crucibles, not zirconia (ZrO₂) ceramic. Zirconium metal offers different properties: it is ductile, electrically conductive, and has distinct corrosion resistance compared to brittle zirconia ceramics.
4. How should I clean and maintain zirconium crucibles?
Use mild acids (dilute HCl, HNO₃) or ultrasonic cleaning. Avoid strong alkalis and hydrofluoric acid (HF), which attack zirconium. Store in a dry environment to prevent surface oxidation. Inspect for pitting or cracks before each use.
5. Can I order custom sizes or shapes?
Yes. We offer full customization including volume (1ml–10L+), wall thickness, rim style (flanged, rolled, threaded), and surface finish. Contact us with your drawings or specifications for a quote.
6. What is the MOQ and sample policy?
MOQ is 1 piece for standard sizes. Samples are available for evaluation; sample cost may be refunded on first bulk order. Lead time for samples: 3–5 days.
7. What certifications do your zirconium crucibles carry?
All crucibles are manufactured per ASTM B551 and come with a Mill Test Certificate (MTC). Our facility is ISO 9001:2015 certified.

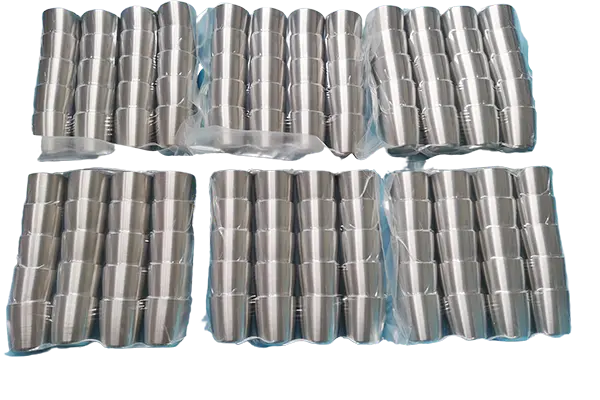

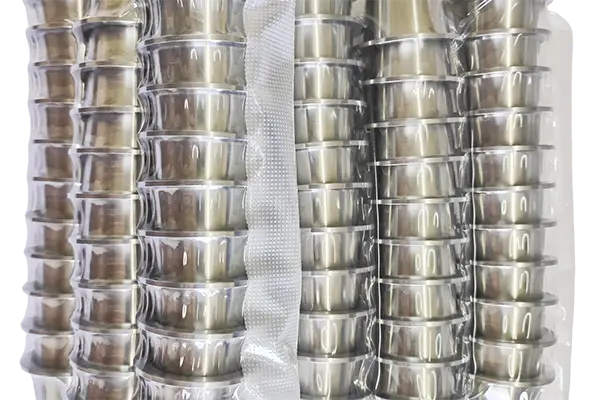

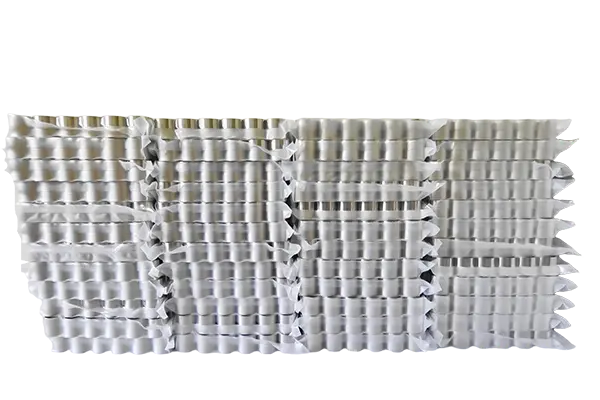

8. How are zirconium crucibles packaged for shipping?

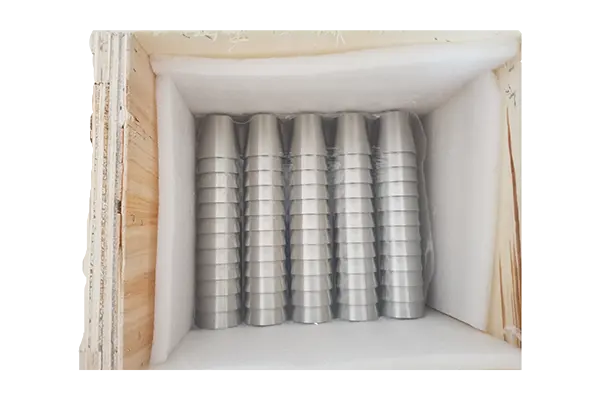

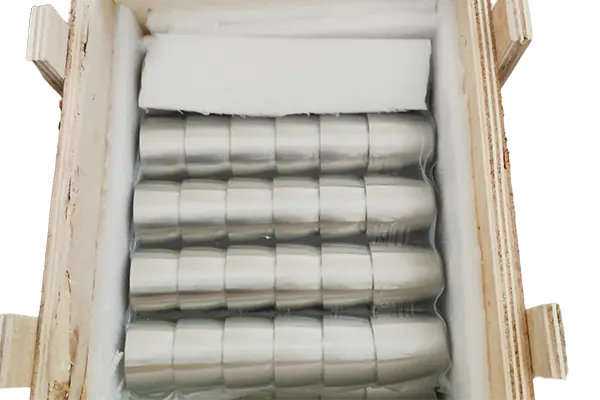

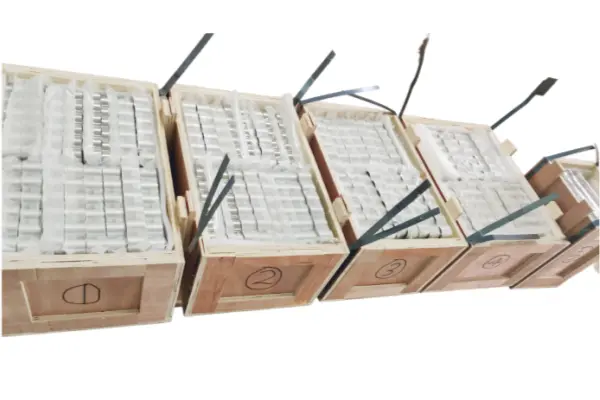

Each crucible is individually protected with foam/bubble wrap to prevent surface damage. Bulk orders are packed in fumigation-free plywood cases. We ship via DHL/FedEx for samples and air/sea freight for larger quantities.
Ready to elevate your research with our premium 【High-Purity Lab Zirconium Crucible R60702】? Contact us today!
Experience the difference with Baoji Freelong's 【High-Purity Lab Zirconium Crucible R60702】 – where precision meets performance in advanced scientific research.
