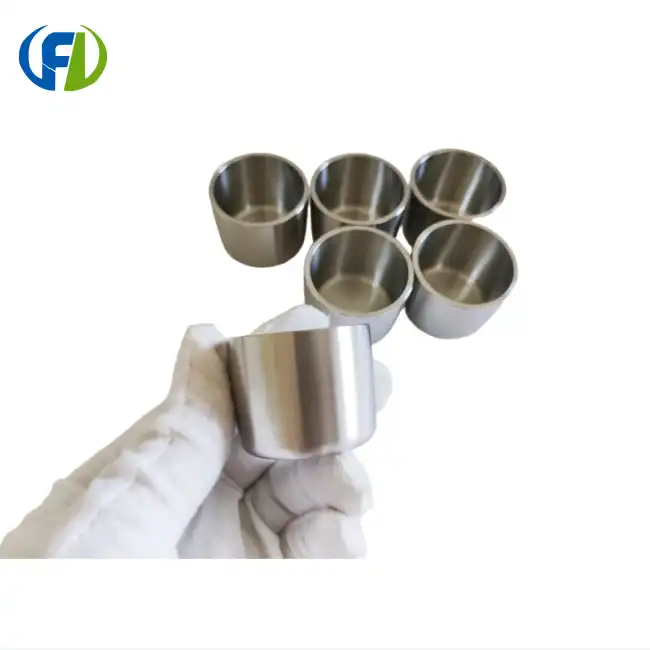

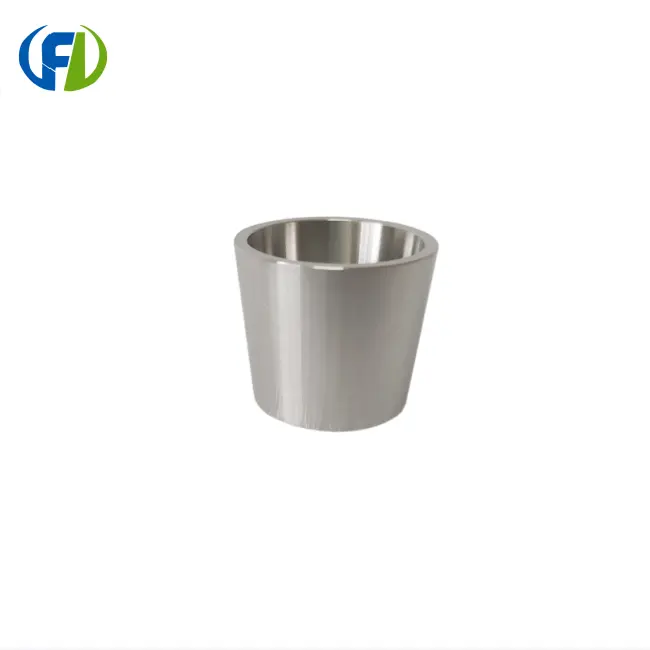

The 10ml Zirconium Crucible manufactured by FRL Metal is engineered for demanding laboratory and industrial applications requiring exceptional chemical inertness and thermal stability. Produced in strict accordance with ASTM B337 and B338 standards, our crucibles are available in premium grades including R60702, R60705, R60001, and R60901 (Zr-2.5Nb). With a precise 10ml capacity and high purity of ≥ 99.95%, these crucibles offer superior resistance to strong acids, alkalis, and molten metals. The optimized wall thickness ensures excellent thermal shock resistance, allowing for rapid heating and cooling cycles without structural degradation. Whether for nuclear material processing, high-purity metal smelting, or advanced ceramic synthesis, FRL Metal provides reliable, customized zirconium crucible solutions backed by ISO 9001 quality management.
| Name | 10ml High Purity Zirconium Crucible (R60702 / R60705) |
| Material | Zirconium & Zirconium alloy |
| Grade | Zr702,Zr705(Also available: R60001, R60901) |
| Purity | R60702: (Zr+Hf ≥ 99.2%) |
| R60705: (Zr+Hf ≥ 95.5% + Nb 2.0-3.0%) | |
| Melting point | about 1855℃ (pure zirconium) |
| Density | 6.51 g/cm³ |
| Type | Low Form, Flanged Rim, Straight Wall, Tapered, Cylindrical |
| Capacity | 10 ml (Custom volumes from 5ml to 50ml available) |
| Wall thickness | 1mm,2mm,or custom. |
| Custom | Yes, process as per customer's drawing. |
| Oxidation resistance | stable in high temperature oxidation environment |
| Working temperature | recommended below 1700℃. |
| Corrosion resistance | good stability in strong acid, strong alkali and other chemical reagents. |
| Thermal shock resistance | good thermal shock resistance, can adapt to rapid cooling and heating. |
![]() |
![]() |
![]() |
![]() |

1. High temperature laboratory: material research, chemical analysis, metallurgical testing and other environments that require high temperature resistance and corrosion resistance.
2. Nuclear industry: used in nuclear material smelting and radioactive material processing.
3. Special metal processing: such as high purity titanium, vanadium, gallium and other metal smelting.
4. Chemical industry: suitable for chemical reactions at high temperatures and the preparation of special synthetic materials.
5. Ceramic manufacturing: preparation and processing of high-purity ceramic materials and oxide.
1. High Purity Material: Manufactured from ≥ 99.95% pure zirconium to prevent contamination in sensitive chemical and metallurgical processes.
2. Exceptional Corrosion Resistance: Highly stable in strong acids, strong alkalis, and aggressive chemical reagents at elevated temperatures.
3. Superior Thermal Shock Resistance: Designed to withstand rapid temperature fluctuations and adapt to fast cooling and heating cycles.
4. High-Temperature Stability: Maintains structural integrity and oxidation resistance in high-temperature environments up to 1700℃.

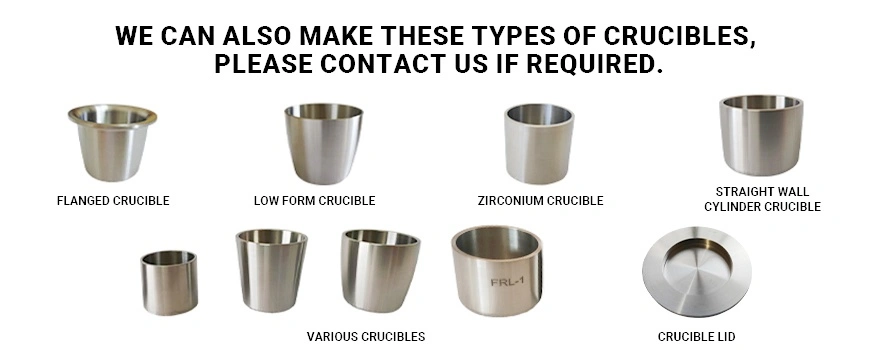

5. Precision Customization: Available in various forms (Low Form, Flanged Rim, Straight Wall, Tapered, Cylindrical) with custom wall thicknesses and volumes.
| Grade | Element composition(%)< | |||||||||
| Zr+Hf | Hf | Fe | Fe+Cr | Sn | H | N | C | Nb | O | |
| R60702 | 99.2 | 4.5 | 0.2 | / | 0.005 | 0.025 | 0.05 | / | 0.16 | |
| R60705 | 95.5 | 4.5 | 0.2 | / | 0.005 | 0.025 | 0.05 | 2.0~3.0 | 0.18 | |
| R60001 | / | 0.010 | 0.150 | / | 0.0050 | 0.0025 | 0.0065 | 0.027 | / | / |
| R60901(Zr-2.5Nb) | / | 0.010 | 0.150 | / | 0.0050 | 0.0025 | 0.0080 | 0.027 | 2.40-2.80 | 0.09-0.15 |
1. Equipment Advantages
There are planing machine, milling machine, annealing furnace, laser cutting machine, bending machine, leveling machine, punching machine and forging hammer, etc.
2. The Product Advantages
Large quantity of spot stock, can provide samples, can be processed and customized according to the drawings.
3. Price Advantages
Source factory production, no middlemen, factory price delivery.
4. Quality Advantages
Provide material report, if customer needs, can provide third party test report.
5.And Service Advantages
Professional customer service throughout the service for you, if you encounter product quality problems can be returned free of charge.

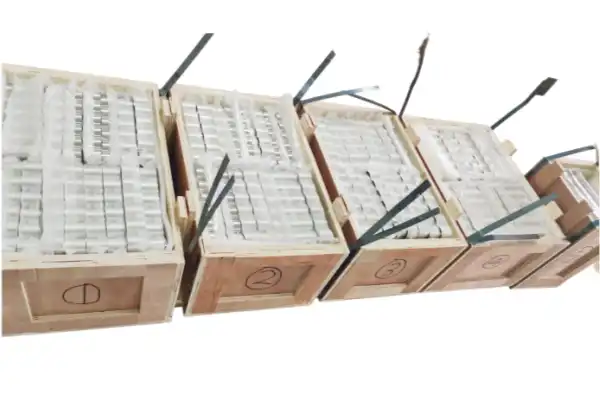

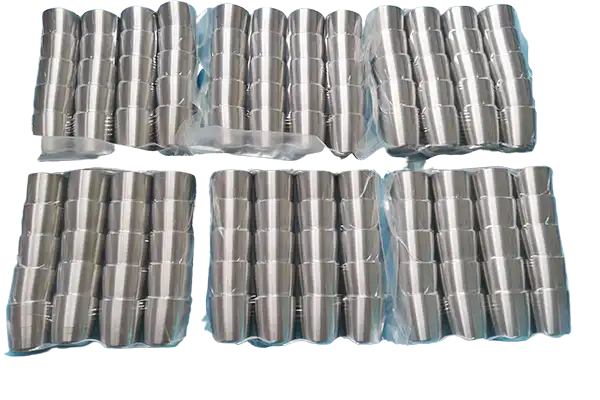

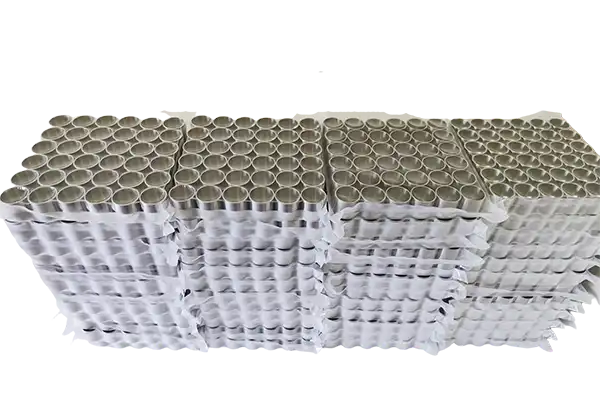

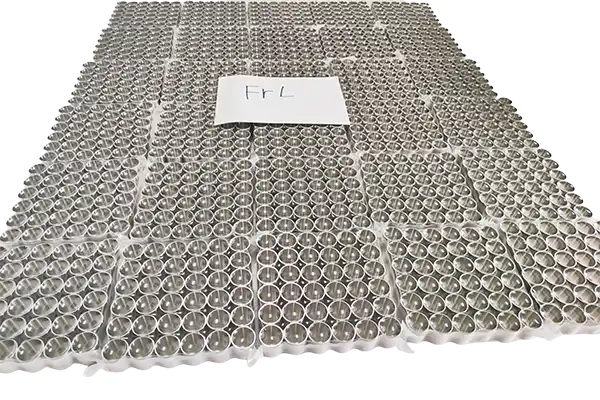

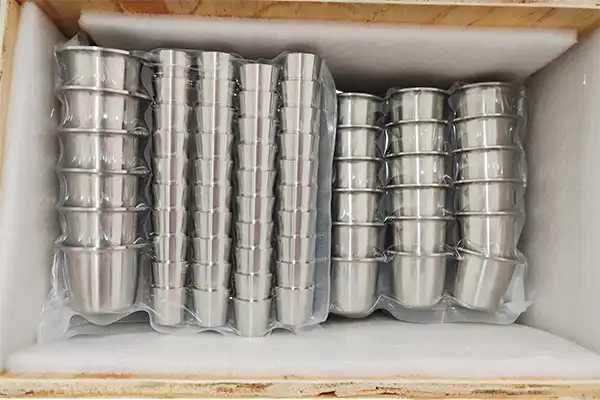

Our Packaging










Q1: What is a 10ml zirconium crucible?
A: A 10ml zirconium crucible is a small-capacity laboratory vessel made from high-purity zirconium (≥ 99.95%). It is specifically designed for high-temperature chemical reactions, metal smelting, and material analysis where extreme corrosion resistance and chemical inertness are required.
Q2: What is the maximum working temperature for this crucible?
A: The recommended maximum working temperature for our 10ml zirconium crucibles is below 1700℃. While pure zirconium has a melting point of approximately 1855℃, operating below 1700℃ ensures optimal oxidation resistance and structural stability.
Q3: What zirconium grades are available for the 10ml crucible?
A: We offer multiple standard grades including R60702 (pure zirconium), R60705, R60001, and R60901 (Zr-2.5Nb alloy). Each grade is manufactured according to ASTM B337/B338 standards to meet specific application requirements.
Q4: Can I customize the capacity and dimensions?
A: Yes. While 10ml is a standard size, we can manufacture custom zirconium crucibles with capacities ranging from 5ml to 50ml. Custom wall thicknesses (1mm, 2mm, or as specified) and specialized shapes are also available based on your technical drawings.
Q5: What is the Minimum Order Quantity (MOQ)?
A: Our MOQ is highly flexible to support both R&D and mass production needs. The minimum order quantity is just 1 piece, and samples are readily available for testing.
Q6: Can you provide material certificates?
A: Absolutely. FRL Metal provides comprehensive Mill Test Certificates (MTC) and EN 10204 3.1 certificates with every shipment, detailing chemical composition, purity levels, and mechanical properties to ensure full material traceability.
Baoji Freelong New Material Technology Development Co., Ltd is headquartered in Baoji City — known as "China's Titanium Valley." As a professional manufacturer and exporter, we specialize in the production, OEM processing, and global sales of zirconium, titanium, nickel, niobium, tantalum and their alloys.
With years of industry experience, we have earned the trust of numerous clients and strategic partners worldwide. Our products have been authorized by leading enterprises across Australia, Korea, Germany, the United States, the United Kingdom, Malaysia, Central Asia, the Middle East, Taiwan and other regions.
At FRL Metal, quality and service are not just commitments — they are our core values. We strictly adhere to international standards (ASTM, AMS, etc.) and maintain ISO 9001 certification throughout our production process. Every batch undergoes rigorous testing to ensure it meets or exceeds customer specifications.
Whether you need standard products or custom solutions, our experienced team is ready to provide professional support from inquiry to delivery. We look forward to building a successful partnership with you.
