5ml R60702 Zirconium Crucible for Laboratory Melting

Origin: Baoji, Shaanxi, China
Brand: FRL Metal
Density: 6.51g/cm³
Surface: Polished surface
Zr + Hf (%): ≥ 99.2%
Grade: R60702
Shape: Crucible (custom shapes available)
Minimum Order Quantity:5pcs
Sample: Available
Packaging Details:Plywood case
Delivery Time: 5~7days
Payment Terms: T/T
Product Description

Product Description Introduction

The 5ml R60702 (Gr.2) zirconium crucible from FRL Metal is designed for high-purity laboratory melting and high-temperature applications. Manufactured from commercially pure zirconium in compliance with ASTM B551 standards, this crucible features a polished surface, a density of 6.51 g/cm³, and excellent corrosion resistance in acids, alkalis, and molten salts. With a capacity of 5 ml and an MOQ of just 5 pieces, it is ideal for research laboratories, analytical testing, and small-batch metal melting operations.

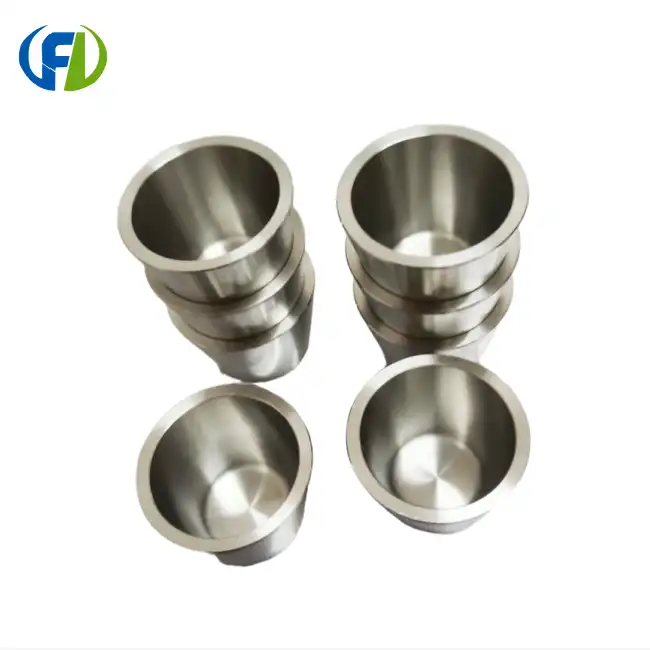

Images of Zirconium Crucibles

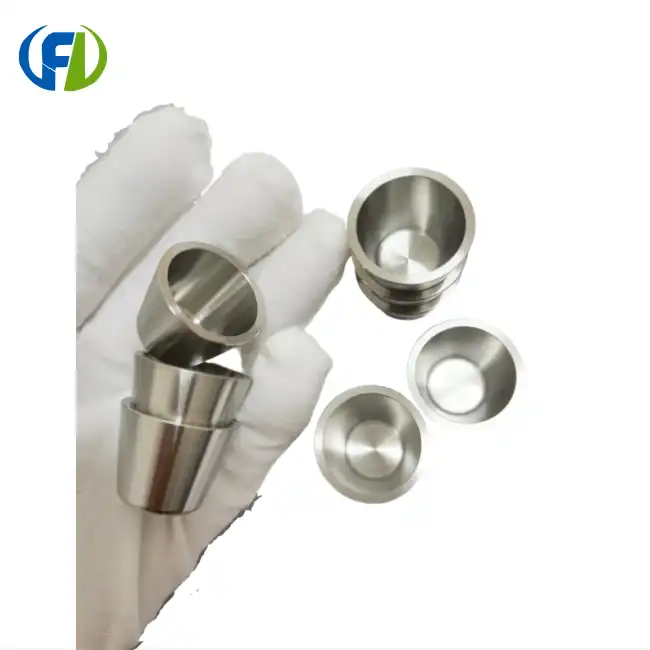

5ml R60702 Zirconium Crucible  lab crucible 5ml R60702 Zirconium Crucible manufacturer 5ml R60702 Zirconium Crucible suppliers Customized  5ml R60702 Zirconium Crucible



Chemical Composition Table — R60702 (Gr2) Zirconium

Grade

Standard

Zr + Hf (%)

Hf (%)

Fe (%)

O (%)

H (%)

N (%)

Notes

R60702 (Gr2)

ASTM B551 / ASTM F67

≥ 99.2

≤ 4.5

≤ 0.20

≤ 0.16

≤ 0.005

≤ 0.025

Low hafnium content for improved corrosion resistance

5ml zirconium crucible instructions

Zirconium crucibles are fragile! Handle with care during unpacking, shipping, handling and cleaning.

Zirconium exhibits excellent corrosion resistance in most organic and inorganic acids, salt solutions, strong bases and a few molten salts. Effective all-purpose crucible for melting using sodium carbonate and sodium peroxide.

Heating zirconium produces a milky white passive oxide film, a corrosion barrier that is stable under both reducing and oxidizing conditions. Check for micro-cracks before heating the crucible and replace with a new zirconium crucible.

Do not over load the zirconium crucible with material, this increases the likelihood of uneven heating.

Argon or helium zirconium crucibles can be heated to 1450°C under vacuum, otherwise use in air is limited to 450°C to 500°C.

It is strongly recommended to use slow heating and cooling rates to minimize thermal shock on the crucible. When heating up, special attention should be paid to two sensitive temperature ranges: 100°C~300°C and 1050°C~1200°C period not exceeding 3°C/MIN. The rate may be faster in other temperature ranges, but less than 5°C/MIN is recommended.

Do not take the zirconium crucible directly out of the furnace at high temperatures or it may break. It is recommended to remove from heat source when the temperature is below 100°C.

Zirconium crucibles should not be heated by torches or furnaces that cannot control the rate of temperature change. Uneven heating can cause cracks!

Zirconium crucibles in various sizes

Zirconium crucibles in various sizes

Images of zirconium crucibles in laboratory use

Images of zirconium crucibles in laboratory useImages of zirconium crucibles in laboratory use

Our Advantage

Advanced Manufacturing Equipment

We use precision CNC machining, vacuum annealing furnaces, and specialized zirconium forming equipment to ensure dimensional accuracy and consistent product quality across every batch.

Strict Quality Control

Every zirconium crucible undergoes thorough inspection before shipment, including dimensional checks, surface quality assessment, and material certification. Mill Test Certificates are provided for full traceability.

Competitive Factory Pricing

As a direct manufacturer based in Baoji, Shaanxi — China’s leading titanium and zirconium production hub — we offer competitive factory-direct pricing without intermediary markups.

Certified Materials & Testing

All raw materials comply with ASTM B551 standards. We provide full chemical composition reports and can arrange third-party testing upon request.

Responsive Technical Support

Our team provides pre-sale technical consultation to help you select the right grade, size, and specifications for your application. Custom crucibles are available based on your drawings or weight requirements.



FAQ

Q1: What is the maximum operating temperature for a zirconium crucible?

A1: Under vacuum or inert atmosphere (argon/helium), zirconium crucibles can be heated up to 1,450°C. In air, the maximum safe operating temperature is limited to 400–450°C due to oxidation.

Q2: Which chemicals are compatible with zirconium crucibles? A2: Zirconium offers excellent corrosion resistance in most organic and inorganic acids, salt solutions, strong bases, and certain molten salts. It is particularly effective for melting with sodium carbonate and sodium peroxide. Avoid use with hydrofluoric acid and strong oxidizing agents at elevated temperatures.

Q4: What is the difference between R60702 (Gr.2) and other zirconium grades?

A4: R60702 (Gr.2) is a commercially pure zirconium grade with low hafnium content, offering superior corrosion resistance and good formability. It is the most commonly used grade for laboratory crucibles. Higher grades may contain alloying elements for specific mechanical properties but may have reduced corrosion resistance.

Q6: Does this zirconium crucible comply with ASTM standards? A6: Yes. Our R60702 zirconium crucibles are manufactured in compliance with ASTM B551 and standards.

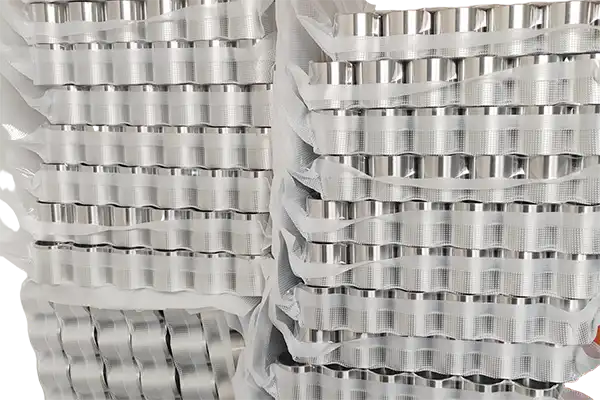

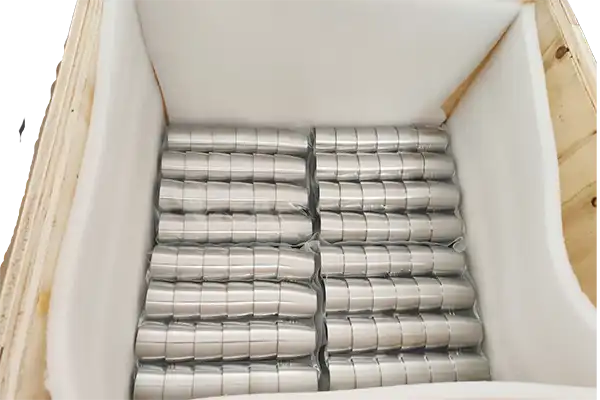

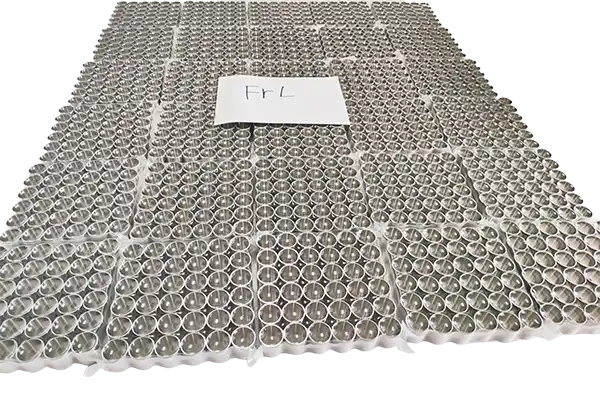

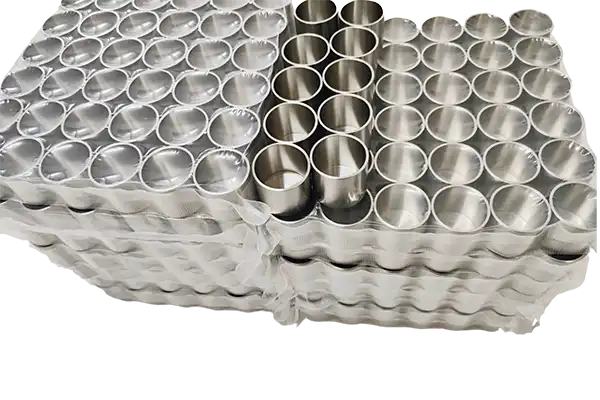

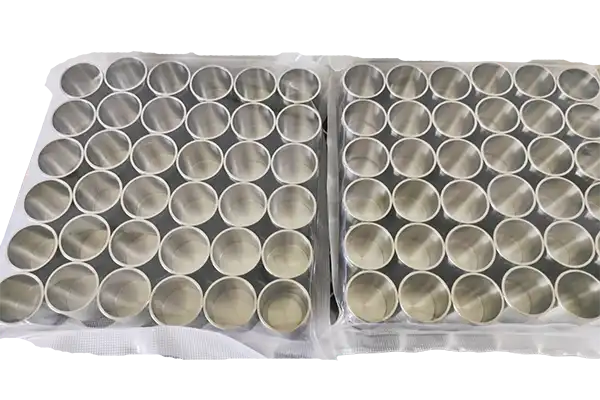

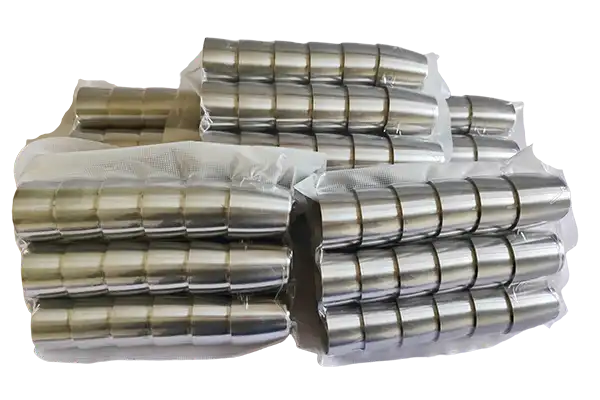

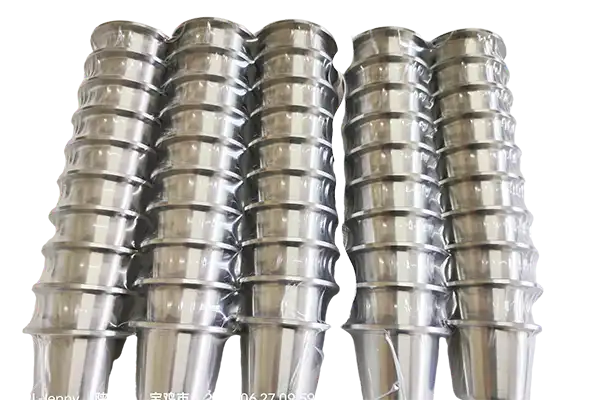

Our Packaging
