1 mm Thick Zirconium Plate / Sheet (ASTM B551)

Origin: Baoji, Shaanxi, China
Brand: FRL Metal
Density: 6.51g/cm³
Grade: Zr702 (R60702), Zr704 (R60704), Zr705 (R60705), Zr-2, Zr-4, R60804, R60901, R60001
Standard: ASTM B551
Certification: ISO 9001
Delivery Time: 5-7days
Payment Terms: T/T
Packaging Details:Plywood case
Product Description

Product Introduction

FRL Metal provides premium 1mm thick zirconium plates and sheets, precision-manufactured to meet the rigorous demands of highly corrosive and high-temperature environments. Strictly conforming to the ASTM B551 standard, our 1mm Zr plates are available in multiple grades, including Zr702 (UNS R60702), Zr704 (UNS R60704), and Zr705 (UNS R60705), as well as specialized grades like R60804, R60901, and R60001. With a pure zirconium content of up to 99.2% and a density of 6.51 g/cm³, the 1mm thickness offers an optimal balance of structural integrity and weight efficiency. Zirconium exhibits exceptional corrosion resistance against organic and inorganic acids, alkalis, and saline solutions, making it superior to many stainless steels and titanium alloys in specific chemical processing applications. Furthermore, its excellent biocompatibility and high melting point (1855°C) make it an indispensable material for advanced medical implants and aerospace components. At FRL Metal, we ensure that every 1mm zirconium sheet undergoes strict dimensional tolerance control and surface quality inspection, guaranteeing reliable performance for your critical engineering projects.

Product picture display

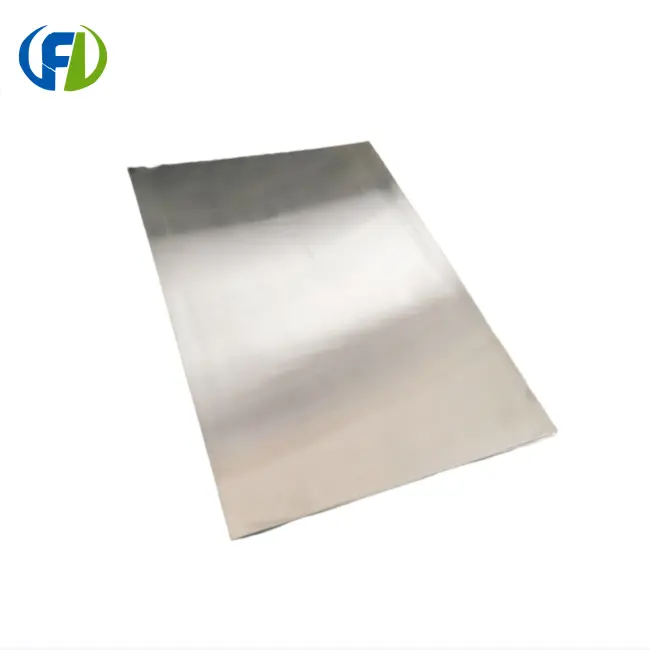

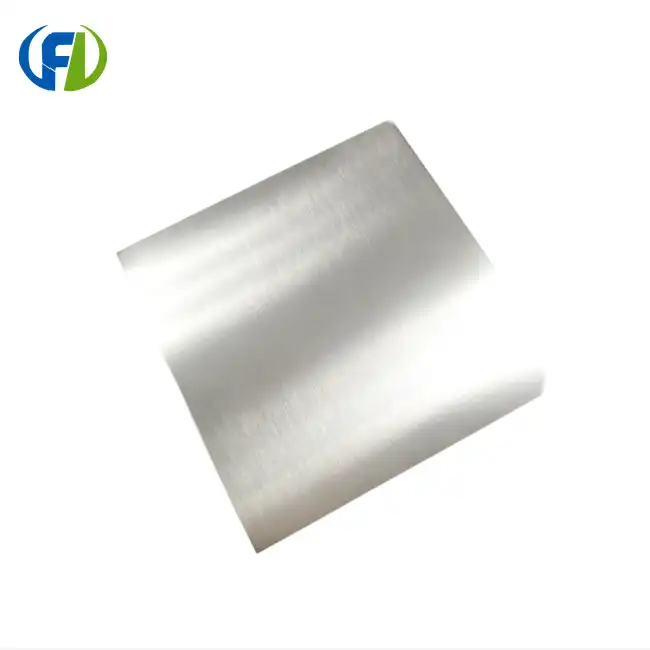

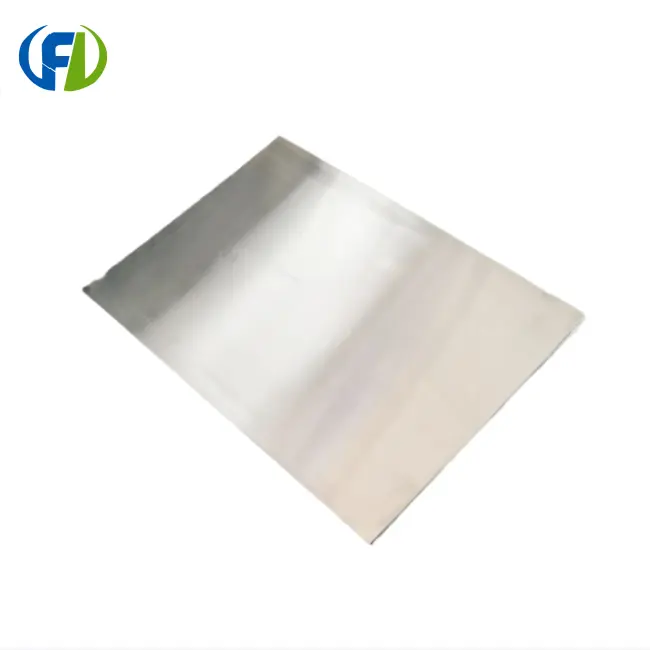

1mm Thick Zirconium Plate Zr702 ASTM B551 - FRL Metal Thickness 1mm Zr Plate factory Customized Thickness 1mm Zr Plate

Chemical Composition

Grade Element composition(%)<
Zr+Hf Hf Fe Fe+Cr Sn H N C Nb O
R60702 99.2 4.5   0.2 / 0.005 0.025 0.05 / 0.16
R60704 97.5 4.5   0.20~0.40 1.0~2.0 0.005 0.025 0.05 / 0.18
R60705 95.5 4.5   0.2 / 0.005 0.025 0.05 2.0~3.0 0.18
R60001 / 0.010  0.150  / 0.0050  0.0025 0.0065 0.027 / /
R60804(Zr-4) / 0.010  0.18-0.24 0.28-0.37 1.2-1.70 0.0025 0.0065 0.027 / 0.09-0.16
R60901(Zr-2.5Nb) / 0.010  0.150  / 0.0050  0.0025 0.0080  0.027 2.40-2.80 0.09-0.15

Mechanical Properties

Property Zr702 (R60702) Zr704 (R60704) Zr705 (R60705)
Tensile Strength ≥ 345 MPa ≥ 380 MPa ≥ 450 MPa
Yield Strength ≥ 240 MPa ≥ 275 MPa ≥ 330 MPa
Elongation ≥ 20% ≥ 18% ≥ 15%
Hardness (HB) ≤ 120 ≤ 130 ≤ 150


Key Features

1. Superior Corrosion Resistance: Exhibits outstanding resistance to hot alkaline solutions, hydrochloric acid, and sulfuric acid, outperforming titanium and stainless steel in highly aggressive chemical environments.

2. Excellent High-Temperature Stability: Maintains structural integrity and oxidation resistance at elevated temperatures up to 1855°C, ensuring long-term reliability in extreme thermal conditions.

3. Precision 1mm Thickness Tolerance: Manufactured with advanced rolling technology to ensure strict thickness uniformity and flatness, facilitating seamless welding, forming, and machining processes.

4. High Strength-to-Weight Ratio: Offers mechanical strength comparable to certain stainless steels while maintaining a low density of 6.51 g/cm³, ideal for weight-sensitive aerospace and medical applications.



Applications

1. Chemical Processing Industry: Widely utilized for fabricating heat exchangers, evaporators, reaction vessels, and piping systems handling highly corrosive acids and alkalis.

2. Medical Device Manufacturing: Selected for surgical implants, artificial heart valves, and pacemaker casings due to its exceptional biocompatibility and non-toxic nature.

3. Aerospace & Defense: Applied in spacecraft structural components, missile casings, and high-temperature engine parts requiring high strength and thermal stability.

4. Nuclear Power Generation: Used as cladding material for nuclear fuel rods and structural components in reactors due to its low thermal neutron absorption cross-section.

5. Electroplating & Metallurgy: Employed as anode baskets, heating coils, and crucibles in electroplating baths and vacuum furnace fixtures due to its resistance to molten metals and slags.



Why Choose FRL Metal

1. Advanced Manufacturing Equipment: Equipped with state-of-the-art vacuum arc remelting (VAR) furnaces and precision cold rolling mills to guarantee superior metallurgical quality.

2. Comprehensive Product Range: Offering a full spectrum of zirconium grades (Zr702, Zr704, Zr705, R60804, etc.) in various thicknesses, widths, and customized dimensions.

3. Competitive Factory-Direct Pricing: As a direct manufacturer based in Baoji, China, we eliminate middlemen to provide highly competitive pricing without compromising quality.

4. Rigorous Quality Assurance: Fully ISO 9001 certified with in-house testing laboratories providing Mill Test Certificates (MTC) for every batch, ensuring traceability and compliance.

5. Responsive Professional Service: Dedicated technical support team available to assist with material selection, custom processing requirements, and fast quotation turnaround.



FAQ

Q1: What is the exact thickness tolerance for your 1mm zirconium plates?

A: Our 1mm Zr plates are manufactured with strict dimensional controls, typically maintaining a thickness tolerance of ±0.05mm to ensure precision for your fabrication needs.

Q2: How do I choose between Zr702, Zr704, and Zr705 for my application?

A: Zr702 (R60702) offers the highest corrosion resistance and ductility, making it ideal for chemical processing. Zr704 provides a balance of strength and corrosion resistance, while Zr705 (R60705) offers higher mechanical strength for structural applications.

Q3: Can you provide custom surface finishes for 1mm zirconium sheets?

A: Yes, we offer various surface finishes including pickled, sandblasted, polished, and bright annealed surfaces to meet specific aesthetic or functional requirements.

Q4: Do you supply Mill Test Certificates (MTC) with the 1mm Zr plates?

​​​​​​​ A: Absolutely. Every shipment is accompanied by a comprehensive MTC detailing chemical composition, mechanical properties, and dimensional inspections, fully compliant with ASTM B551 standards.

Q5: What is the minimum order quantity (MOQ) for 1mm thick zirconium plates?

A: We support flexible ordering to accommodate both prototype and mass production needs. Please contact our sales team with your specific dimensions and quantity for a tailored quote.

Q6: Are R60804 and R60901 grades available in 1mm thickness?

A: Yes, FRL Metal can supply specialized UNS grades including R60804, R60901, and R60001 in 1mm thickness. Please inquire in advance as these grades may require custom production scheduling.
